Summary of Contents for TASKING iC5700 CI BlueBox
- Page 1 CI BlueBox HARDWARE USER MANUAL V1.6, July 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
Contents Package content ....................4 Specifications ....................5 Device description .................... 6 Hardware Setup and Configuration ..............9 Accessories ....................10 Declarations ....................12 User Notes ...................... 13 www.tasking.com... -
Page 4: Package Content

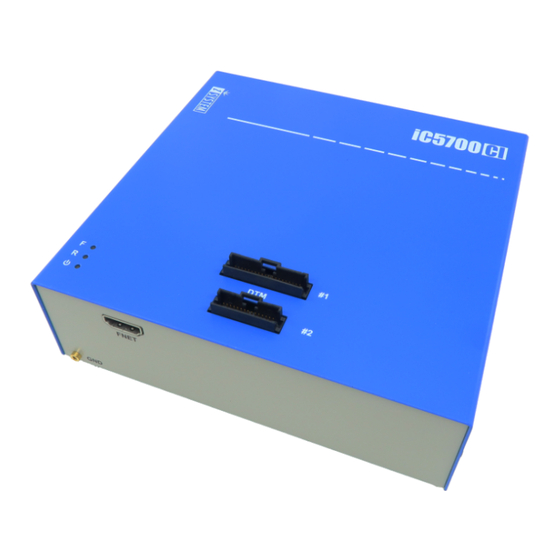

Package content iC5700 CI BlueBox On-Chip Analyzer is a hardware platform which allows hardware debugging and testing a wide range of embedded microcontroller platforms that are based on a variety of processor architectures and is implemented into Continuous Integration (CI) infrastructures. -
Page 5: Specifications
10 kOhm pull-down resistor TMS and TDI debug 10 kOhm pull-up resistor signals 1k Ohm pull-up resistor, buffer-driven to prevent current flow into an RESET unpowered iC5700 from a powered target board TAR_VREF (target 100 kOhm input impedance reference voltage) pin www.tasking.com... -
Page 6: Device Description
Device description www.tasking.com... - Page 7 Contact Plug (Banana Plug) if building a longer or a replacement cable on your own. D – The FNet Port provides an interface for the TASKING’s range of ADIO & CAN/LIN Accessories. E – Reset (from revision R13). The Reset button loads the default firmware.
- Page 8 Consult with Technical support before attempting to use any other accessory. Differences between BlueBox CI and BlueBox BlueBox CI BlueBox Business Model Subscription Perpetual or Subscription System price Debug & Test functionalities via winIDEA GUI Debug & Test functionalities via SDK APIs www.tasking.com...
-
Page 9: Hardware Setup And Configuration
5. Connect the ribbon cable to the BlueBox connector(s). 6. Connect the Debug Adapter to the Target. To disconnect squeeze the two metal latches on the ribbon cables. 7. Power on procedure: · BlueBox · Target 8. Install winIDEA and create a new workspace. www.tasking.com... -
Page 10: Accessories
Active Probes - Enable higher debug and trace performance, compact size, positioned as far as 10 m away from the BlueBox. o Add-On modules - Enable parallel debugging of multiple targets, monitoring of network traffic and monitoring and manipulation of analog and digital signals. www.tasking.com... - Page 11 More information about our products via sales@tasking.com. www.tasking.com...
-
Page 12: Declarations
Declarations www.tasking.com... -
Page 13: User Notes
User Notes This page is intentionally left blank. www.tasking.com... - Page 14 This page is intentionally left blank. www.tasking.com...
- Page 15 This page is intentionally left blank. www.tasking.com...
- Page 16 Visit our website for: · Support - isystem.com/support · Tutorials - isystem.com/start · Knowledge Base - kb.isystem.com www.tasking.com www.tasking.com...
