CHARACTERISTICS OF THE CABLES:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial
cable where the pins 2 and 3 are crossed).
It is recommended that the RS232C Cable not exceed 15 meters.

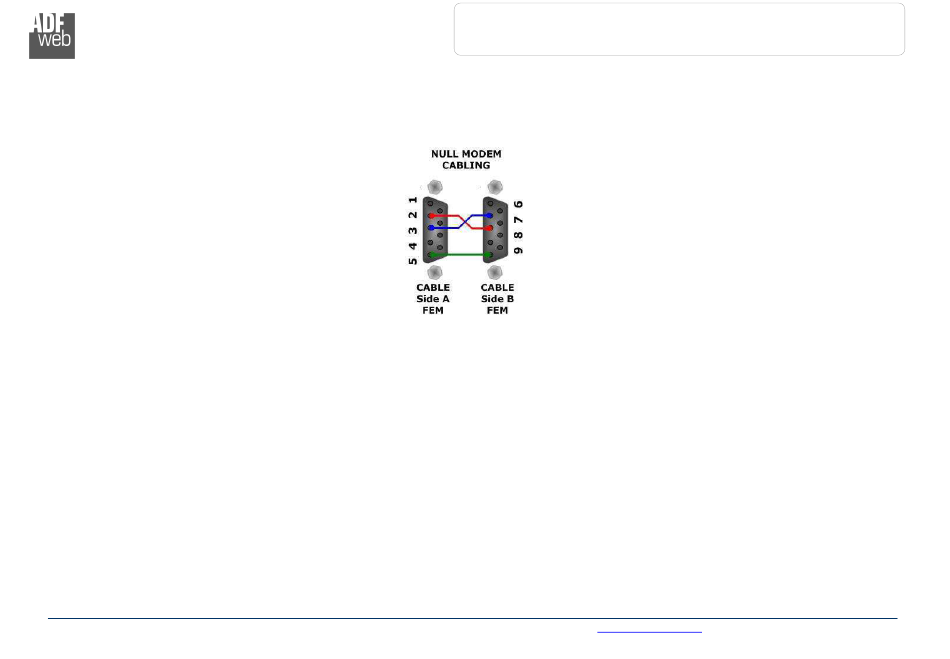

Figure 15: Null modem cabling
