DEVICENET NETWORK:

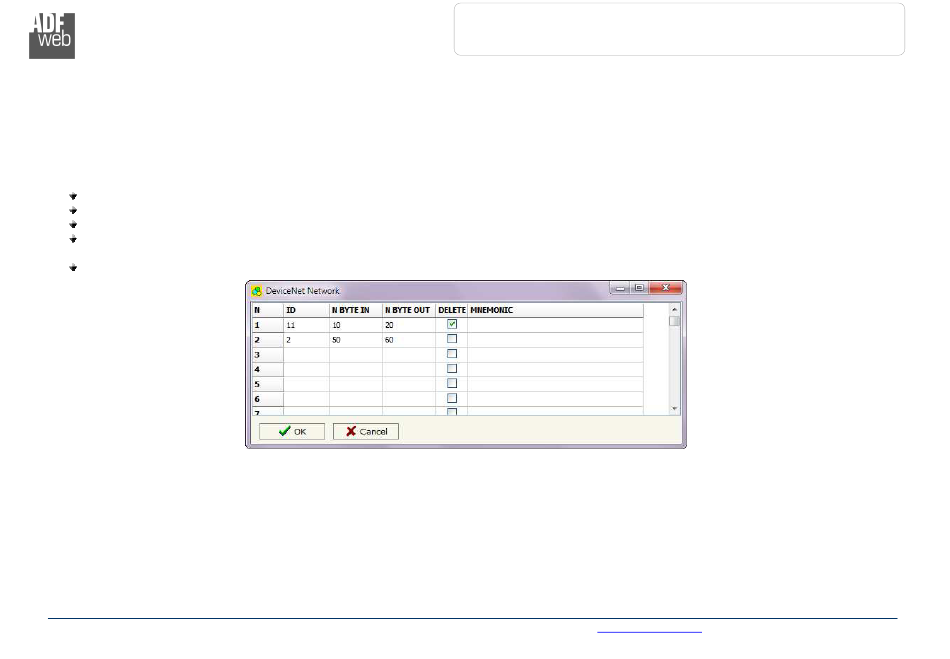

By pressing the "DeviceNet Network" button from the main window for SW67153 (Fig. 4) the window "DeviceNet Network" appears (Fig.
6).
Here it is possible to define the Slaves DeviceNet Devices with their ID, number of Input and number of Output bytes.
The data of the columns have the following meanings:
In the field "ID" the ID of a slave DeviceNet device is defined;
In the field "N BYTE IN" the number of input byte of the slave DeviceNet is defined;
In the field "N BYTE OUT" the number of output byte of the slave DeviceNet is defined;
By checking the field "DELETE" it is possible to clear the data received from a Slave interrogated if it is disconnected. In this way If a
slave DeviceNet is not present the data of CAN frames are cleared (putted to the value 0);
In the field "MNEMONIC" is possible to insert a description. It isn't necessary compiling this field, is only a label.
