For optimum mixing performance where the hot and cold pressures are not equal, regulating
valves should be installed directly upstream of the tap so that the water supply pressures can be
regulated and equalised.
© Intatec Ltd 2013

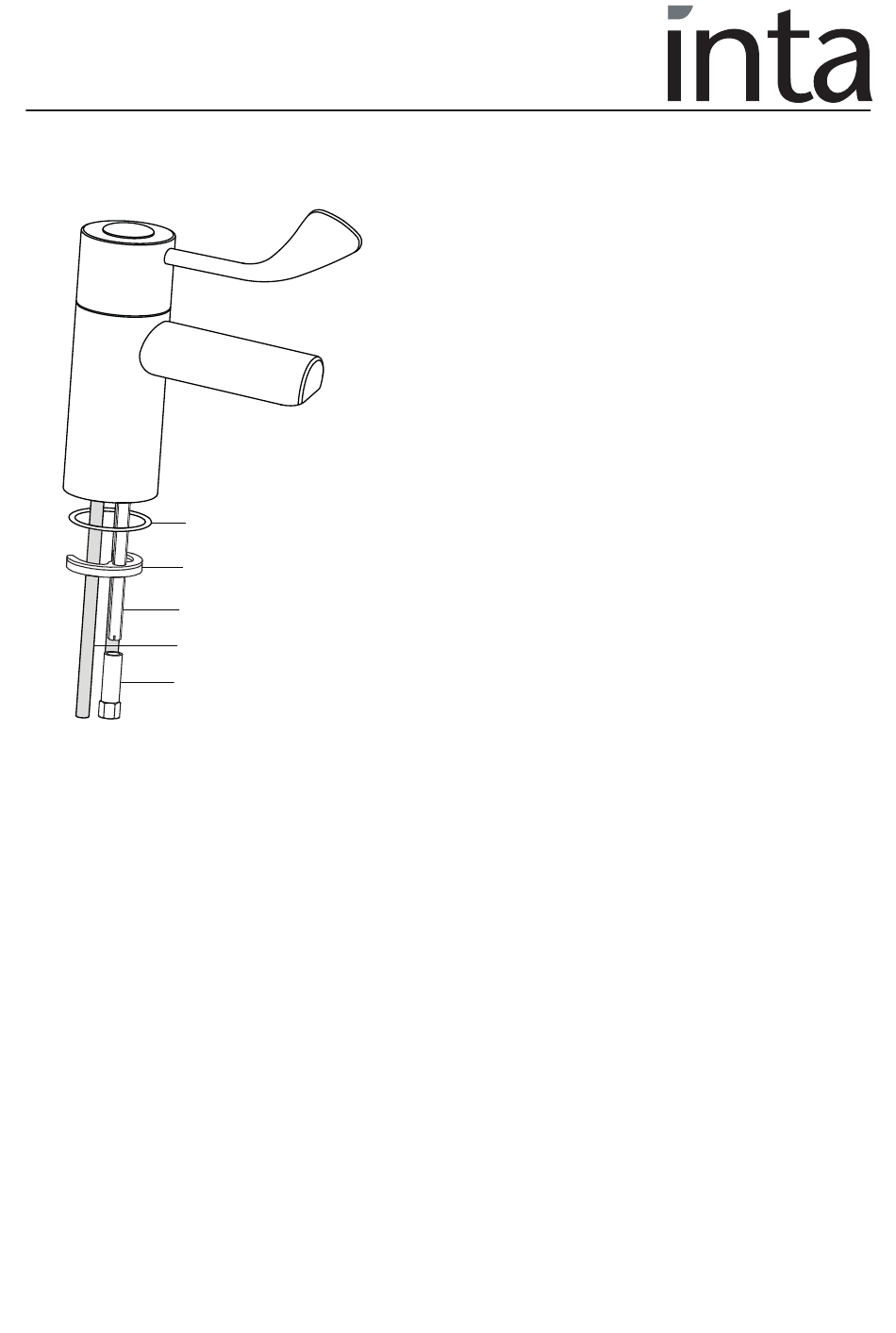

The Intatherm thermostatic basin tap is designed for
installing on one hole basins.
This tap is supplied with two 350mm long copper tails
already fitted to the tap. Each tail is supplied ready to
connect to the compression connector with integral
check valve and filter (13).
Screw the threaded rod (10) into the threaded hole in
the base of the body taking care not to over tighten.
The cold supply must be connected to the
right hand side and the hot to the left hand
side of the mixer when viewed from the
front.
Ensure that the 'O' ring seal (8) is located in the base
of the tap prior to fitting the mixer to the basin.
Once in place using the horse shoe retaining plate (9)
secure in position, taking care not to over tighten the
retaining nut (11).
Connect the compression connectors (13) to the tails
and to the hot and cold supplies remembering which
was connected to the hot inlet and ensure all joints are
water tight.
