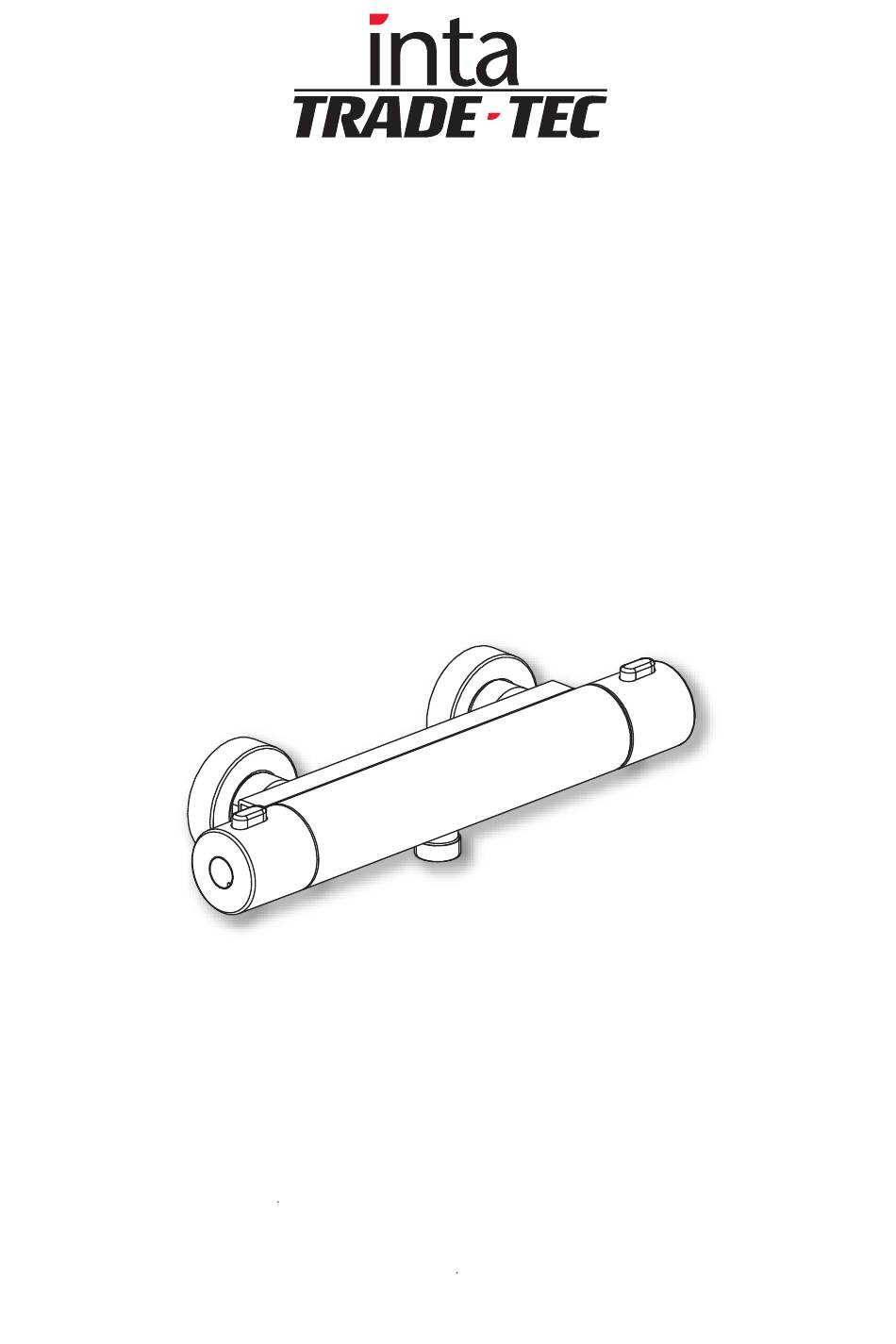

Thermostatic Bar Shower
with Flexible Slide Rail and Fast Fix Brackets
Installation and Maintenance Instructions
In this procedure document we have endeavoured to make the
information as accurate as possible
We cannot accept any responsibility should it be found that in
any respect the information is inaccurate or incomplete or
becomes so as a result of further developments or otherwise
© Intatec Ltd. 2017
TR10032CP
Intatec Ltd
Airfield Industrial Estate
Staffordshire
ST18 0PF
Tel: 01889 272 180
Fax: 01889 272 181
email: sales@intatec.co.uk
web: www.intatec.co.uk
Hixon
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Inta TRADE-TEC TR10032CP
Summary of Contents for Inta TRADE-TEC TR10032CP
- Page 1 Thermostatic Bar Shower with Flexible Slide Rail and Fast Fix Brackets TR10032CP Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the information as accurate as possible Tel: 01889 272 180 We cannot accept any responsibility should it be found that in Fax: 01889 272 181...
- Page 2 Introduction This installation guide has been produced for the Inta Trade-Tec shower mixing valve. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation is carried out by an approved installer.
-
Page 3: Technical Data
Components Item Qty Component Item Qty Component Body Filter (fitted into connector) Union nut Circlip (fitted into connector) O-ring (fitted into body) Concealing plate Connector (fitted into body) Compression face Sealing washer Olive Check valve (fitted into connector) Wall bracket Technical Data This thermostatic shower valve is suitable for installations on all types of plumbing systems, including gravity supplies, fully pumped, modulating combination boiler, unvented... -
Page 4: Pumped Systems
Unvented Mains Pressure System Most unvented systems use an inlet manifold located directly after the pressure reducing valve. It is recommended that the cold supply be taken from one of the outlets of the manifold directly to the shower as an independent supply. -
Page 5: Gravity System
Modulating Combi Boiler / Instantaneous Gas Water Heater The drawing shows a typical installation of a shower valve in conjunction with a combination boiler. Combi boilers will produce a constant flow of water at a temperature within its operating range. However we recommend that the system should supply hot water in excess of 60˚C. -
Page 6: Site Preparation
Site Preparation It is important to plan the installation thoroughly to suit site conditions before commencing. • Before commencing the installation ensure site conditions are suitable. • The shower mixing valve is designed for concealed pipework, whether in a solid or studded wall with the supply pipes coming from below, above, the side or through the wall. - Page 7 Fitting the Brackets • Apply silicone sealer to the back of both wall brackets, fit over the 2 protruding copper pipes, press to the wall and secure both brackets with 2 counter sunk screws. • Add the olives and then the compression faces and tighten until water tight joints are made. •...
- Page 8 Calibration The Trade-Tec shower valve has a factory set outlet temperature of 38˚C via the security setting. However, the calibration point MUST be checked and re-set as necessary to suit site conditions. Care must be taken when re-calibrating the valve as INCORRECT CALIBRATION CAN CAUSE INJURY.
- Page 9 Thermostatic Cartridge Replacement • Isolate both the hot and cold water supplies • Remove the cover cap (2), retaining screw (3), temperature control knob (4), cover plate (5) control knob bush (6) and temperature stop ring (7). • Using a suitably sized spanner unscrew the cartridge (8) from the valve body. - •...
- Page 10 Aftercare The Inta Trade-Tec shower mixing valve has a high quality finish and should be treated with care. An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required.
-
Page 11: Problem Solving
Servicing The Trade-Tec shower valve is designed to provide a high level of thermal performance to ensure the life cycle is as long as possible; Valves should be serviced annually which should include the following: 1 Cleaning the independent inlet strainers. 2 Cleaning and servicing the thermostatic cartridge - the complete cartridge must be removed. - Page 12 Riser Rail - Dimensions ½” Connection Riser Rail Handset Wall Bracket Hose ½” Sealing Washer ½” Connection © Intatec Ltd 2017...
-
Page 13: Slide Rail - Installation
Slide Rail - Installation Large & Small Diameter Holes The screws and wall plugs supplied are only suitable for use in solid walls. If the wall is plaster board or soft building block use special wall plugs obtainable from most DIY stores. Ensure there are no supply pipes or cables where you intend to drill. - Page 14 Slide Rail - Installation Mark round the upper wall brackets with a removeable marker onto the wall. Remove the wall bracket from the riser rail, position onto the wall within the markings and using the hole as a template, drill a 6mm diameter hole. Fix the upper wall bracket to the wall using the shorter screw and secure.
- Page 15 Notes © Intatec Ltd 2017...
- Page 16 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk ©...
Need help?
Do you have a question about the TRADE-TEC TR10032CP and is the answer not in the manual?
Questions and answers
How much should the copper pipe stick out of the finished wall
The copper pipes should protrude 41.8 mm from the finished wall.
