Installation and Maintenance Instructions
In this procedure document we have endeavoured to make the
information as accurate as possible.
We cannot accept any responsibility should it be found that in
any respect the information is inaccurate or incomplete or
becomes so as a result of further developments or otherwise.
© Intatec Ltd. 2014

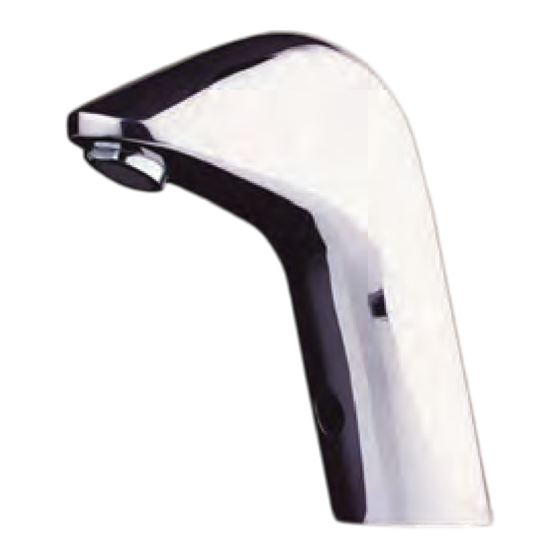

Infra Red Basin Tap
IR120CP & IR121CP
Intatec Ltd
Airfield Industrial Estate
Staffordshire
ST18 0PF
Tel: 01889 272 180
Fax: 01889 272 181
email: sales@intatec.co.uk
web: www.intatec.co.uk
Hixon
Advertisement
Table of Contents
Related Manuals for Inta IR120CP
Summary of Contents for Inta IR120CP

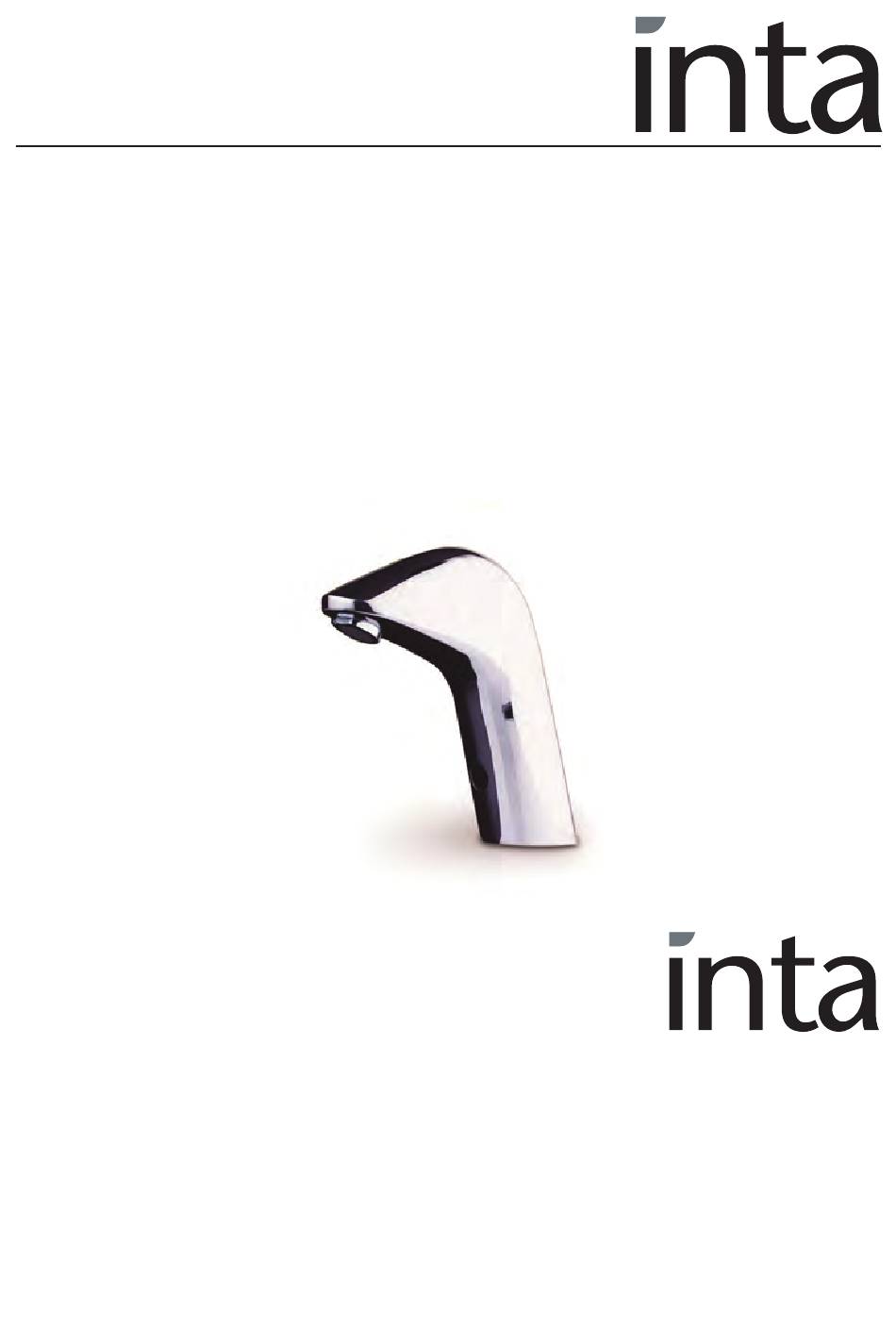

- Page 1 Infra Red Basin Tap IR120CP & IR121CP Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the information as accurate as possible. Tel: 01889 272 180 We cannot accept any responsibility should it be found that in...
- Page 2 Introduction This installation guide has been produced for the IR120CP & IR121CP infra red basin taps. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation of any Inta product is carried out by an approved installer.
- Page 3 Technical Data Power specification: 9V low voltage system Power source - IR120CP: 6 x 1.5V AA batteries IR121CP: 240V conversion kit Recommended water pressure: 1.0 to 8.0 bar (14.5 to 116 psi) With water pressure in excess of 8 bar use with a pressure reducing valve.
- Page 4 Installation Step 2 Installing the tap 4. Secure the tap to the basin or work surface using the retaining nut and washer. Step 3 Connecting the water supply 1. A service ball valve must be installed in the supply pipe to enable the tap to be isolated for servicing should it be required.
- Page 5 Sensor Range The tap is supplied with a self adjusting sensor, the optimum sensor Remove range will be set automatically after installation. Protective Sticker • Before connecting the power supply check that there are no objects or persons in front of the sensor. •...
- Page 6 Maintenance Aftercare Inta electronic taps have a high quality finish and should be treated with care. An occasional wipe with a mild detergent on a soft damp cloth followed by a thorough rinse and wipe dry with a soft clean cloth is all that is required.
- Page 7 Trouble Shooting Problem Indicator Cause Solution No water from tap 1 Sensor flashes 1 Low batteries Replace batteries continuously when use’s hands are within range. 2 Red light in the sensor 1. Batteries are completely The batteries must be does not flash when the used up.
- Page 8 Notes: ‘Security Mode’: If the sensor is covered for more than 90 seconds the tap will automatically turn off the water flow. To return to normal operation remove the obstructive covering. ** Water flow will stop after 90 seconds due to security timing. To active your product warranty please visit www.intatec.co.uk and click on Product Registration...
