Concealed WC Cistern
with Infra Red Flush
IR2568
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
Tel: 01889 272 180
information as accurate as possible.
Fax: 01889 272 181
We cannot accept any responsibility should it be found that
email: sales@intatec.co.uk
in any respect the information is inaccurate or incomplete or
web: www.intatec.co.uk
becomes so as a result of further developments or otherwise.
© Intatec Ltd 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Inta IR2568
Summary of Contents for Inta IR2568

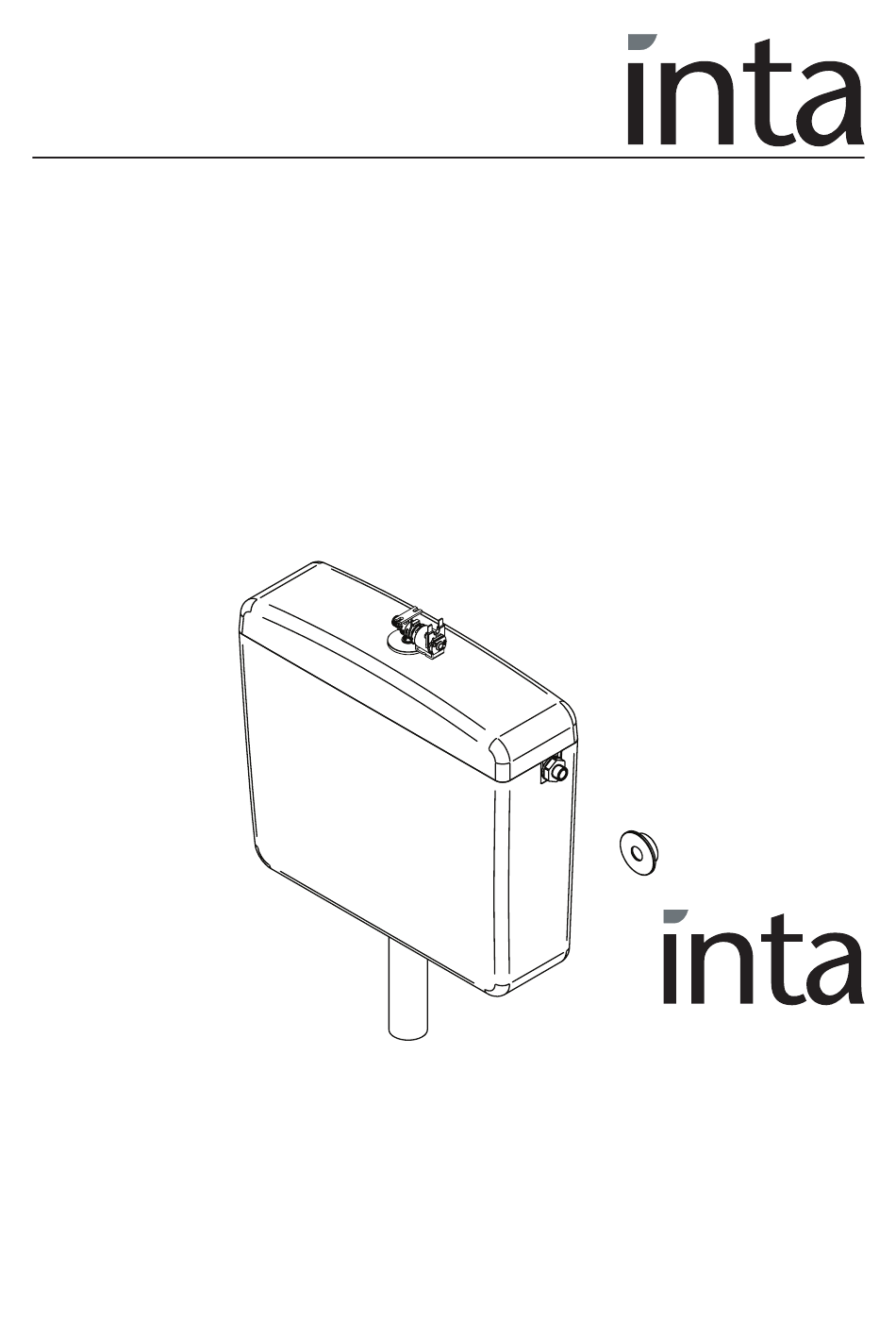

- Page 1 Concealed WC Cistern with Infra Red Flush IR2568 Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the Tel: 01889 272 180 information as accurate as possible.
- Page 2 Introduction This installation guide has been produced for the IR2568 concealed WC with infra red flush. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation of any product is carried out by an approved installer.
- Page 3 Dimensions Technical Specification Operating water pressure range: 1 to 8 bar (recommended 5 bar maximum) Power supply: 6V lithium battery - CRP-2 Flush volume: 6 litres Auto-flush: every 24 hours from last flush Operating The water flush is activated by a hand wave 5 to 6 cm away from the infra red sensor. ©...
- Page 4 Installation Before commencing the installation ensure the wall on which the cistern is to be mounted is structurally suitable. Drill two holes in the wall above the toilet pan approximately at 300mm centres. Using the plastic wall plugs and screws provided fix the two brackets to the wall. Hang the cistern onto the two brackets directly above the toilet pan and using the flush pipe connect to the toilet.
- Page 5 Installation Continued Finally position the valve into the hole in the cover. Ensure the sensor cannot be affected by any external sources such as a mirror which may create nuisance operation of the product. The battery box is attached to the retaining bracket for the sensor as shown. Battery Using the cables provided connect the battery to the sensor and sensor to the solenoid valve.
- Page 6 Warranty The cistern and flush are covered by a 1 year warranty for any fault due to defects in material, design or workmanship. The warranty does not cover damage caused by: incorrect installation, negligence in maintenance and use, acts of vandalism, contact with abrasive or corrosive chemicals and unsuitable cleaning instruments.
- Page 7 Notes © Intatec Ltd 2021...
- Page 8 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E &...
