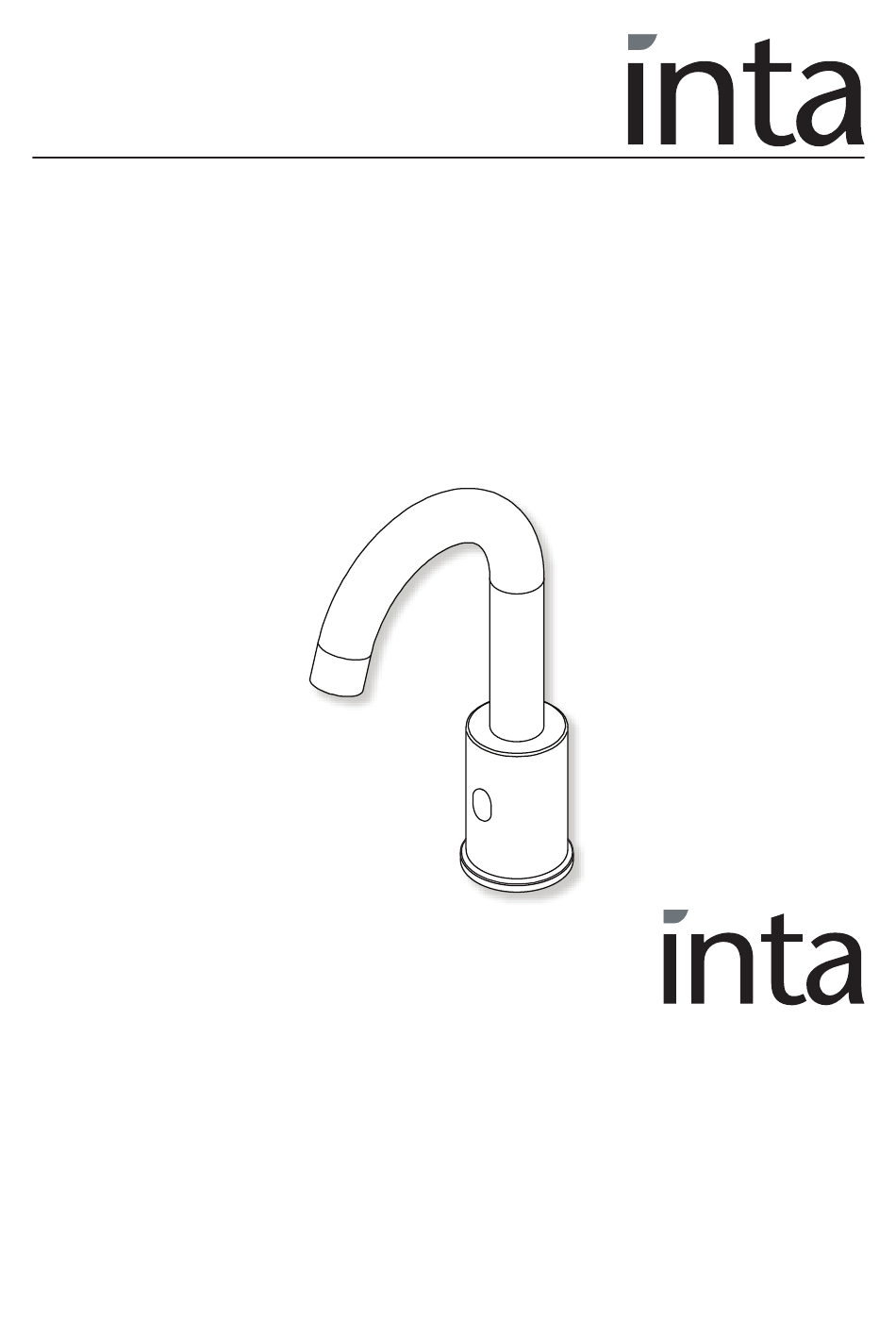

Infra Red Basin Tap
IR2503CP
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
Tel: 01889 272 180
information as accurate as possible.
Fax: 01889 272 181
We cannot accept any responsibility should it be found that
email: sales@intatec.co.uk
in any respect the information is inaccurate or incomplete or
web: www.intatec.co.uk
becomes so as a result of further developments or otherwise.
© Intatec Ltd 2022
Advertisement
Table of Contents
Related Manuals for Inta IR2503CP
Summary of Contents for Inta IR2503CP
- Page 1 Infra Red Basin Tap IR2503CP Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the Tel: 01889 272 180 information as accurate as possible. Fax: 01889 272 181 We cannot accept any responsibility should it be found that email: sales@intatec.co.uk...
-
Page 2: Pre-Installation Information
Introduction This installation guide has been produced for the IR2503CP infra red basin tap. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation of any Inta product is carried out by an approved installer. - Page 3 Components Item Component Item Component Body Sealing washer ‘O’ ring seal Solenoid valve Spout Filter sealing washer Nozzle Base Infra red sensor Fixing kit Flow connector Battery box ‘O’ ring seal AA battery Copper tail Fixing screw and wall plug ©...
-
Page 4: Technical Specification
Technical Specification Inlet ½” BSP - female copper tail Outlet Flow straightener Battery - AA 4 off Battery powered Output 6V DC Protection IP67 Max. inlet pressure - static 8 bar Min. operating pressure - dynamic 1 bar Max. inlet temperature 70˚C Maximum basin thickness 26mm... -
Page 5: Installation
Installation 1 A service valve and check valve should be installed in the water supply pipes to the valve should maintenance be required in the future. 2 Turn off the water supply using the service valve (not supplied). 3 Drill the wall and fit the bracket for the battery box using the plastic plugs and screws provided. -
Page 6: Connecting The Power Supply
Connecting the Power Supply 1 Check that the sensor window is clean and that there are no obstructions in front of the window. 2 Open the service valve. 3 Insert battery into the battery box. 4 Connect the cables to the battery box and tap as shown. 5 The LED under the sensor window will start flashing, when it stops the tap is ready for use. -
Page 7: Limited Warranty
Aftercare • Inta taps have a high quality finish and should be treated with care. • An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required. • Do not use an abrasive or chemical household cleaner as this may cause damage. -
Page 8: Fault Finding
Fault Finding Problem Cause Solution Chesck if service valve is Open service valve closed Exhausted battery - the LED Replace batteries blinks Check the voltage - where needed Disconnect and reconnect the battery Electrical problems Check for cable damage No water flow from tap Damaged sensor - assistance required Dirty sensor - with vandalism... - Page 9 Notes: © Intatec Ltd 2022...
- Page 10 Notes: © Intatec Ltd 2022...
- Page 11 Notes: © Intatec Ltd 2022...
- Page 12 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E &...
