Calibration
The Intatherm safe touch mixer tap has a factory set outlet temperature of 38˚C via the security
setting. This is based on a balanced supply pressure and a stable hot water inlet temperature of
65˚C.
However, the calibration point MUST be checked and re-set as necessary to suit site conditions.
Care must be taken when re-calibrating the tap as INCORRECT CALIBRATION CAN CAUSE
INJURY.
• Remove the indice (2), retaining screw (3), handle (4) and the temperature stop ring (5).
• Temporarily refit the handle (4) and move to the position for the hottest water and allow the
outlet temperature to stabilise.
• Using a digital thermometer it is possible to increase or reduce the mixed water outlet
temperature until 38˚C is re-established, by slowly rotating the handle.
• Remove the control knob (4) and refit the temperature stop ring (5) onto the splined section of
the cartridge at the maximum temperature position.
• Refit the handle in the reverse order.
PLEASE NOTE THAT ONCE CALIBRATED, THE SECURITY SETTING WILL ONLY BE 38˚C
UNDER THE SUPPLY CONDITIONS USED FOR CALIBRATION.

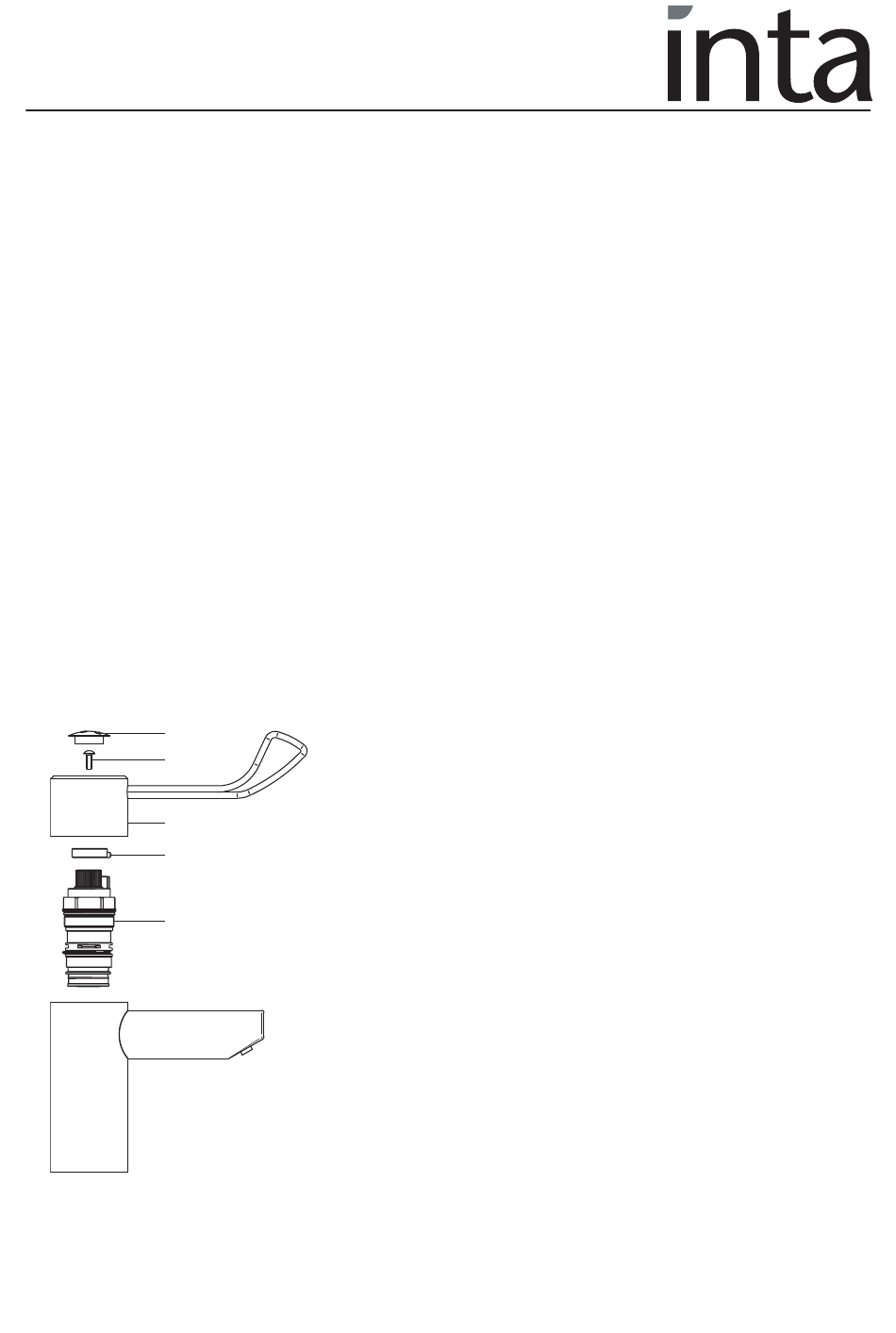

Cartridge Replacement

2
3
4
5
6
Do not use an abrasive or chemical household cleaner as this may cause damage.
© Intatec Ltd 2013
Isolate both the hot and cold water supplies
Remove the indice (2), and unscrew retaining screw (3).
Remove the temperature control knob (4) and the
temperature stop ring (5).
Using a suitable spanner unscrew the cartridge (6).
Replace with a new cartridge and assemble in the reverse
order.
Aftercare
The nozzle should be cleaned periodically to remove any
build up of debris or deposits which may affect the
performance of the tap.
Inta taps have a high quality finish and should be treated
with care.
An occasional wipe with a mild washing-up liquid on a
soft damp cloth followed by a thorough rinsing is all that
is required.
