Intatherm Safe Touch Mixer
IT1005RS and IT1006RS
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
information as accurate as possible.
Tel: 01889 272 180
We cannot accept any responsibility should it be found that in
Fax: 01889 272 181
any respect the information is inaccurate or incomplete or
email: sales@intatec.co.uk
becomes so as a result of further developments or otherwise.
web: www.intatec.co.uk
© Intatec Ltd 2019
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Inta IT1005RS
Summary of Contents for Inta IT1005RS

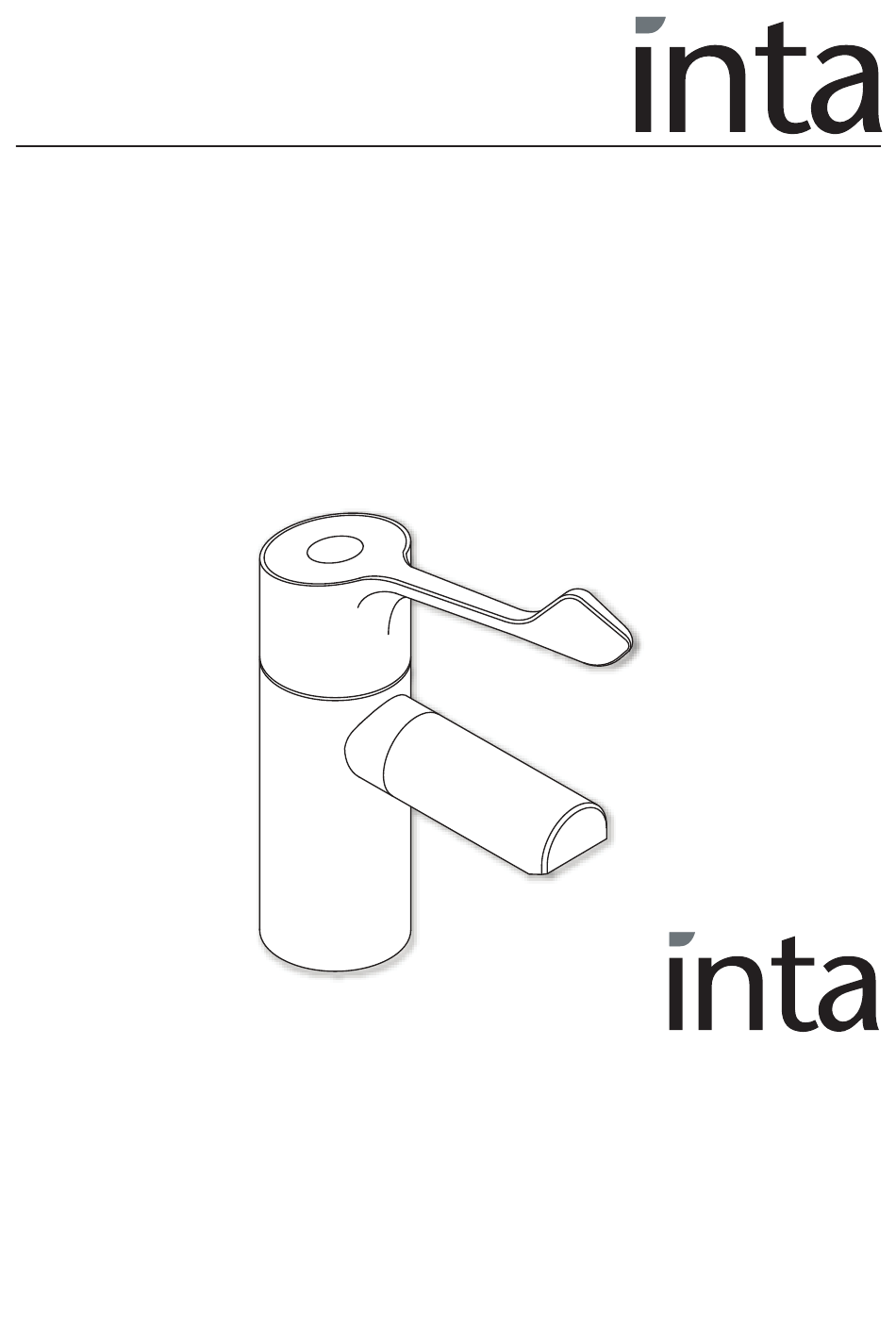

- Page 1 Intatherm Safe Touch Mixer IT1005RS and IT1006RS Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the information as accurate as possible. Tel: 01889 272 180 We cannot accept any responsibility should it be found that in...
- Page 2 Before commencing remove all components from packaging and check each component with the contents list. Ensure all parts are present, before discarding any packaging. If any parts are missing, do not attempt to install your Inta tap until the missing parts have been obtained. © Intatec Ltd 2019...
- Page 3 Components Item Qty Component IT1005RS Body Detachable spout Nozzle-- Grub screw Indice Retaining screw Handle Temperature stop ring Thermostatic cartridge Seat Sealing ring Horse shoe plate Threaded rod Retaining nut 350mm copper tail integral with body Connector with check valve and filter...
-
Page 4: Technical Data
Technical Data This Intatherm thermostatic mixer tap is suitable for installations on all types of plumbing system, including gravity supplies, fully pumped, modulating combination boiler, unvented water heater and unbalanced supplies i.e. Cold Mains & Tank Fed Hot. They are not suitable for non-modulating combination boilers. -
Page 5: Installation
The Intatherm thermostatic basin tap is designed for installing on one hole basins. The IT1005RS and IT1006RS taps are supplied with two 350mm long copper tails already fitted to the tap. Each tail is supplied ready to connect to the compression connector with integral check valve and filter (17). -
Page 6: Cartridge Replacement
Calibration The Intatherm safe touch mixer tap has a factory set outlet temperature of 38˚C via the security setting. This is based on a balanced supply pressure and a stable hot water inlet temperature of 65˚C. However, the calibration point MUST be checked and re-set as necessary to suit site conditions. - Page 7 Re-assemble in the reverse order. Inta taps have a high quality finish and should be treated with care. An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required.
-
Page 8: Fail Safe Function
Intatherm TMV3 Thermostatic Basin Tap Introduction The Intatherm safe touch thermostatic basin tap has been specifically designed and manufactured to meet the requirements of BS 7942: 2011 and NHS D08. The valve has been independently tested and approved as a TYPE 3 valve under the TMV3 scheme. Technical Specification / Conditions for use TMV3 Valves Outlet Temperature Adjustment Range 30˚C to 50˚C... -
Page 9: Temperature Setting
Refit the handle in the reverse order. Installation IMPORTANT - The following instructions must be read prior to the installation of any Inta basin tap. The installer should also be aware of their responsibility and duty of care to ensure that all aspects of the installation comply with all current regulations and legislation. - Page 10 9 Independent filters/check valves and isolation valves must be fitted in conjunction with the IT1005RS and IT1006RS basin taps, as close as practically possible to the water supply inlets. 10 It is essential that the Intatherm thermostatic basin tap should not be installed in situations where there is a possibility of the tap being deprived of water or where demands for water are greater than the actual stored supplies.
- Page 11 Commissioning IMPORTANT - The following instructions must be read and understood prior to commissioning the Intatherm thermostatic basin tap. If under any circumstances there are aspects to the installation / system which do not comply with the specification laid down, the tap MUST NOT be put into operation until the system / installation complies with our specification.
-
Page 12: Maintenance
Commissioning Table 2 Application Maximum Set Mixed Water Temp. Wash Hand Basin 43˚C 6 Ensure that the application, in which the basin tap will be used, is appropriate for the approved designation. The above information must be recorded and updated on every occasion when any work is carried out on the basin tap. - Page 13 8 In all areas periodic maintenance of the valve and associated fittings i.e. strainers, check valves will ensure optimum performance levels are maintained; Inta recommend this is performed at least annually.
- Page 14 Notes: © Intatec Ltd 2019...
- Page 15 Notes: © Intatec Ltd 2019...
- Page 16 Please leave this Manual for the User To active your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E &...
