Dimensions

Installation

• Ensure that the location of the solenoid valve and battery will be in an easily accessible
position for any future servicing.
• The two union joints on the elbows (17) can be used to position the solenoid valves above or
below the inlet to the mixer, ensure the flow through the solenoid valves is in the correct
direction.
• The tap is supplied as shown in the Components except that the thermostatic cartridge (2) and
swivel nut connectors (9) are fitted into the body.
• Fit the concealing plates (5) onto the tailpieces (6)
• Screw the tailpiece (6) into the cold water inlet of
the tap, right hand side when facing the tap.
ATTENTION: The hot water inlet connection tail
can be identified by the brass insulator pipe that
protrudes past the connecting thread.
Care must be taken to ensure the Hot Water Inlet
Tail Assembly is connected securely into the hot
water inlet of the tap body.
• Screw the tailpiece (7) into the hot water inlet of
the tap, left hand side when facing the tap.
© Intatec Ltd 2016

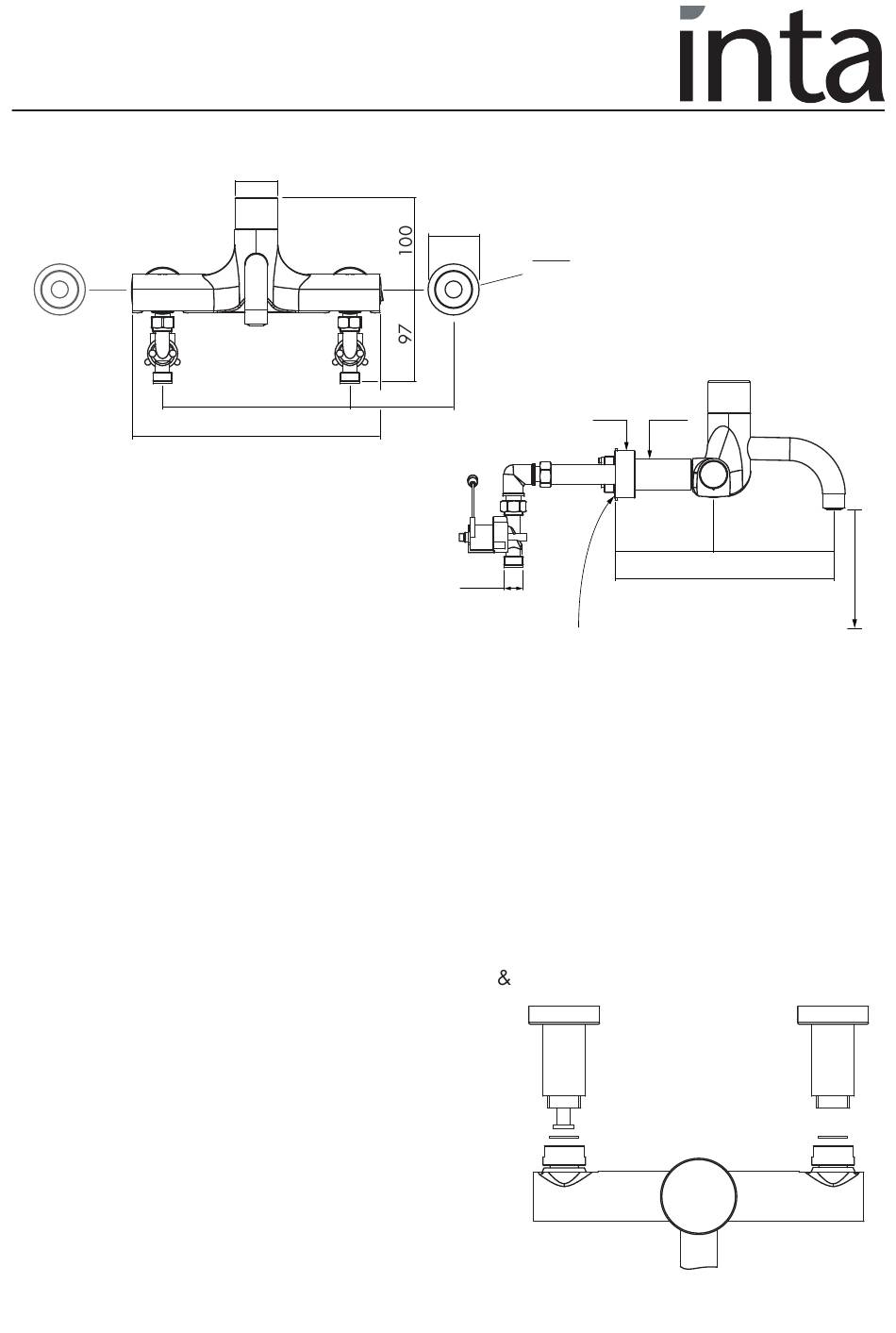

Ø45
200 85 min
266
Slide concealing plate forward
to expose the isolation valve
Use a screw driver or Allen key
Ø55
Note:
Sensor to be fitted to either
side of tap body
G½B
to operate the valve
(7).
7
6
Ø50 Ø33
105 128
235
Please refer to HBN 00-10
for guidance on
mounting distance for
outlet to waste fitting
Hot water Cold water
inlet tail inlet tail
Sealing
washer
Note:
6
