Horizontal Installation

Before installing the device,
make sure there is enough
space between the device
and nearby items (walls,
other devices, etc.) to
ensure proper heat
dissipation.

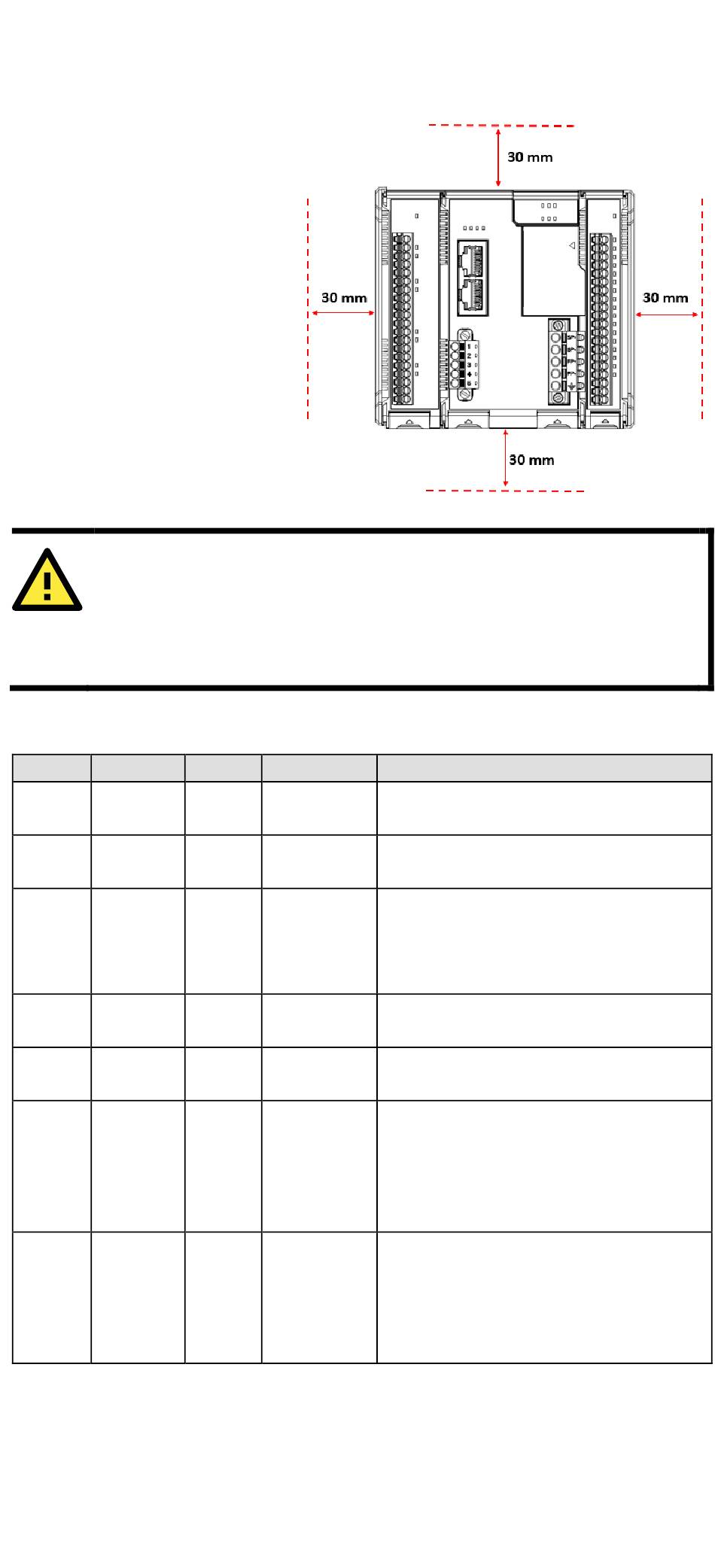

To ensure that the device
works properly, we suggest
reserving at least 30 mm of
space on each of the four
sides, as shown in the
figure.
CAUTION
Do not install the device vertically. If the device is installed
vertically, the fanless heat dissipation design will not perform
as intended.

LED Indicators

Label Usage
System
SP
Power
Field
FP
Power
System
RDY
(kernel)
User
U1/U2
defined
microSD
SD
card
L1/L2 Ethernet
P1/P2 Serial
Qty Color
1 Green
1 Green
1 Green/Red
1 of
Green/Red User-defined
each
1 Green
1 of Green/
each Amber
1 of Green/
each Amber
Action
On: Power on
Off: Power off
On: Power on
Off: Power off
Green: System ready
Green (blinking): System is
booting up or Setting Factory
Default
Green: SD card is inserted
OFF: SD card is being accessed
Green: 100Mb
Amber: 10Mb
Blinking: Data is being
transmitted
Off: Inactive
Green: Tx
Amber: Rx
Blinking: Data is being
transmitted
Off: Inactive
