ioPAC 8600 Series
Version 1.1, October 2020
Technical Support Contact Information
www.moxa.com/support
 2020 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802086000011
*1802086000011*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ioPAC 8600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies ioPAC 8600 Series

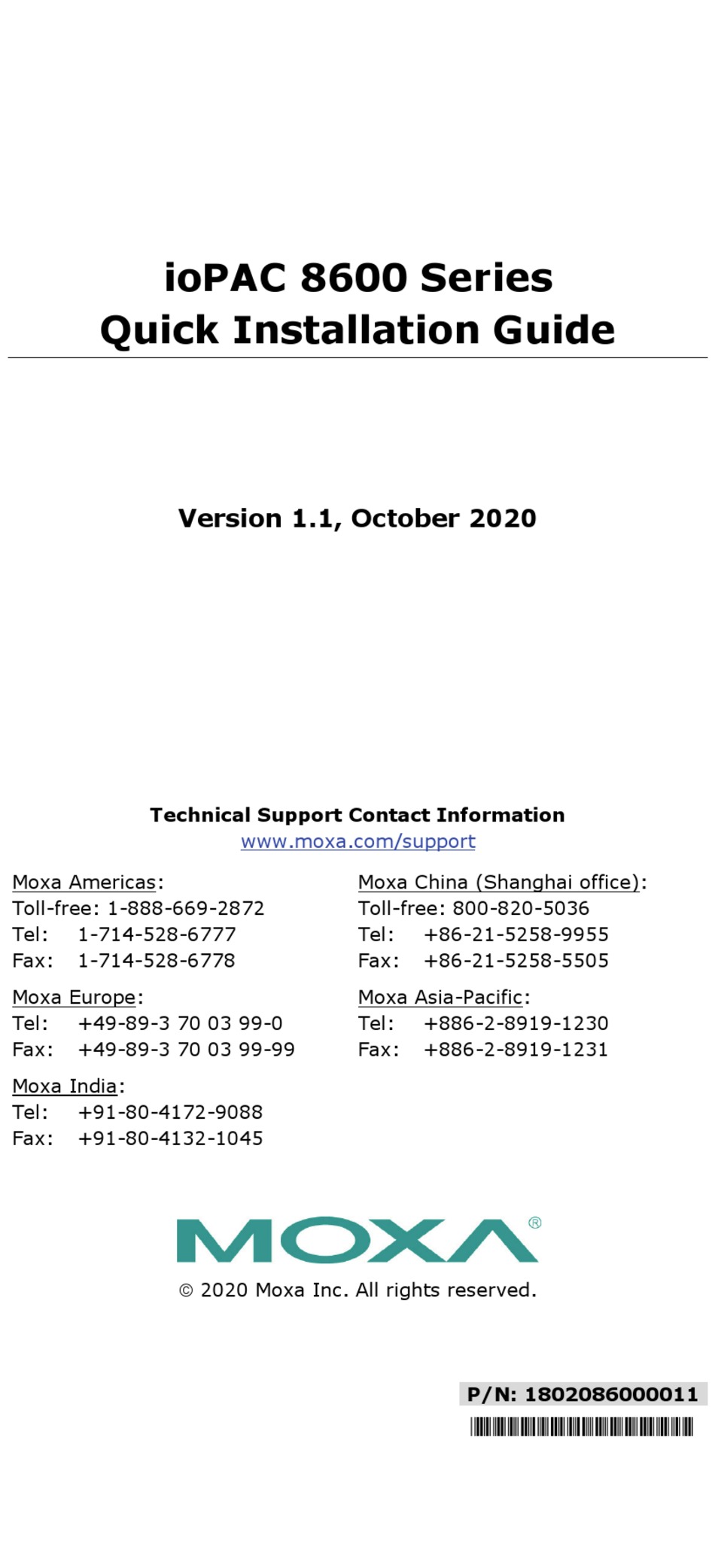

  • Page 1 8600 Series Quick Installation Guide Version 1.1, October 2020 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
  • Page 2: Package Checklist

    Introduction The ioPAC 8600 modular programmable controller supports CPU, power, backplane, and I/O modules, giving users greater flexibility for selecting the best module for different applications. The controllers have 5, 9, or 12 I/O slots and support both 85M series and 86M series modules. The ioPAC 8600 supports C/C++ and IEC 61131-3 programming capability, rail-level surge and ESD protection, a -40 to 75°C operating temperature range, anti-vibration, hot-swappability of modules, as well as two 10/100...
  • Page 3: Installation

    ioPAC 8600 Power Module Installation Wall-mounting Kit STEP 1: Use screws to attach the wall-mounting kit to the back of the ioPAC 8600, as shown below: STEP 2: Use screws to fix the wall mounting kit to a wall. - 3 -...
  • Page 4 Module Installation (Power-Off) The module’s PCB should align with the edge of the frame. Push the module into the slot and make sure the module is plugged into the backplane. Fasten the two screws using 3.5±0.5 kgf-cm of torque. Module Installation (Power-On) The module’s PCB should align with the edge of the frame.
  • Page 5: Led Indicators

    LED Indicators Category Label Usage Description On: Power On CPU Power Off: Power Off Green: System Ready Green Blinking: System Booting-up System Ready Red: System Error/Executing (Kernel) Factory Default Red Blinking: Triggering System Factory Default Green: Firmware Upgrade Firmware Success Green Blinking: Upgrading Upgrade Mode (rotary switch...
  • Page 6: Ethernet Connection

    0 and reboot the ioPAC. Note: The microSD card should be FAT32 format. Connecting to the ioPAC 8600 Series Controller Use the following configuration information to log in to the ioThinx 4530 Series controller: Port Default IP...
  • Page 7: Serial Connection

    M12 Pin Assignment Connection Serial Connection Remove the SD card cover and attach the 4-pin console cable to the console port. Serial Console Port Pin Assignment Definition Serial Console Settings Parameter Value Baudrate 115200 bps Parity None Data bits Stop bits Flow Control None Terminal...
  • Page 8: Specifications

    How to Download the Software Related software packages can be downloaded from the Moxa website. Step 1: Go to the following address: https://www.moxa.com/en/support Step 2: Select a product list from the drop-down box or type the model name in the search box. In the following screenshot, the ioLogik E1200 Series is used to illustrate.
