Package Checklist

• 1 x ioThinx 4530 Series product
• 1 x console cable
• 1 x quick installation guide (printed)
• 2 x side cover plate

Installation

Connecting the System Power
Connect your 12 to 48 VDC power
source to the SP+ and SP-
terminals on the ioThinx 4530
Series' terminal block.

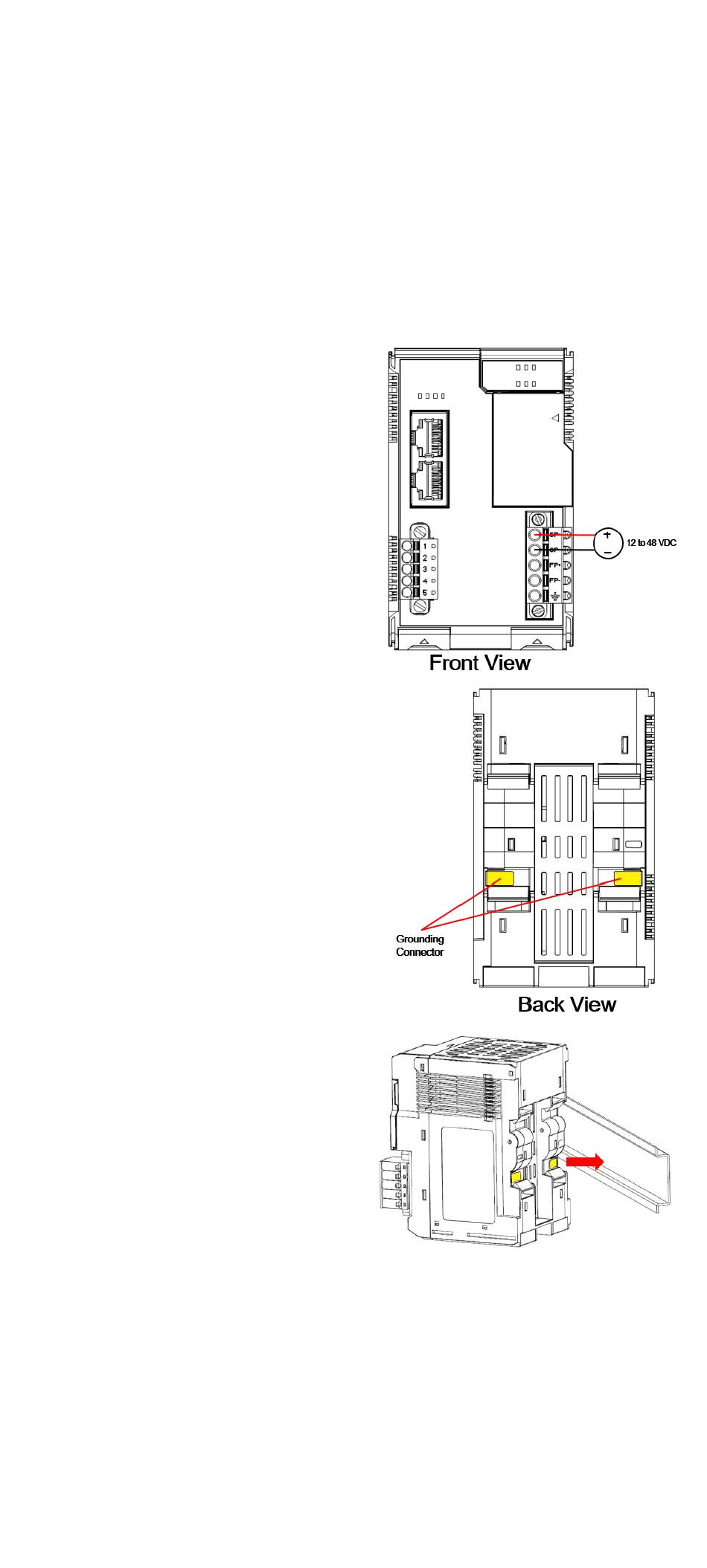

The system grounding connectors
are on the back of the unit, as
shown in the diagram.
The grounding connectors will
contact the DIN rail when the
product is attached to it.
