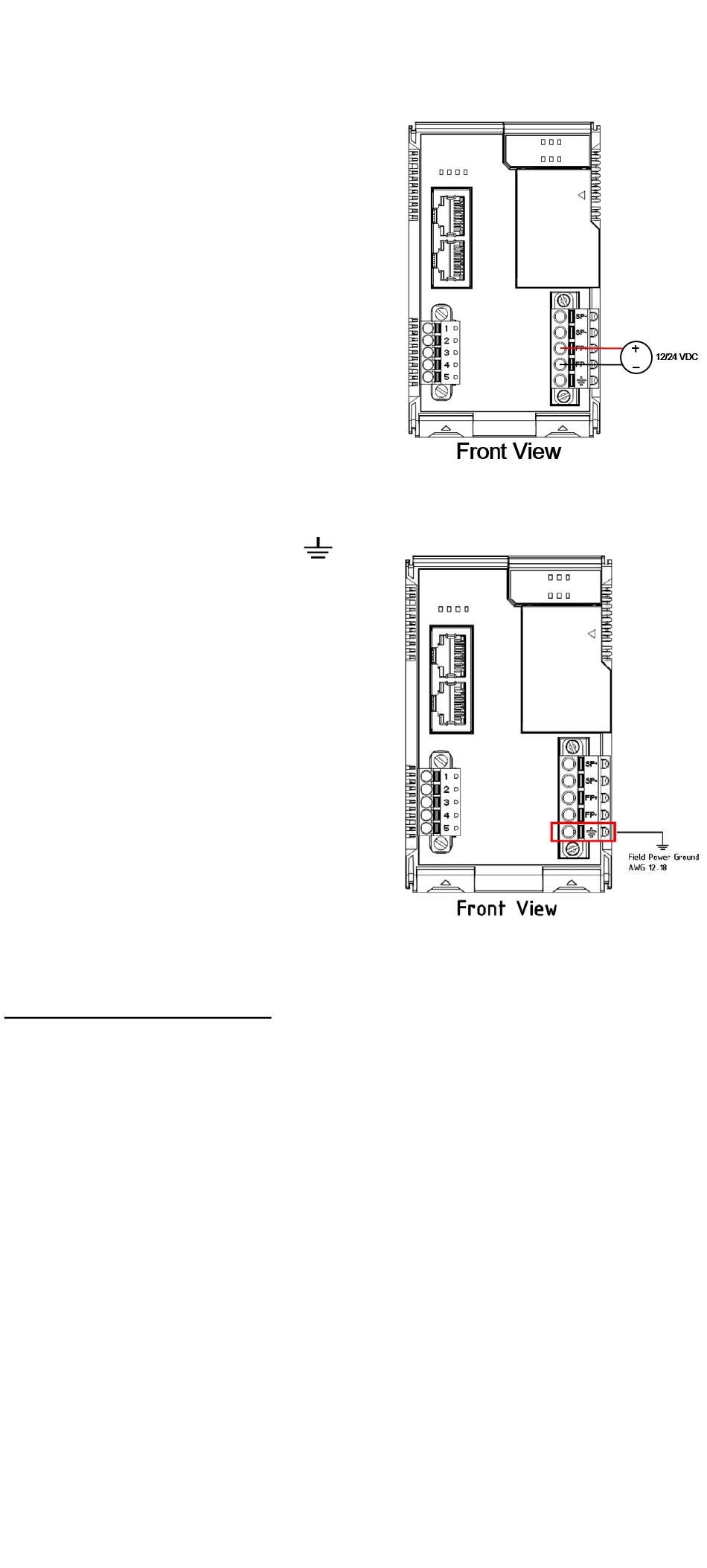

Connecting the Field Power
The ioThinx 4530 Series can receive
field power through a 12/24 VDC
power input. Field power can supply
power for some types of I/O modules,
such as digital input and analog
output modules.
Connecting the Field Power Ground
Connect the Field Ground pin (
) to
the field power ground.
Connecting to the Network
Ethernet Communication
The ioThinx 4530 Series is equipped with two RJ45 LAN ports with two
MAC addresses. Connect a network Ethernet cable to either port to
provide an Ethernet connection to the unit.
- 4 -
