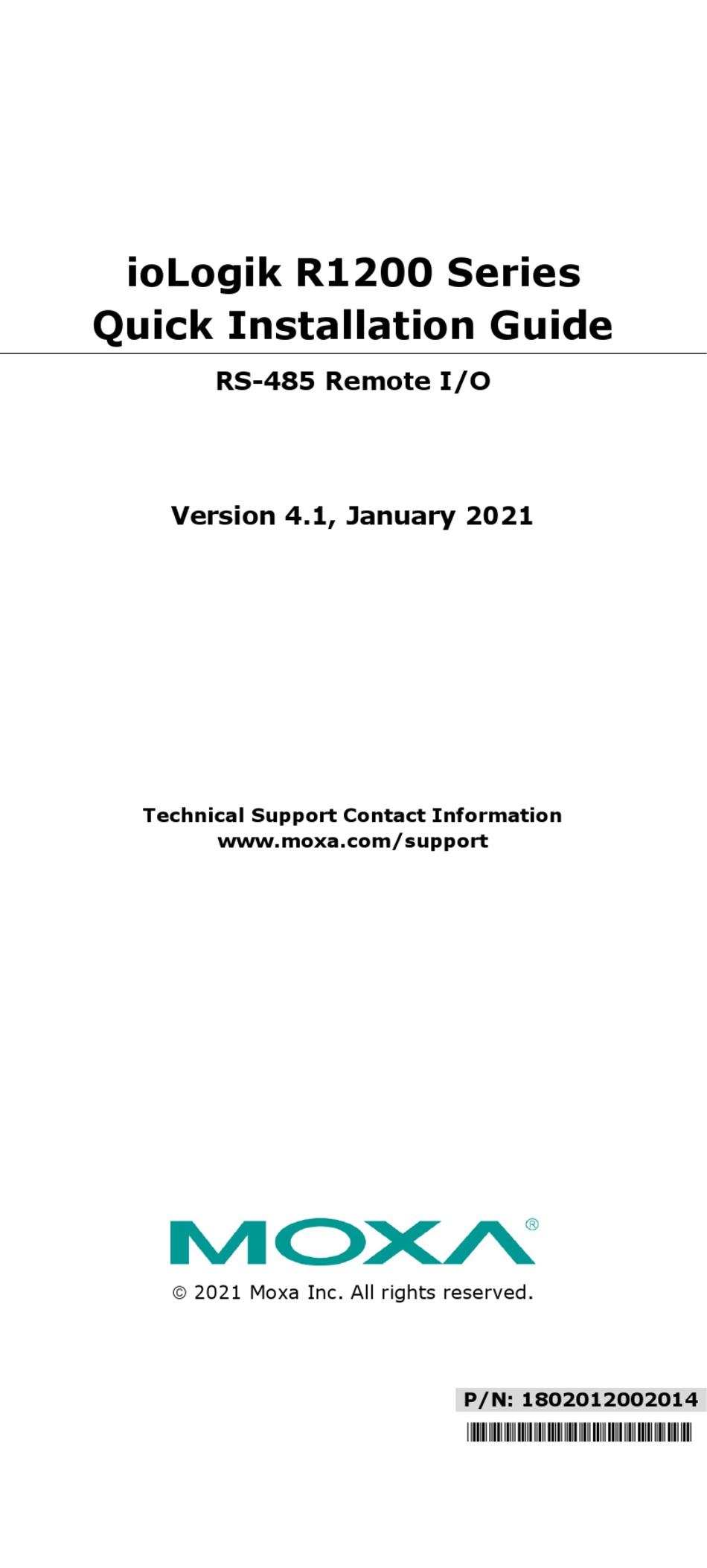

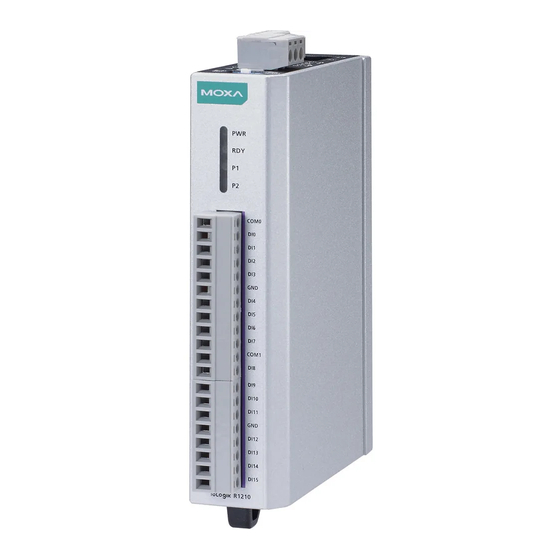

- Page 1 ioLogik R1200 Series Quick Installation Guide RS-485 Remote I/O Version 4.1, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802012002014 *1802012002014*...
- Page 2 Package Checklist • 1 ioLogik R1200 series remote I/O product • Quick installation guide (printed) Specifications Input Current ioLogik R1210 Series: 154 mA @ 24 VDC ioLogik R1212 Series: 187 mA @ 24 VDC ioLogik R1214 Series: 207 mA @ 24 VDC ioLogik R1240 Series: 216 mA @ 24 VDC ioLogik R1241 Series: 343 mA @ 24 VDC Input Voltage...
- Page 3 Analog Input Relay Output (Form A) NOTE A “load” in a circuit schematic is a component or portion of the circuit that consumes electric power. For the diagrams shown in this document, “load” refers to the devices or systems connected to the remote I/O unit.
- Page 4 LED Indicators Type LED Color LED Action Green Power On Off: Power Off Green/ Green: System Ready Green Located Blinking: Red: System Boot-up Error Firmware upgrade / USB upgrade Blinking: Green/Red Safe Mode Blinking: Off: System NOT Ready Green/ Green: Amber Amber: Blinking:...
- Page 5 Step 2: Type the model name in the search box or select a product from the drop down box and then click Search. Step 3: Click the Software Packages link to download the latest software for the product. - 5 -...
