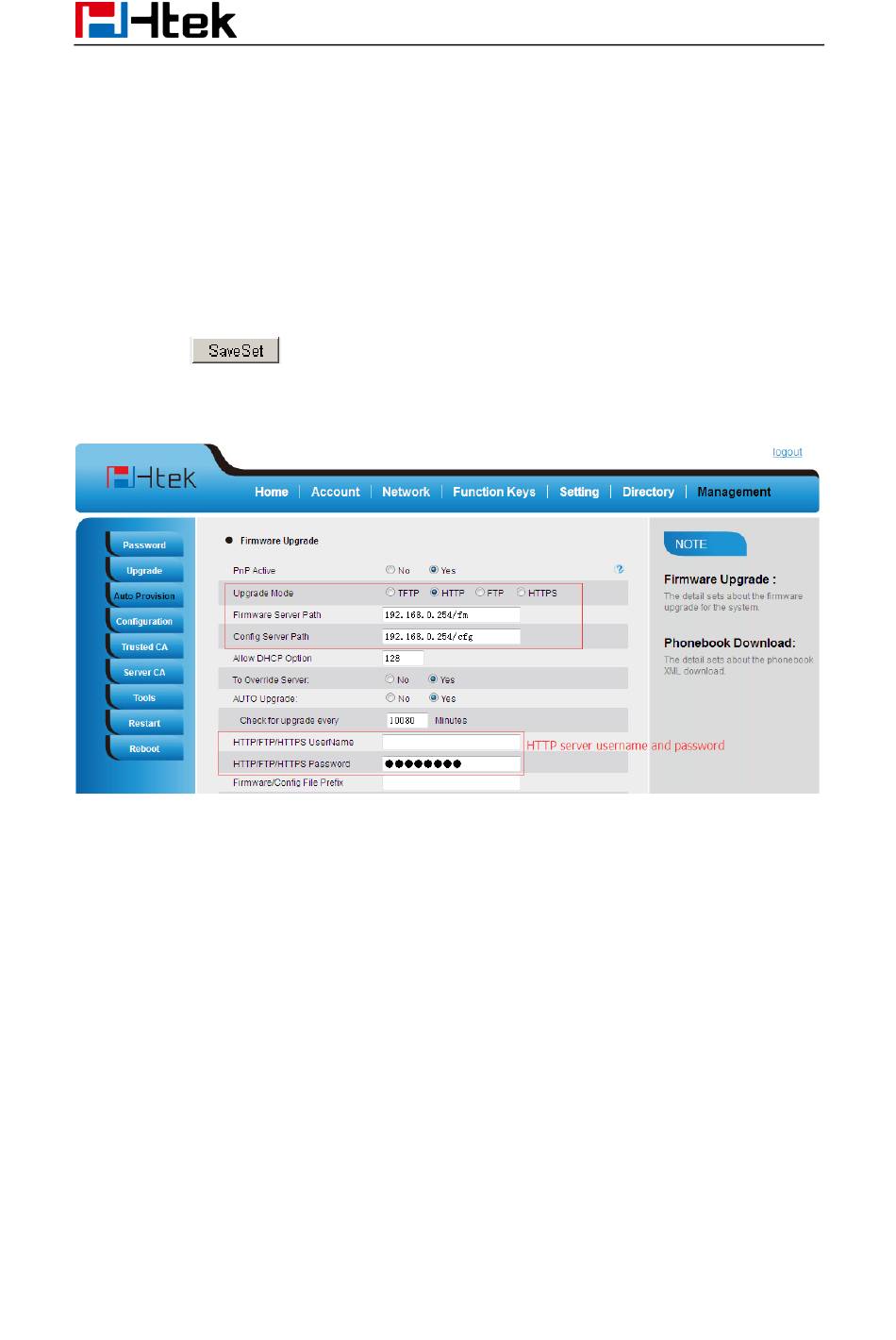

To configure the server path via web interface:
1. Click ManagementAuto provision:
2. Select the upgrade mode in the upgrade mode field
3. Enter the Firmware server path and config server path (192.168.0.254 is HTTP
server).
4. Enter the HTTP server 's username and password (optional).
5. Click the
6. Restart the UC8xx, IP Phone will restart and auto-get firmware files from HTTP server.
NOTES:
Htek recommends end-user use the Htek HTTP server. For large companies, we
recommend to maintain their own TFTP/HTTP/FTP/HTTPS server for upgrade
and provisioning procedures.
Once a "Firmware Server Path" is set, user needs to update the settings and
restart the IP Phone. If the configured firmware server is found and a new code
image is available, the UC8xx will attempt to retrieve the new image files by
downloading them into the UC8xx's SDRAM. During this stage, the UC8xx's
LEDs will blink fastly until the checking/downloading process is completed. Upon
verification of checksum, the new code image will then be saved into the Flash. If
TFTP/HTTP/FTP/HTTPS fails for any reason (e.g. TFTP/HTTP/FTP/HTTPS
server is not responding, there are no code image files available for upgrade, or
checksum test fails, etc), the UC8xx will stop the TFTP/HTTP/FTP/HTTPS
process and simply boot using the existing code image in the flash.
Firmware upgrade may take as long as 3 to 8 minutes over Internet, or just 1
minutes if it is performed on a LAN. It is recommended to conduct firmware
button to save the configuration.
Upgrade
188
