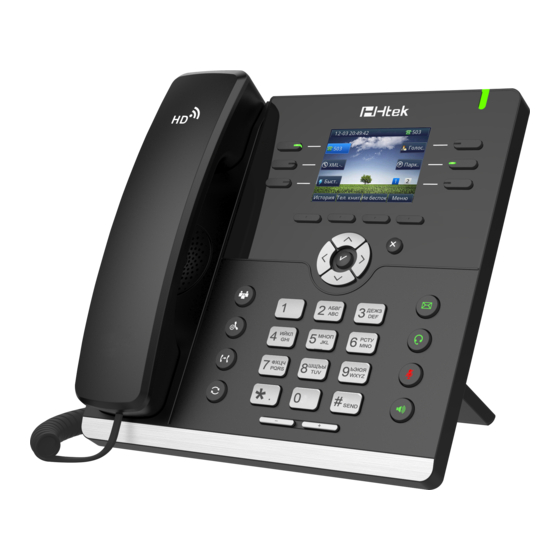

Summary of Contents for Htek UC923

  • Page 1: Table Of Contents

    Home PBXware SERVERware TELCOware SIPmon SIPProt Desktop & Mobile UADs Appliances From Bicom Systems Wiki Contents 1 Introduction 2 Video Tutorial 3 Requirements 3.1 Identifying phone model 3.2 Phone firmware 3.3 DHCP server 3.4 PBXware version 4 Installation 4.1 Power adapter 4.2 Power over Ethernet (PoE) 4.3 Find the phone IP address 4.4 Reset to factory settings...

  • Page 2: Video Tutorial

    This Configuration Guide is written as general guide on how to configure the Htek phone model UC923 to work with PBXware 4.1. Video Tutorial Video tutorial explaining Auto Provisioning setup for HTek Phone on PBXware 4. Video tutorial explaining Auto Provisioning setup for Htek Phone on PBXware 5.

  • Page 3: Phone Firmware

    Make sure that your phone is loaded with appropriate firmware version, 2.0.4.4.25. To find out the firmware version of your Htek phone model open a new browser window and enter your phone IP address in order to access the phone web administration interface login screen.

  • Page 4: Power Over Ethernet (Poe)

    Do not unplug or remove power to the phone while it is updating firmware and configurations. Registering phone This chapter describes how to identify Htek phone model, requirements that must be met and how to register the phone using manual configuration or auto provisioning. The following topics are covered:...

  • Page 5: Manual Configuration

    UAD settings Navigate to Settings:UAD. Make sure Htek UAD is enabled. To check the UAD status click on the edit icon corresponding to your Htek phone. Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
  • Page 6 Department to which extension will belong to. Example: Sales. Click on the Save button. Registering Phone This chapter describes how to register Htek phone using Hostname or IP Address. The following topics are covered: Hostname or IP Address Hostname or IP Address...

  • Page 7: Auto Provisioning

    Account Active Make sure the Yes radio box is selected. Primary SIP Server - Example for Hostname: voip.bicomsystems.com - Example for IP Address: 192.168.1.10 SIP User ID PBXware extension number. Example: 1003. Authenticate ID Usually the same number as the SIP User ID. Authenticate Password The Secret of the extension as received in the e-mail associated with this extension.
  • Page 8 UAD settings. Navigate to Settings:UAD. Make sure Htek UAD is enabled. To check the UAD status click on the edit icon corresponding to your Htek phone. Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
  • Page 9 Enter Htek phone MAC address. Example: 001FC1123456. MAC address can be found at the back of the phone. Click on the Save button. Registering Phone This chapter describes how to register Htek phone using DHCP & TFTP or HTTP. The following topics are covered: DHCP TFTP or HTTP...
  • Page 10 details are username: admin and password: admin. Click on Management tab. Click on Auto Provision link in the left hand navigation menu. Choose what server type you intend to use: HTTP or Trivial FTP. NOTE: recommendation is to use the HTTP. If you choose to use server type HTTP enter Hostname or IP Address, followed then by /prov.

  • Page 11: Configure Blf

    PBXware. If everything is done as above described, you should have successfully registered your phone to PBXware. Dial *123 to verify registration. Configure BLF This chapter describes how to configure BLF (Busy Lamp Field) for Htek UC923. The following topics are covered: - Extension Settings...

  • Page 12: Additional Configuration Template

    Click on Confirm button to save changes. Additional Configuration Template If You want to include some additional UAD configuration for Htek UC923, just add fields to User Agent General Auto Provisioning Template in Settings -> UAD -> Htek UC923 menu, or add them directly to the extension in UAD Auto Provisioning Template section.
