One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
FEATURES
Full featured evaluation board for
PC control in conjunction with the
system demonstration platform (SDP-B)
PC software for control and data analysis (time and
frequency domain)
Standalone capability
EVALUATION KIT CONTENTS
EVAL-ADE7903EBZ
evaluation board
ADDITIONAL EQUIPMENT NEEDED
EVAL-SDP-CB1Z
(order separately), includes a USB cable
1 current sensing shunt
Precision current and voltage signal source
Minigrabbers
PC running Windows XP SP2, Windows Vista, or Windows 7
with USB 2.0 port
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluating the
ADE7903
EVAL-SDP-CB1Z
TYPICAL SETUP

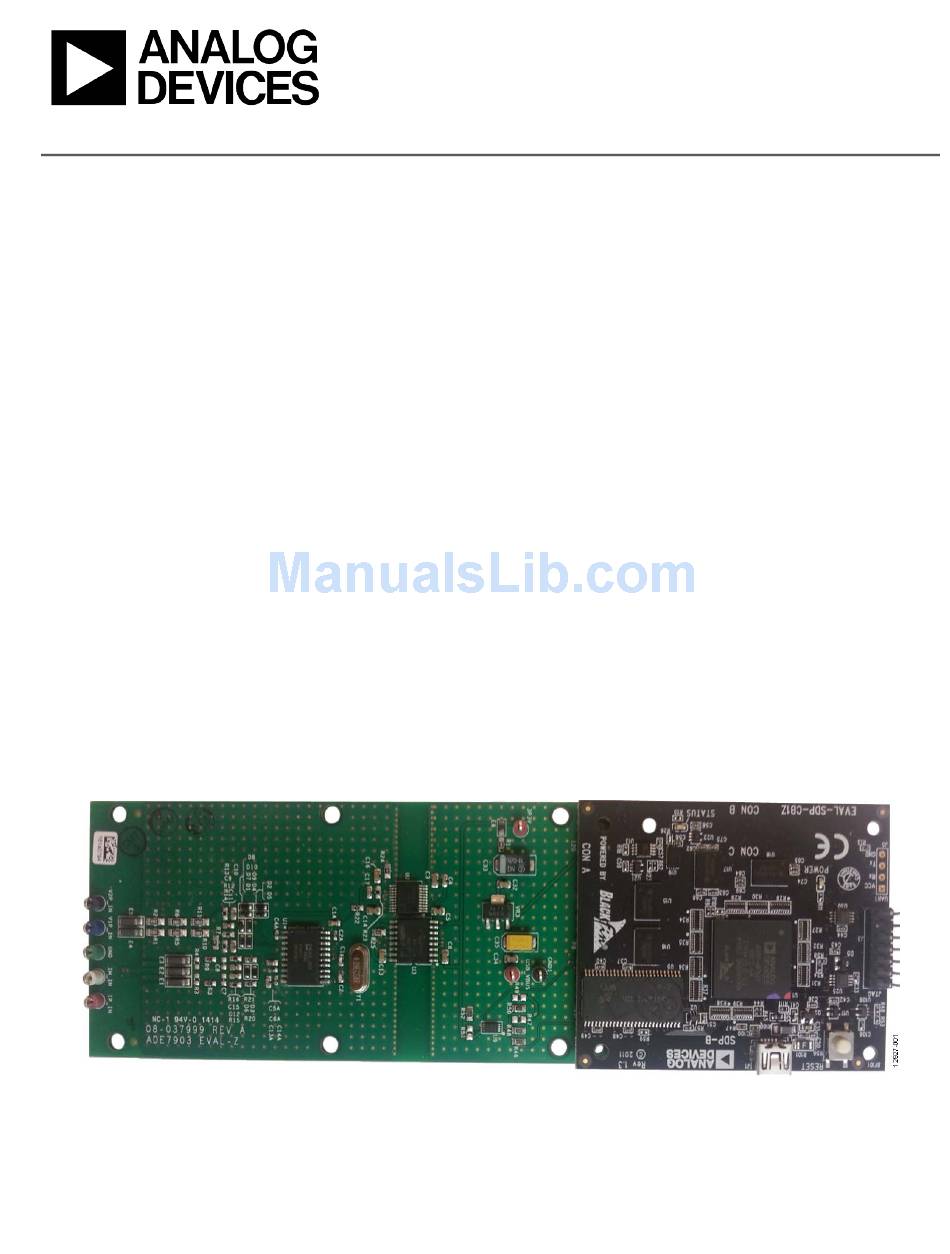

Figure 1. Evaluation Board Connected to the SDP Interface and SDP Boards
Rev. 0 | Page 1 of 12
EVAL-ADE7903EBZ User Guide
ADE7903
Σ-Δ ADC
ONLINE RESOURCES
Documents
ADE7903
data sheet
EVAL-ADE7903EBZ
Required Software
ADE7903
evaluation software (download from
product page)
Design and Integration Files
Schematics, layout files, bill of materials
GENERAL DESCRIPTION
The
EVAL-ADE7903EBZ
board, which along with the
allows users to evaluate the performance of the
ADC in a context very close to an actual single-phase meter
implementation. There is an isolated version of the
Σ-Δ ADC available, the ADE7913; to evaluate the isolated
Σ-Δ ADC, use the
ADE7913
from Analog Devices, Inc.). Evaluation software written in
LabVIEW® provides access to the registers of the
using a PC interface.
Full specifications on the
data sheet, which should be consulted in conjunction with this
user guide when using this evaluation board.
user guide
evaluation kit includes the evaluation
EVAL-SDP-CB1Z
SDP-B board,
ADE7903
evaluation kit (order separately
ADE7903
ADE7903
are available in the product
UG-797
Σ-Δ
ADE7903
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADE7903EBZ
Summary of Contents for Analog Devices EVAL-ADE7903EBZ
-
Page 1: Features
Σ-Δ ADC available, the ADE7913; to evaluate the isolated with USB 2.0 port Σ-Δ ADC, use the ADE7913 evaluation kit (order separately from Analog Devices, Inc.). Evaluation software written in LabVIEW® provides access to the registers of the ADE7903 using a PC interface. Full specifications on the... -
Page 2: Table Of Contents
UG-797 EVAL-ADE7903EBZ User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Software ...............7 Evaluation Kit Contents ..............1 Installing the Drivers ..............7 Additional Equipment Needed ............1 Installing and Uninstalling the ADE7903 Evaluation Software ..................7 Online Resources ................1 Main Window ................8... -
Page 3: Evaluation Board Hardware
EVAL-ADE7903EBZ User Guide UG-797 EVALUATION BOARD HARDWARE OVERVIEW To evaluate the ADE7903, connect the evaluation board and the CONN SDP-B board together (see Figure 1). The EVAL-ADE7903EBZ evaluation board, which is populated with one ADE7903 ADC, SDP BLACKFIN BOARD can be used for evaluation of the standalone ADC or as a possible single-phase meter implementation example (see Figure 3). -
Page 4: Powering Up The Evaluation Kit Boards
UG-797 EVAL-ADE7903EBZ User Guide POWERING UP THE EVALUATION KIT BOARDS The absolute maximum voltage on the IP and IM pins of the ADE7903 is ±2 V. The D3 and D6 diodes protect the IP and IM The interface board receives power via the USB cable connected pins against voltages greater than ±1 V. - Page 5 EVAL-ADE7903EBZ User Guide UG-797 Phase Voltage Sense Inputs (V1P_ IN Test Pin) VDD and Ground Pin Management The phase-to-neutral voltage input connections on the EVAL- ADE7903 package has four ground pins (GND): Pin 2, ADE7903EBZ evaluation board can be directly connected to the Pin 10, Pin 11, and Pin 20.
-
Page 6: Setting Up The Evaluation Board As An Energy Meter
UG-797 EVAL-ADE7903EBZ User Guide SETTING UP THE EVALUATION BOARD AS AN ENERGY METER Figure 8 shows a typical setup for the EVAL-ADE7903EBZ USB_VBUS evaluation board. In this example, an energy meter for a 1-phase, 2-wire distribution system is shown. A shunt is used to sense the phase current and is connected as depicted in Figure 8. -
Page 7: Evaluation Board Software
EVAL-ADE7903EBZ User Guide UG-797 EVALUATION BOARD SOFTWARE EVAL-ADE7903EBZ evaluation board is supported by INSTALLING AND UNINSTALLING THE ADE7903 Windows®-based software that allows the user to access all the EVALUATION SOFTWARE functionality of the ADE7903. ADE7903 evaluation software is supplied with the The software communicates with the SDP-B Blackfin board evaluation software package. -
Page 8: Main Window
UG-797 EVAL-ADE7903EBZ User Guide MAIN WINDOW Troubleshooting the COM Port Detection If the software does not detect the SDP-B Blackfin board, the When the software is launched, the main window opens. This message shown in Figure 13 displays. window contains two areas: the main menu on the left, and a box that verifies that the PC is connected to the SDP-B board on the right (see Figure 11). -
Page 9: Evaluation Software Functions
EVAL-ADE7903EBZ User Guide UG-797 EVALUATION SOFTWARE FUNCTIONS ADE7903 evaluation software allows access to all the registers and features of the ADE7903. The main menu options available are Start the ADE7903 Waveform Sampling Temperature Measurement Read and Write Registers ... -
Page 10: Waveform Sampling
UG-797 EVAL-ADE7903EBZ User Guide WAVEFORM SAMPLING Other selections include the Bandwidth under analysis (default is between 10 Hz and 4000 Hz), the Fundamental Frequency Figure 15 shows the Waveform Sampling window. This (the default is 50 Hz), the width of the signals extracted for SNR... -
Page 11: Temperature Measurement
EVAL-ADE7903EBZ User Guide UG-797 TEMPERATURE MEASUREMENT READ AND WRITE REGISTERS Figure 17 shows the Temperature Measurement window. The Figure 18 shows the Read and Write Registers window. Every Temperature Sensor Select switch controls whether the ADE7903 register of the ADE7903 populating the board can be accessed measures the V2 channel inputs or the temperature sensor. - Page 12 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
