TVLogic LVM-180A Operation Manual page 9

03 CONTROLS & FUNCTIONS
LVM-180A REAR
• [REMOTE] (RJ-45)
- Provides connection to control equipment for
external monitor control.
- Features can be changed in the [REMOTE]
section of OSD menu.
• [RS422 IN/OUT] (RJ-45)
- Controls the monitor by a protocol provided
by TVLogic or supports TSL protocol.
• [DVI-I] (DVI-I)
- Signal input terminal for DVI ANALOG or DVI
DIGITAL signal.
• [HDMI(HDCP)] (HDMI)
- Signal input terminal for HDMI signal.
• [CVBS IN] (BNC)
- Signal input terminal for COMPOSITE signal.
• [CVBS OUT] (BNC)
- Signal output terminal for COMPOSITE input
signal through CVBS-IN.
• [SDI-IN A] (BNC)
- Signal input terminal for 3G/HD/SD SDI signal.
• [SDI-IN B] (BNC)
- Signal input terminal for 3G/HD/SD SDI signal.
• [SDI-OUT] (BNC)
- Signal output terminal for 3G/HD/SD SDI input
signal through SDI-IN.
* SDI Output is not activated when the
unit is turned off or in Standby mode.
• [Audio In] (PHONE JACK)
- Inputs external audio.
• [AC IN]
- 100 ~ 240V AC 50/60Hz
• [POWER S/W]
- Power On/Off switch
• [DC IN]
- 12V DC

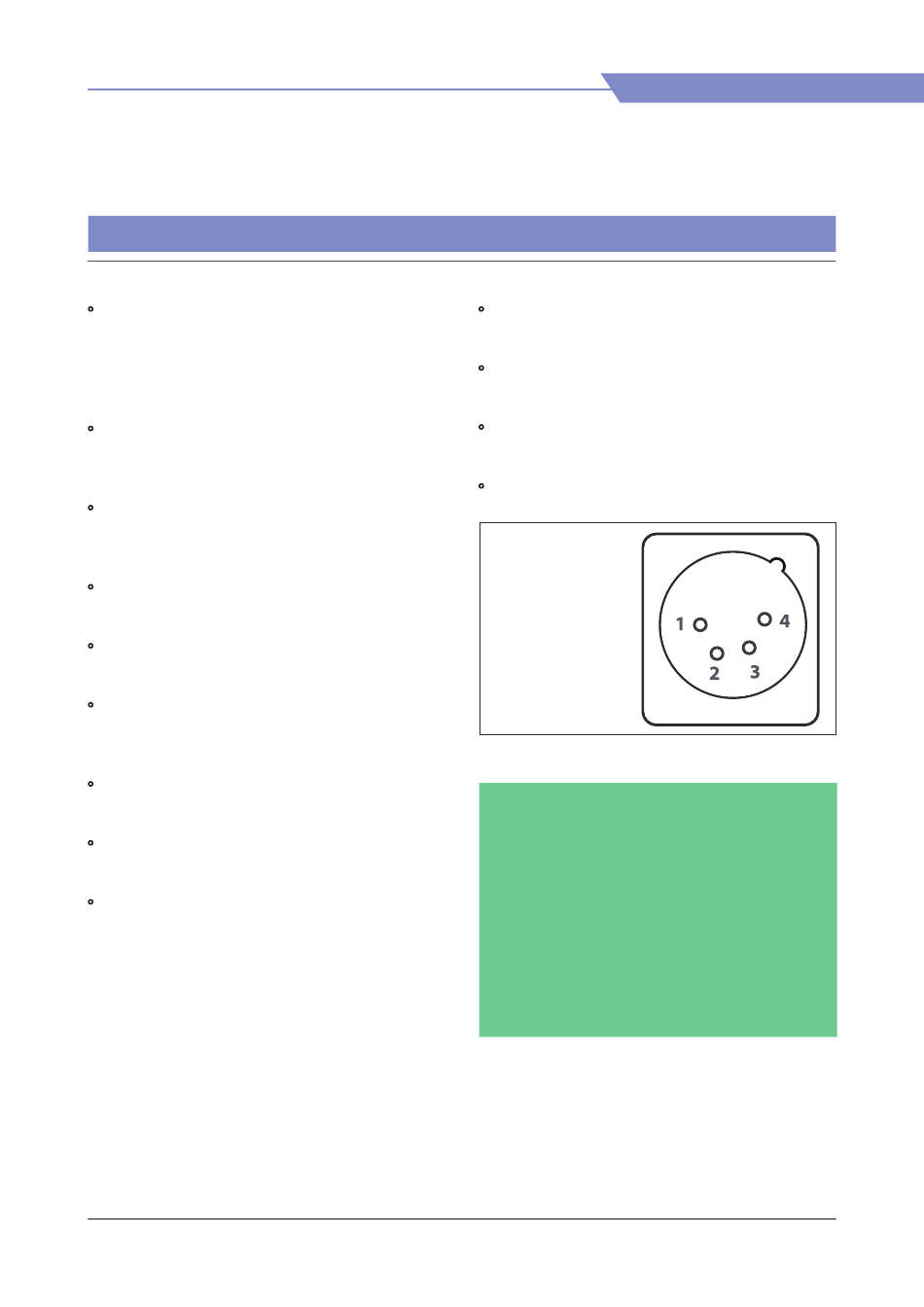

DC IN socket
1,2 : GND
3,4 : +12V
<WARNING!!>
When using the product make sure to ground,
whenever possible, before connecting the
input signal cable in order to prevent any
possible damage to the product or connected
devices. The damage may include signal noise,
malfunction of main board or display panel.
And the connected devices such as camera or
video source player may also be influenced
through signal cable. Please check if the AC
power source and the power extender or
power distributor is grounded.
Multi Format LCD Monitor
9
