TVLogic LVM-180A Operation Manual page 26

Multi Format LCD Monitor
05 MENU OPERATIONS

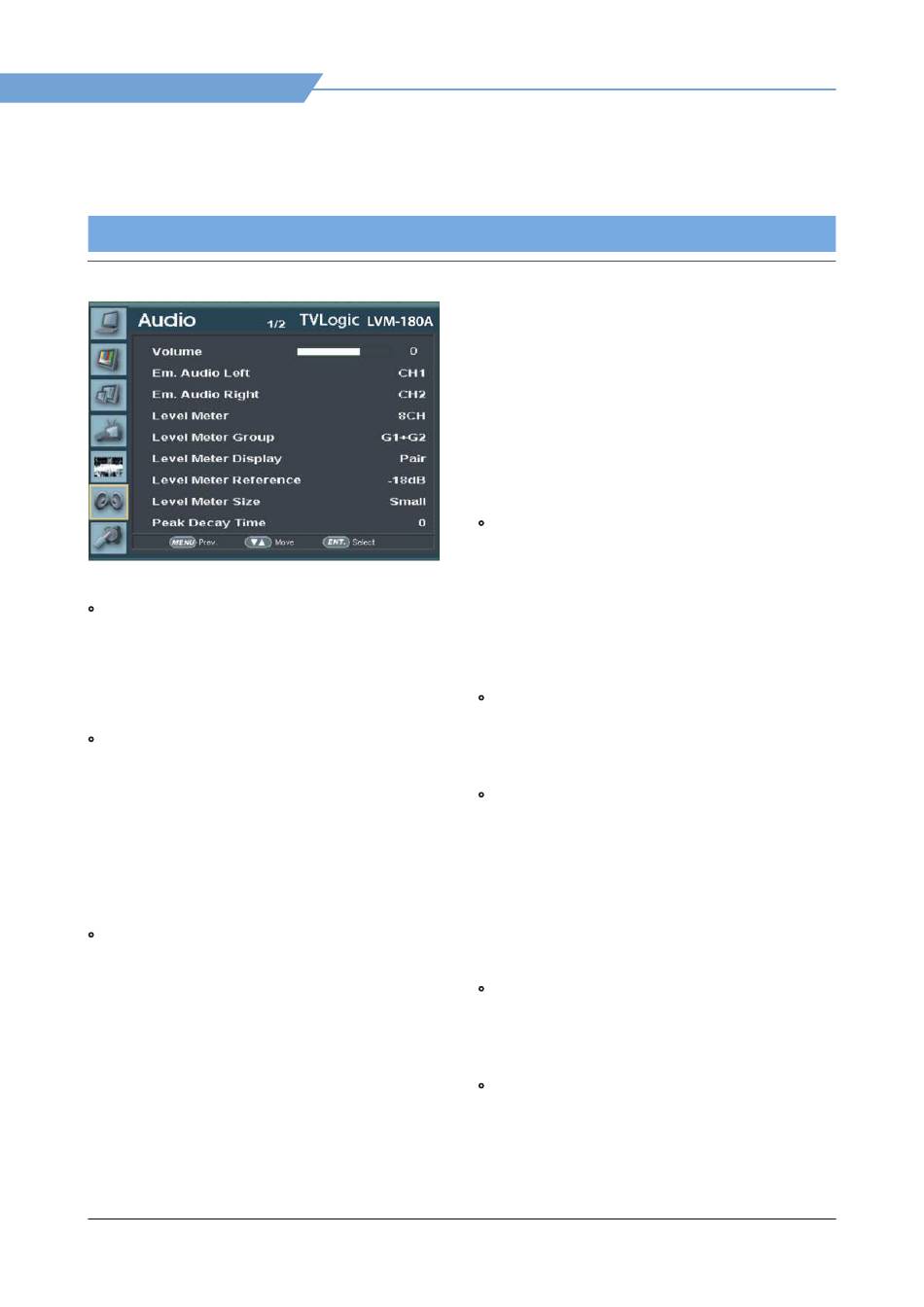

[6] AUDIO
• Volume
- This menu adjusts the embedded audio output
volume for the internal speakers and [AUDIO
OUT] in the front of the monitor.
- Available values are between [0] and [30].
• Em. Audio Left/Right
- This menu adjusts the embedded audio channel
for the left and right audio out of internal
speakers and [AUDIO OUT] in the front of the
monitor.
- Available values are [Off ], [CH1] to [CH16],
[Ext. Audio] with SDI input, and Left: [CH1],
Right: [CH2] with HDMI input.
• Level Meter
- Used to adjust the audio level meter.
- Available modes are [OFF], [16CH(Hor.)],
[16CH(Ver.)], [8CH], [8CH Side], [4CH] and
[4CH Side] with SDI input, and [OFF], [2CH(Hor.)],
[2CH(Ver.)] with HDMI input.
*16CH(Hor.): 8 channels are displayed on the
top-left of the screen and the other 8 channels
on the top-right horizontally.
*16CH(Ver.): 8 channels are displayed on the
top-left of the screen and the other 8 channels
on the top-right vertically.
26
*8CH: 4 channels are displayed on the top-left of
the screen and the other 4 channels on the
top-right horizontally.
*8CH Side: 8 channels are displayed on the
top-right horizontally.
*4CH: 2 channels are displayed on the top-left of
the screen and the other 2 channels on the
top-right horizontally.
*4CH Side: 4 channels are displayed on the
top-right horizontally.
• Level Meter Group
- In [8CH], [8CH Side], [4CH], [4CH Side] of
[Level Meter] mode, the Level Meter Group can
be adjusted.
- Available modes are as follows.
*8CH, 8CH Side: [G1+G2]-[G2+G3]-[G3+G4]-
[G1+G3]-[G1+G4]-[G2+G4]
*4CH, 4CH Side: [G1]-[G2]-[G3]-[G4]
• Level Meter Display (SDI Only)
- This menu adjusts the display method of audio
level meter.
- Available modes are [Pair] and [Group].
• Level Meter Reference
- This menu sets the Audio Level Meter default.
- Available values are [-18dB] and [-20dB].
- The audio within the selected value is displayed
in green on the Audio Level Meter. The audio
which exceeds the selected value is displayed in
yellow on the Audio Level Meter.
- The Audio exceeding -4dB is displayed in red on
the Audio Level Meter.
• Level Meter Size
- This menu adjusts the size of the audio level
meter.
- Available modes are [Small] and [Large].
• Peak Decay Time
- This function sets the decrease time of the
maximum indication of the audio signals.
- Available value is [0] to [100]. The higher the
value is set, the longer time it takes for the
indication bars to decay.
