03 CONTROLS & FUNCTIONS

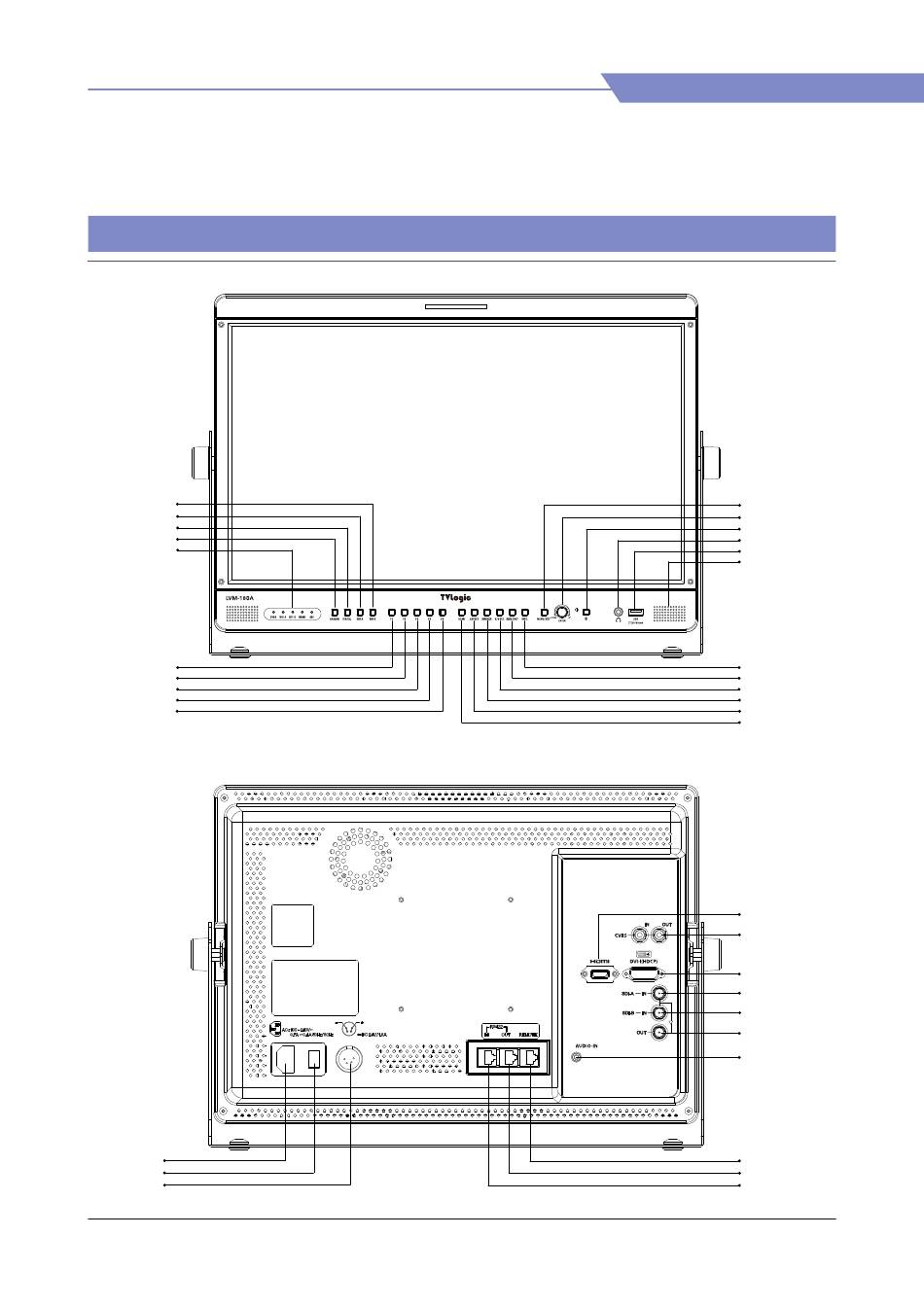

LVM-180A ALL PART (FRONT / REAR)
SDI-B
SDI-A
DIGITAL
ANALOG
INPUT SIGNAL
INDICATOR
F1
F2
F3
F4
F5
POWER S/W
AC IN
DC IN
Multi Format LCD Monitor
MENU/EXIT
ENTER/UP/DOWN
POWER
PHONE JACK
USB
SPEAKER
INFO
BLUE ONLY
H/V DELAY
MARKER
ASPECT
SCAN
HDMI
CVBS IN-OUT
DVI-I(HDCP)
SDI-A IN
SDI-B IN
SDI-OUT
AUDIO-IN
REMOTE
RS-422 OUT
RS-422 IN
