05 MENU OPERATIONS

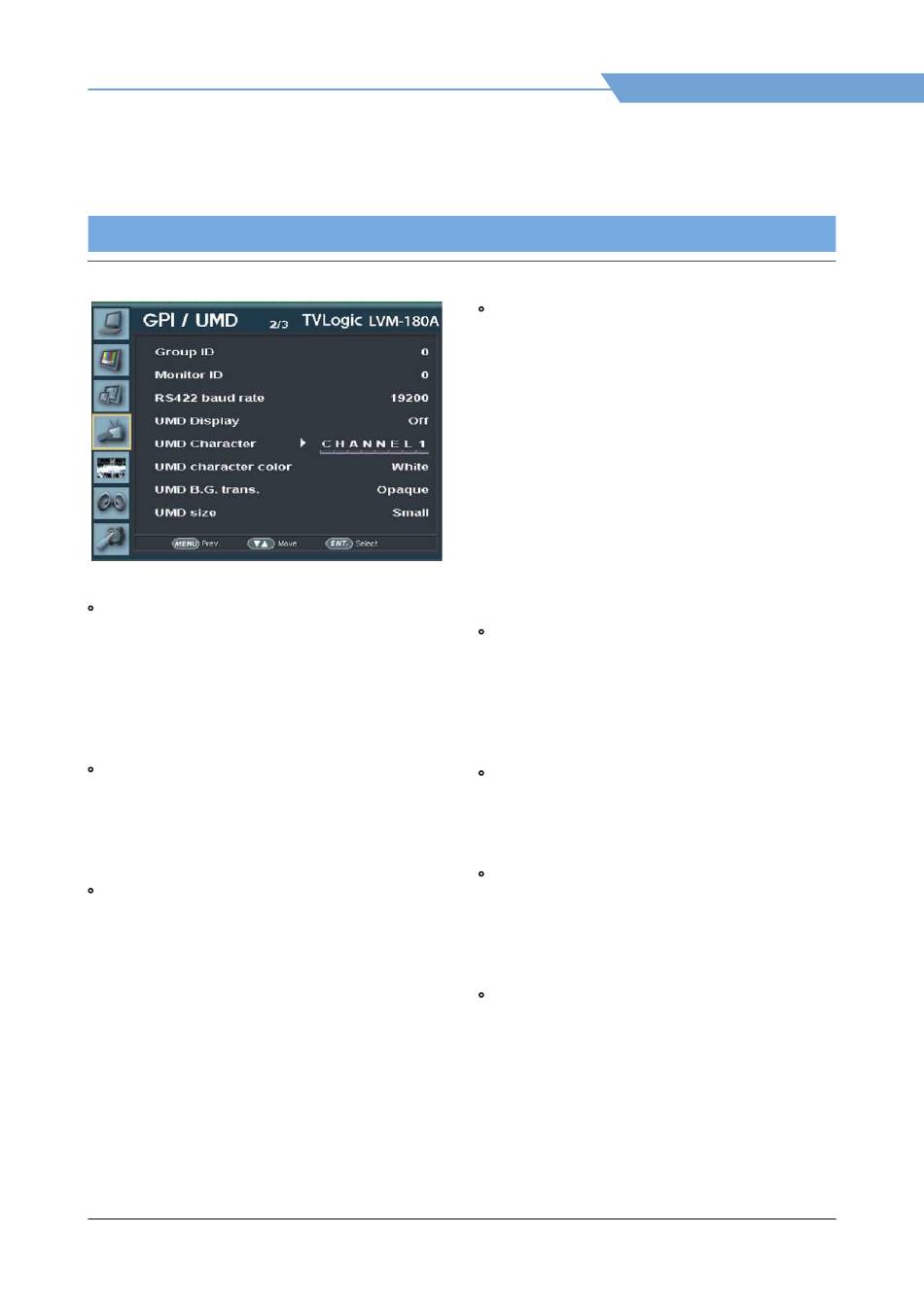

[4] GPI / UMD
• Group ID
- This menu is used to group the monitors and
control the monitors by group when you
control the monitors with the protocol
provided by TVLogic, using RS-422/485
communication or Network.
- Available setting is [0] to [16].
• Monitor ID
- This menu sets the ID of each monitor for the
TVLogic control protocol or DYNAMIC UMD
using RS-422/485 communication.
- Available setting is [0] to [124].
• RS422 baud rate
- The items sets the monitor control program
that TVLogic provides and Baud rate.
- Available setting is [9600], [19200], [38400],
[57600], [115200].
• UMD Display
- This menu sets UMD, ANC and DYNAMIC UMD.
- UMD: Displays user customized characters on
screen.
- ANC: Displays characters embedded in SDI
signal.
*D-UMD(TVL_S8C): Displays the tally signal and
8 letters that are input by TSL protocol (V3.1)
on the screen.
*D-UMD(TVL_S16C): Displays the tally signal
and 16 letters that are input by TSL protocol
(V3.1) on the screen.
*D-UMD(TVL_D8C) : Displays a pair of tally
signal and a pair of 8 letters that are input by
TSL protocol (V3.1) on the screen.
• UMD Character
- This menu is used to customize the characters
for UMD.
- Alphabets, numbers and special symbols are
available.
- Maximum of 8 characters.
• UMD character color
- This menu sets the color of the UMD letter.
- Available mode is [Green], [Blue], [Yellow],
[Cyan], [Magenta], [White], [Red].
• UMD B.G. trans.
- This menu sets the transparency of UMD letter
box.
- The selectable modes are [Opaque], [50%],
[85%] and [100%].
• UMD size
- This menu sets the font size of UMD and the size
of UMD letter box.
- The selectable items are [Small] and [Large].
