05 MENU OPERATIONS

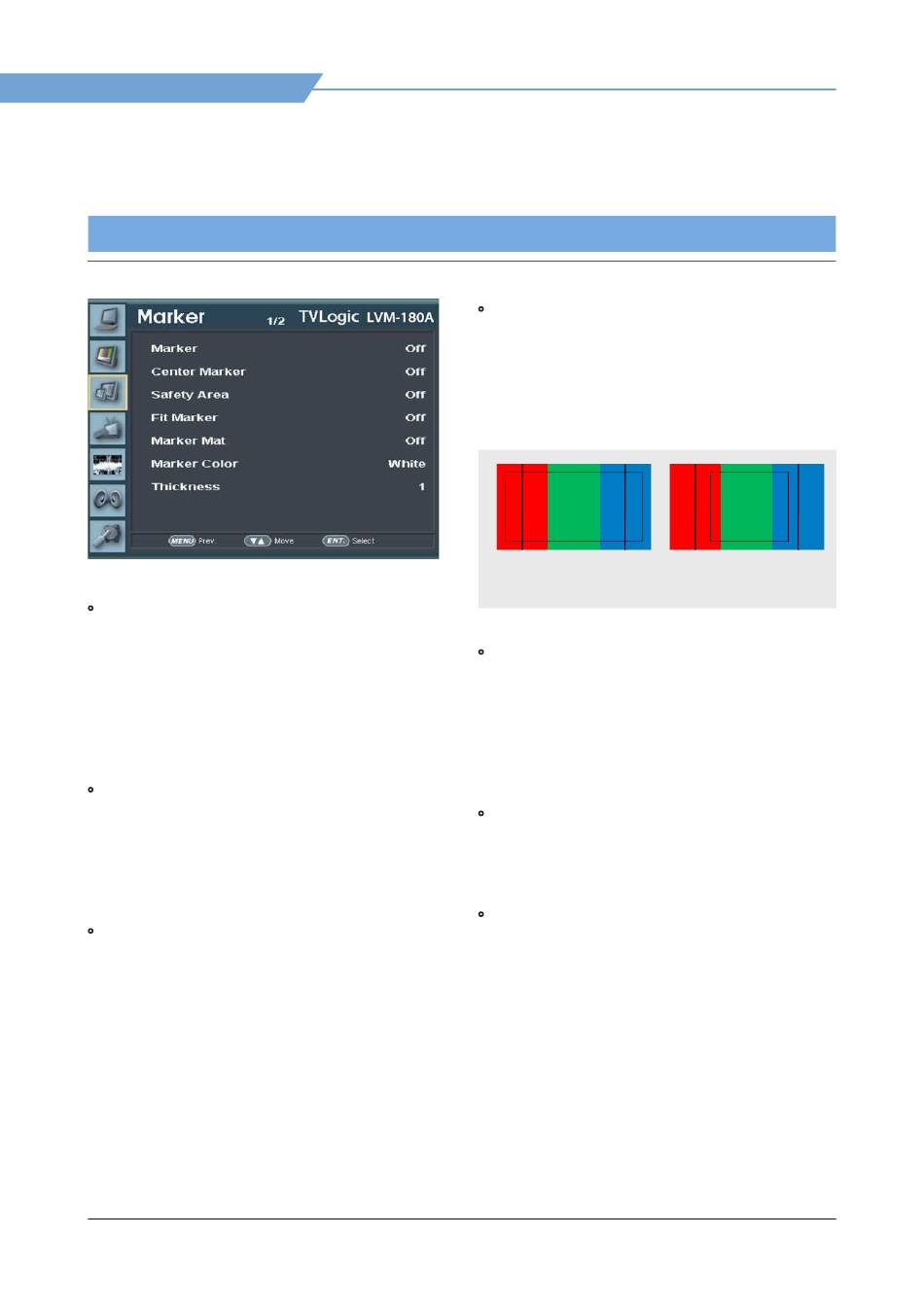

[3] MARKER
• Marker
- This menu selects the marker type when the
MARKER is displayed on the screen.
- Marker may only be activated by pressing the
MARKER button on the front of the monitor.
- Available marker types are [OFF], [16:9], [4:3],
[4:3 ON AIR], [15:9], [14:9], [13:9], [1.85:1],
[2.35:1], [1.85:1 & 4:3] and [USER].
• Center Marker
- This menu displays the CENTER MARKER on
the screen.
- The function operates only after activating
the MARKER function by pressing the MARKER
button on the front of the monitor.
• Safety Area
- This menu controls the size of the SAFETY AREA.
- Available types are [80%], [85%], [88%], [90%],
[93%], [100%], [EBU ACTION 16:9],
[EBU GRAPHIC 16:9], [EBU ACTION 14:9],
[EBU GRAPHIC 14:9], [EBU ACTION 4:3],
[EBU GRAPHIC 4:3].
- This function operates only after activating the
MARKER function by pressing the MARKER
button on the front of the monitor.
16
• Fit Marker
- This menu activates the FIT MARKER function.
- With FIT MARKER On, the Safety Area is displayed
relative to the marker in use. With FIT MARKER
Off, the Safety Area is displayed relative to the
incoming source.
- FIT MARKER acts as below:
MARKER : 4:3
SAFETY AREA : 90%
FIT MARKER : OFF
• Marker Mat
- This menu darkens the area of the outside of
MARKER.
- The degrees of darkness are between
[Off ] and [7].
- The higher the degree is, the darker the outside
of the Marker area is.
• Marker Color
- This menu controls the color of the Marker lines.
- Available colors are [White], [Gray], [Black],
[Red], [Green] and [Blue].
• Thickness
- This menu controls the thickness of the Marker
lines.
- The degrees of thickness are between
[1] and [7].
MARKER : 4:3
SAFETY AREA : 90%
FIT MARKER : ON
