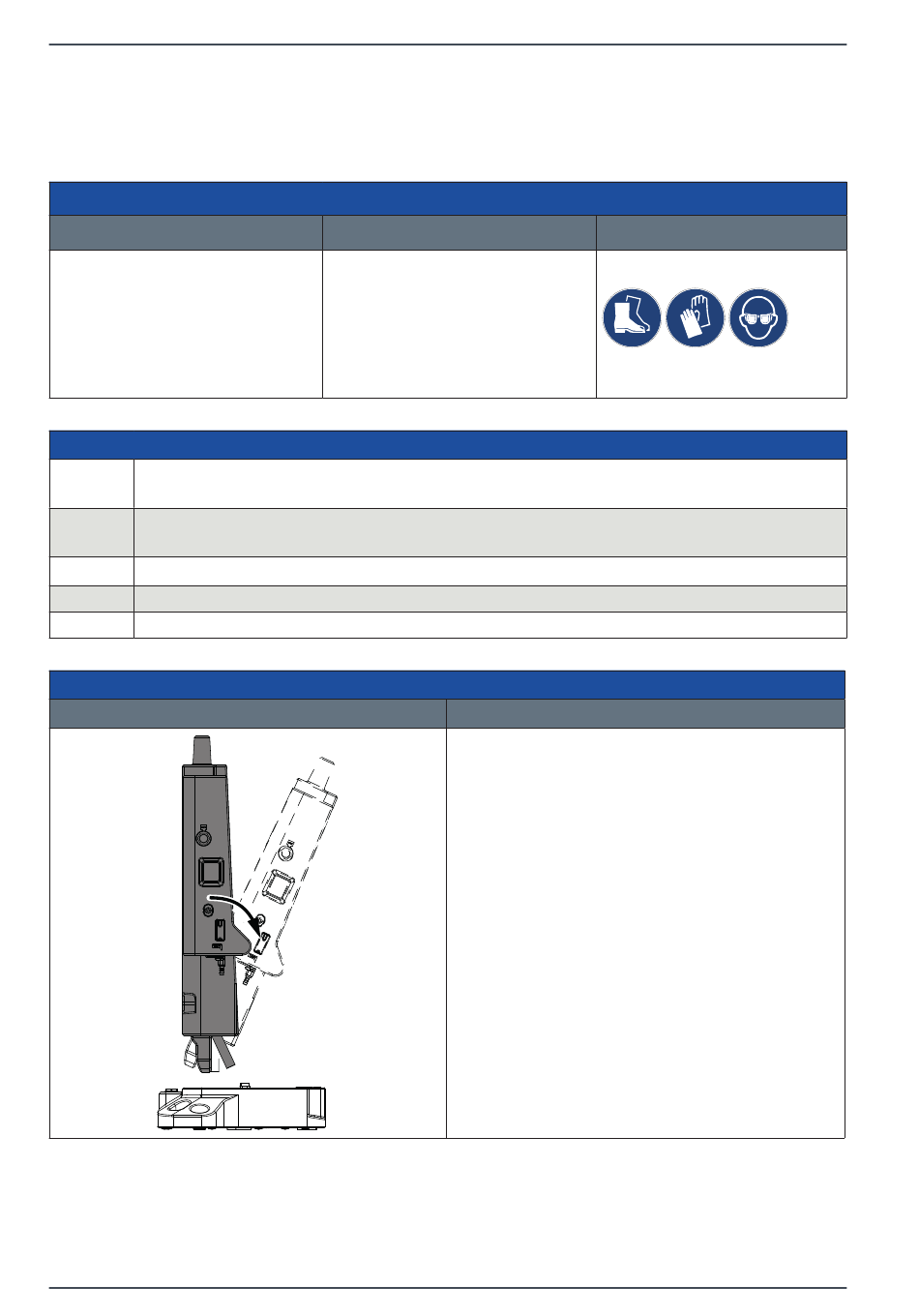

6.2 Installation work
The following prerequisites must be met before carrying out assembly work, and all preparation work must be
completed first.
Tool
•
Adjustable wrench
•
Water pump pliers
•
Spirit level
1.
Select and set up the place of installation according to the specifications in section "4.6
Assembly conditions" on page 22.
2.
The condensate inlet line provided by the customer must be depressurized and locked and
tagged out to prevent unintentional pressurization.
3.
Have the necessary tools and materials ready.
4.
Provide required connection materials suitable for the pressure range and temperature range.
5.
Check the product for damage. Use the product only in undamaged condition.
26 | 64
Preconditions
Material
•
Sealing material (e.g. PTFE tape)
for sealing the condensate
connections provided by the
customer
•
Hose clamps
•
Hose for condensate
Preparatory work
Installation work
Description / explanation
1. Position the collector on a flat surface.
2. Align the foot with the positioning tubes facing
downwards and position it over the assembly
opening.
3. Tilt the upper end of the foot towards the filter
cartridge holder until the positioning tubes are
vertical.
Installation and operating manual
Protective equipment
To be worn at all times:
