4.6 Assembly conditions

Observe the following conditions when setting up and selecting the place of installation:
• The place of installation must meet the following conditions:
0 Indoors
0 Protected from mechanical loads
0 Protected from splash water
0 Protected from direct sunlight and areas exposed to heat sources
0 Protected from frost
0 Outside of hazardous locations
• The setup area must be level (gradient ≤18 mm/m (1/3 in/ft)) and smooth.
• The setup area's load capacity must be suitable for the maximum operating weight of the
QWIK-PURE CS (refer to section "4.1 QWIK-PURE® CS operating parameters" on page 19).
®
• The setup area must be sealed, or a suitable spill protection basin must be in place.
0 In the event of damage, no untreated condensate or oil may get into the sewer system or the soil.
0 All locally applicable standards and regulations regarding the protection of bodies of water must be
complied with.
• Bumper guards must be installed if the product is being set up in the vicinity of traffic routes.
• The cross-sectional area of the condensate collection line must be greater than G1" (Ø = 25 mm).
• Route the condensate collection line with a gradient ≥ 50 mm/m (2/3 in/ft) to the place of installation for
the QWIK-PURE CS.
®
• The manufacturer recommends installing a P-trap at the wastewater connection in order to prevent
unpleasant odors.
• The manufacturer recommends installing a 3-way valve at the tapping point on the condensate collection
line to divert the condensate inlet into a separate container during maintenance work.
22 | 64

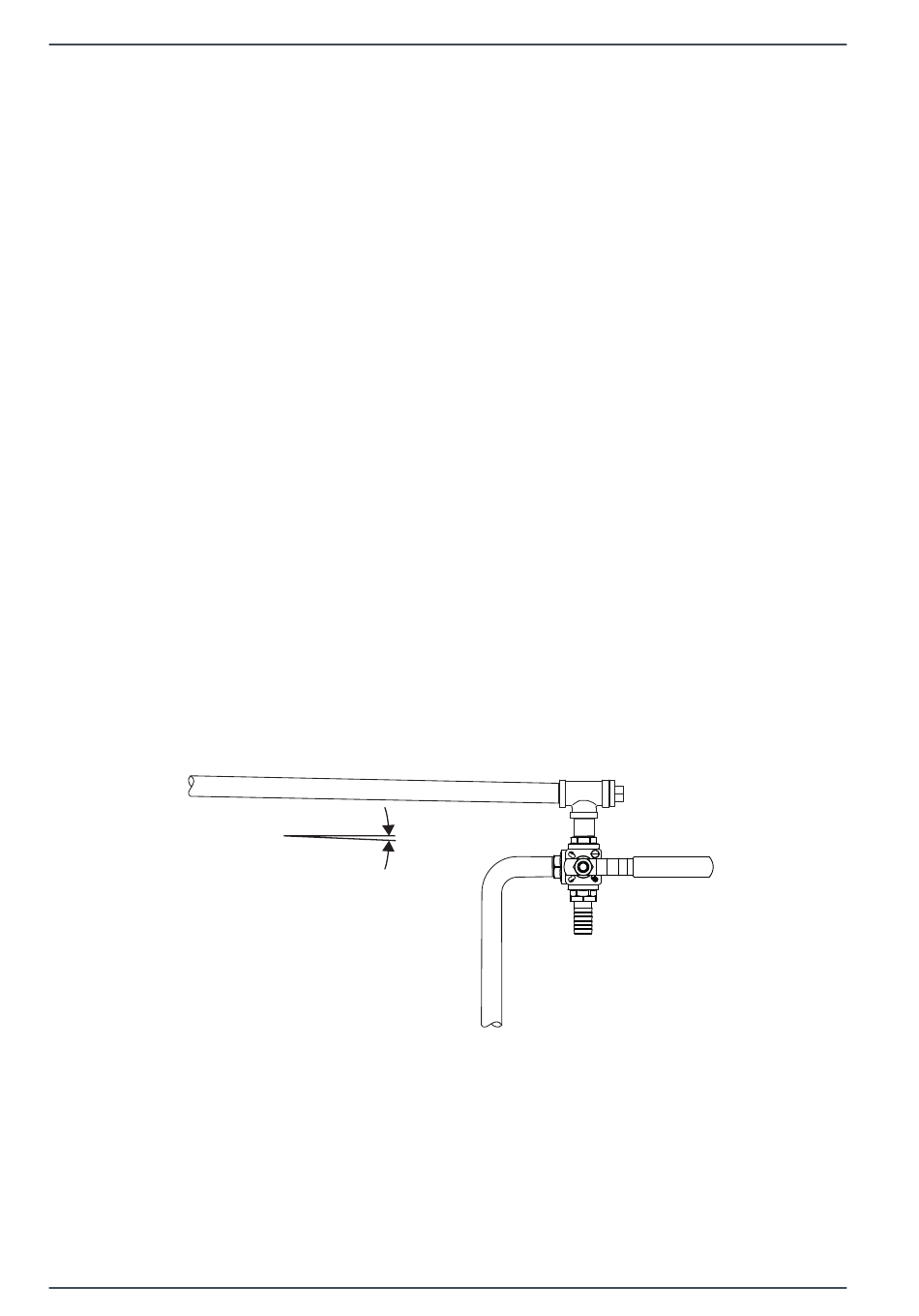

50 mm/m
