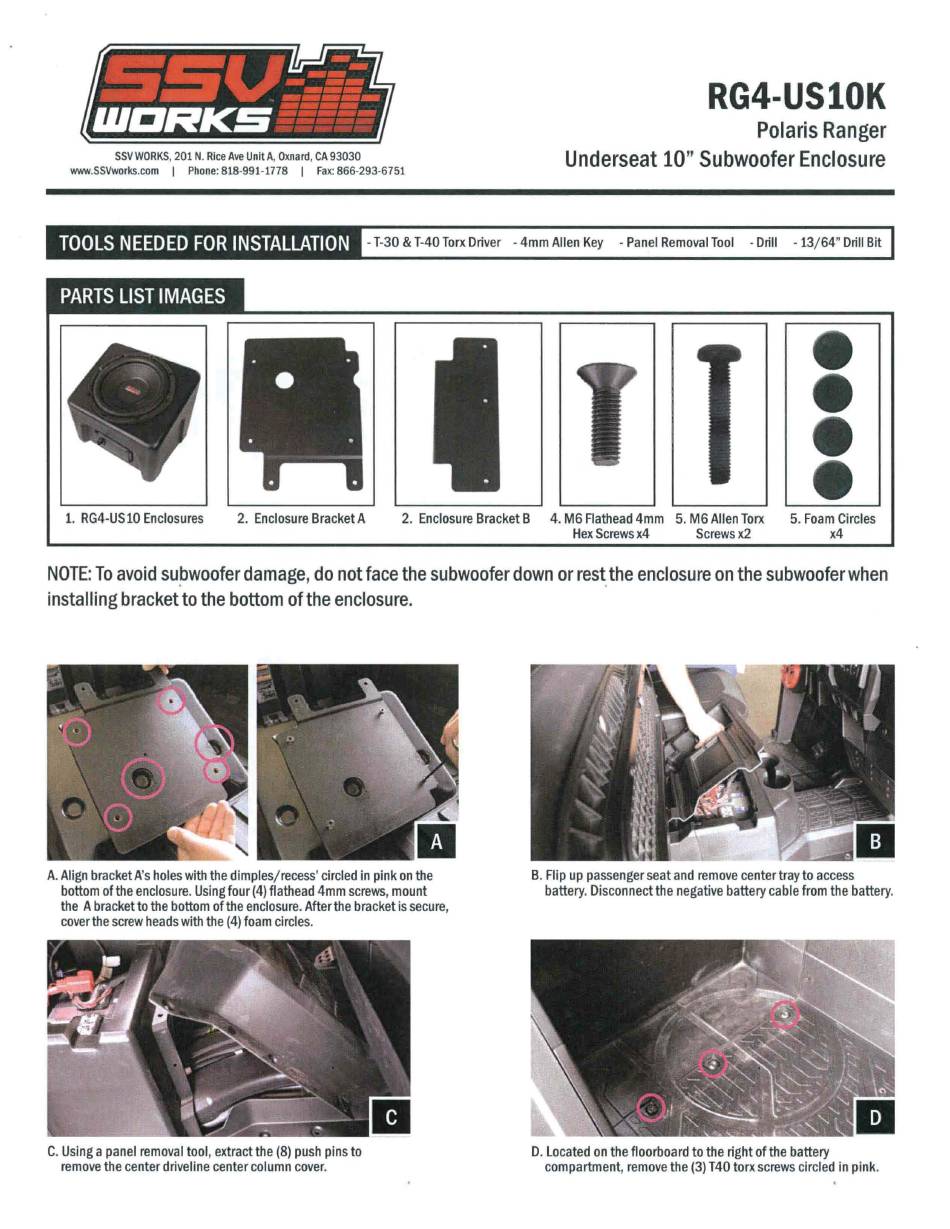

RG4-US10K
Polaris Ranger
Underseat 10" Subwoofer Enclosure
TOOLS NEEDED FOR INSTALLATION
PARTS LIST IMAGES
- T-30 & T-40 Torx Driver - 4mm Allen Key - Panel Removal Tool - Drill -13/64" Drill Bit
• •
• •
1.
RG4-US10 Enclosures 2. Enclosure Bracket A 2. Enclosure Bracket B 4. M6 Flathead 4mm 5. M6 Allen Torx 5. Foam Circles
Hex Screws x4 Screws x2 x4
NOTE: To avoid supwoofer damage, do not face the subwoofer down or rest.the enclosure on the subwooferwhen
installing bracket to the bottom of the enclosure.
A. Align bracket A's holes with the dimples/recess' circled in pink on the
bottom of the enclosure. Using four (4) flathead 4mm screws, mount
the A bracket to the bottom of the enclosure. After the bracket is secure,
cover the screw heads with the (4) foam circles.
C. Using a panel removal tool, extract the (8) push pins to
remove the center driveline center column cover.
B. Flip up passenger seat and remove center tray to access
battery. Disconnect the negative battery cable from the battery.
D. Located on the floorboard to the right of the battery
compartment, remove the (3) T40 torx screws circled in pink.
