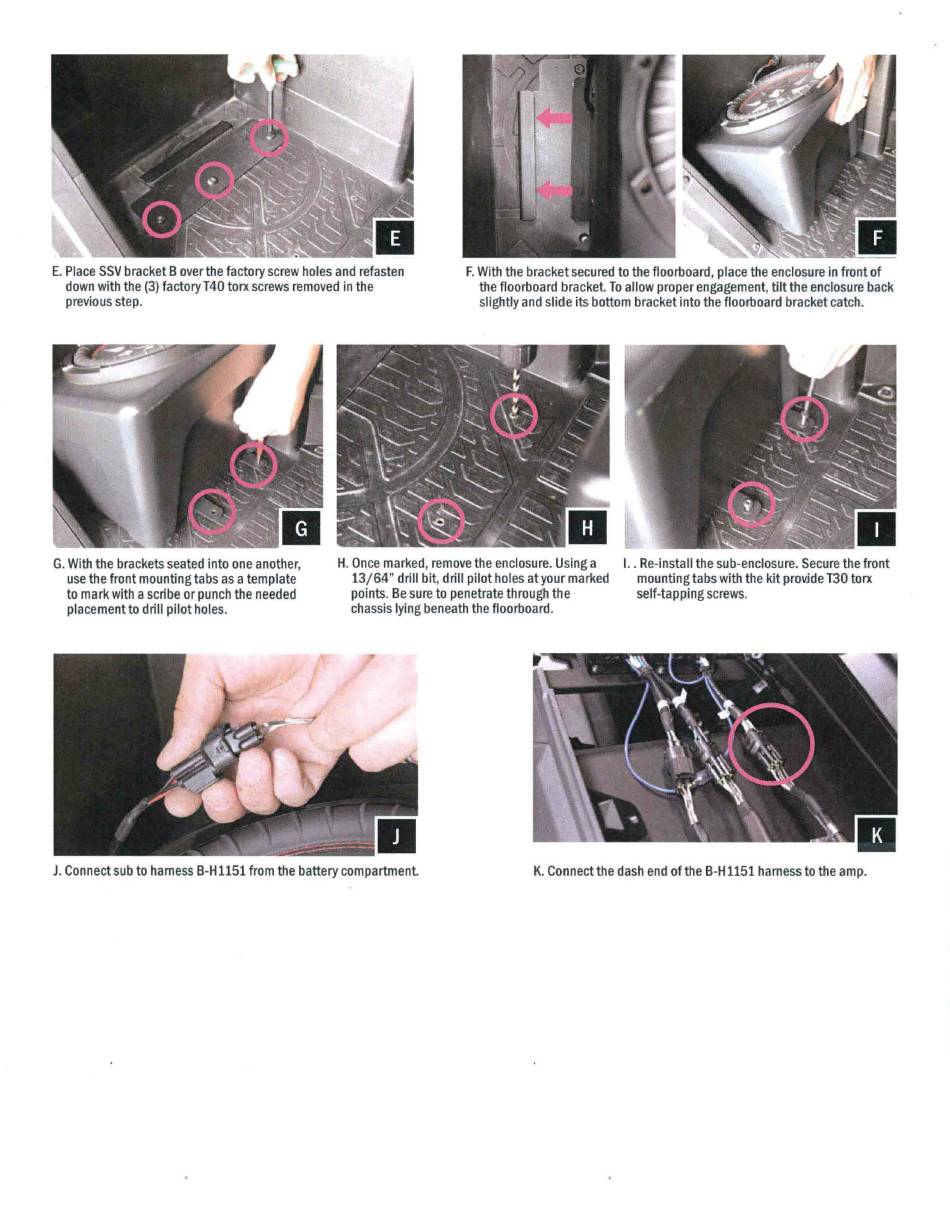

E. Place SSV bracket B over the factory screw holes and refasten
down with the (3) factory T40 torx screws removed in the
previous step.
F. With the bracket secured to the floorboard, place the enclosure in front of
the floorboard bracket. To allow proper engagement, tilt the enclosure back
slightly and slide its bottom bracket into the floorboard bracket catch.
G. With the brackets seated into one another,
use the front mounting tabs as a template
to mark with a scribe or punch the needed
placement to drill pilot holes.
H. Once marked, remove the enclosure. Using a
13/6!1" drill bit, drill pilot holes at your marked
points. Be sure to penetrate through the
chassis lying beneath the floorboard.
I . . Re-install the sub-enclosure. Secure the front
mounting tabs with the kit provjde T30 torx
self-tapping screws.
J.
Connect sub to harness 8-H 1151 from the battery compartment. K. Connect the dash end of the 8-H 1151 harness to the amp.
