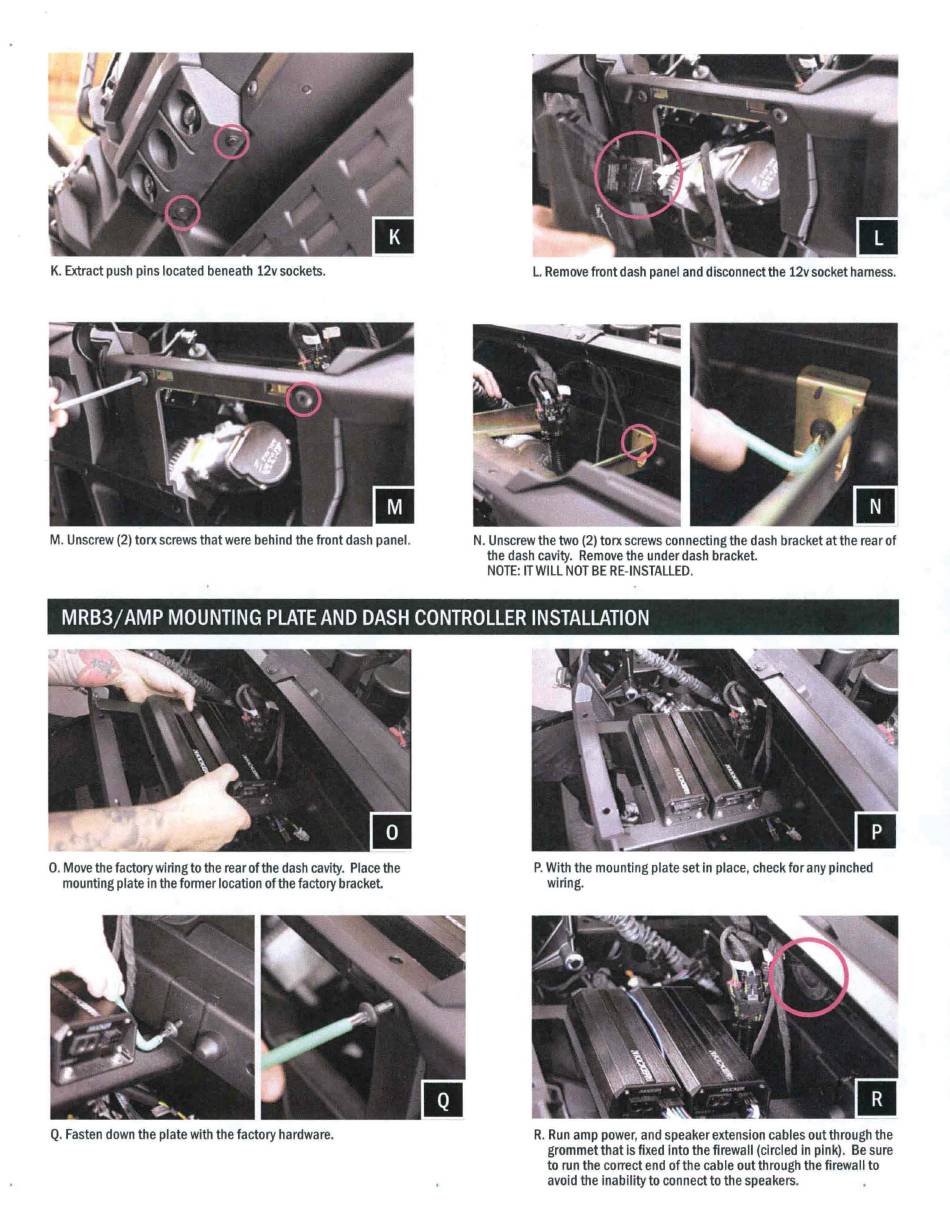

SSV Works RG4-5KRC Manual page 3

K. Extract push pins located beneath 12v sockets.
M. Unscrew (2) torx screws that were behind the front dash panel.
L. Remove front dash panel and disconnect the 12v socket harness.
N. Unscrew the two (2) torx screws connecting the dash bracket at the rear of
the dash cavity. Remove the under dash bracket.
NOTE: IT WILL NOT BE RE-INSTALLED.
MRB3/ AMP MOUNTING PLATE AND DASH CONTROLLER INSTALLATION
0. Move the factory wiring to the rear of the dash cavity. Place the
mounting plate in the fonner location of the factory bracket.
Q. Fasten down the plate with the factory hardware.
P. With the mounting plate set in place, check for any pinched
wiring.
R. Run amp power, and speaker extension cables out through the
grommet that is fixed into the firewall (circled in pink). Be sure
to run the correct end of the cable out through the firewall to
avoid the inability to connect to the speakers.
