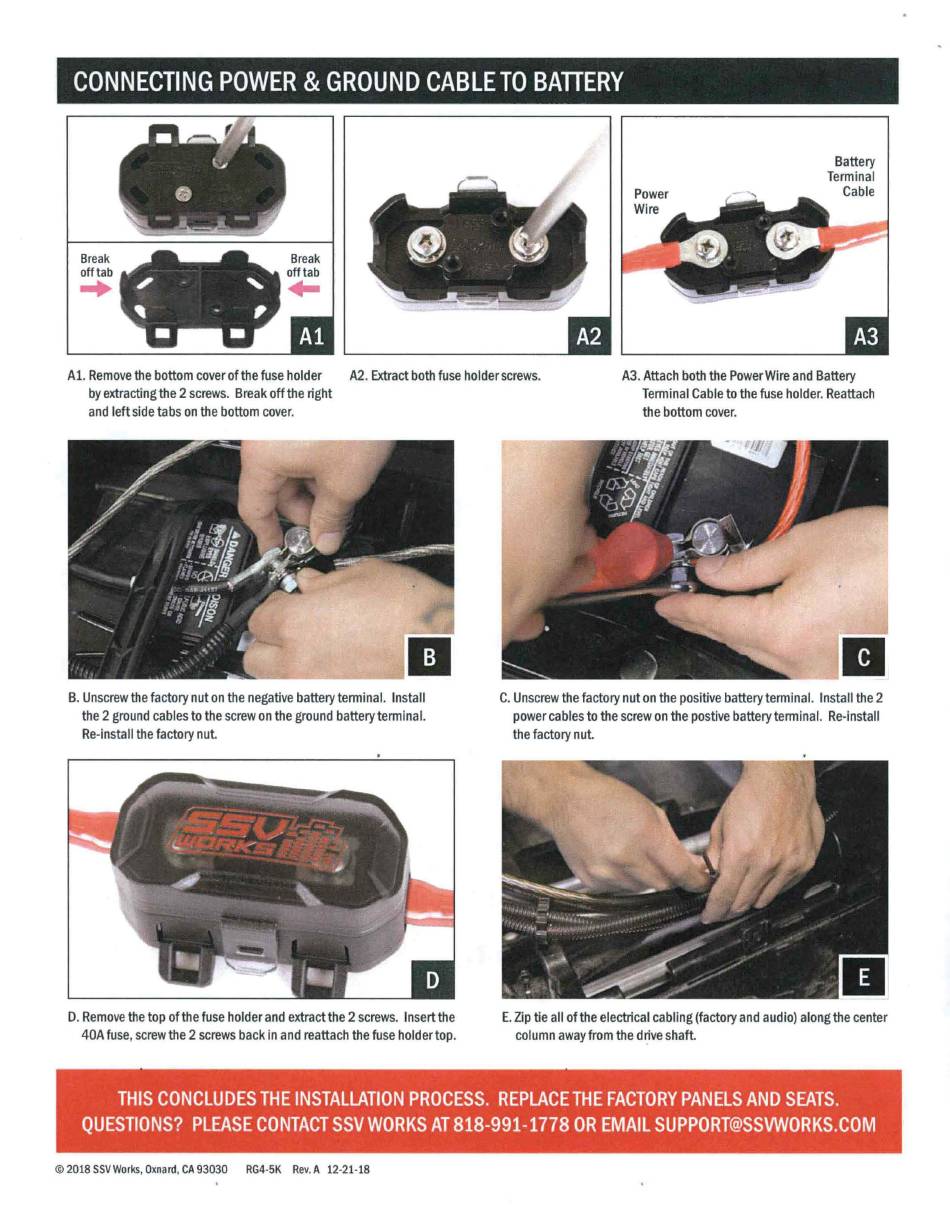

CONNECTING POWER & GROUND CABLE TO BATTERY
Break
off tab
...
Power
Wire
Battery
Terminal
Cable
Al. Remove the bottom cover of the fuse holder A2. Extract both fuse holder screws. A3. Attach both the Power Wire and Battery
Terminal Cable to the fuse holder. Reattach
the bottom cover.
by extracting the 2 screws. Break off the right
and left side tabs on the bottom cover.
II
B. Unscrew the factory nut on the negative battery terminal. Install
the 2 ground cables to the screw on the ground battery terminal.
Re-install the factory nut
D. Remove the top of the fuse holder and extract the 2 screws. Insert the
40A fuse, screw the 2 screws back in and reattach the fuse holdertop.
■
C. Unscrew the factory nut on the positive battery terminal. Install the 2
power cables to the screw on the postive battery terminal. Re-install
the factory nut.
E. Zip tie all of the electrical cabling (factory and audio) along the center
column away from the drive shaft.
THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS.
