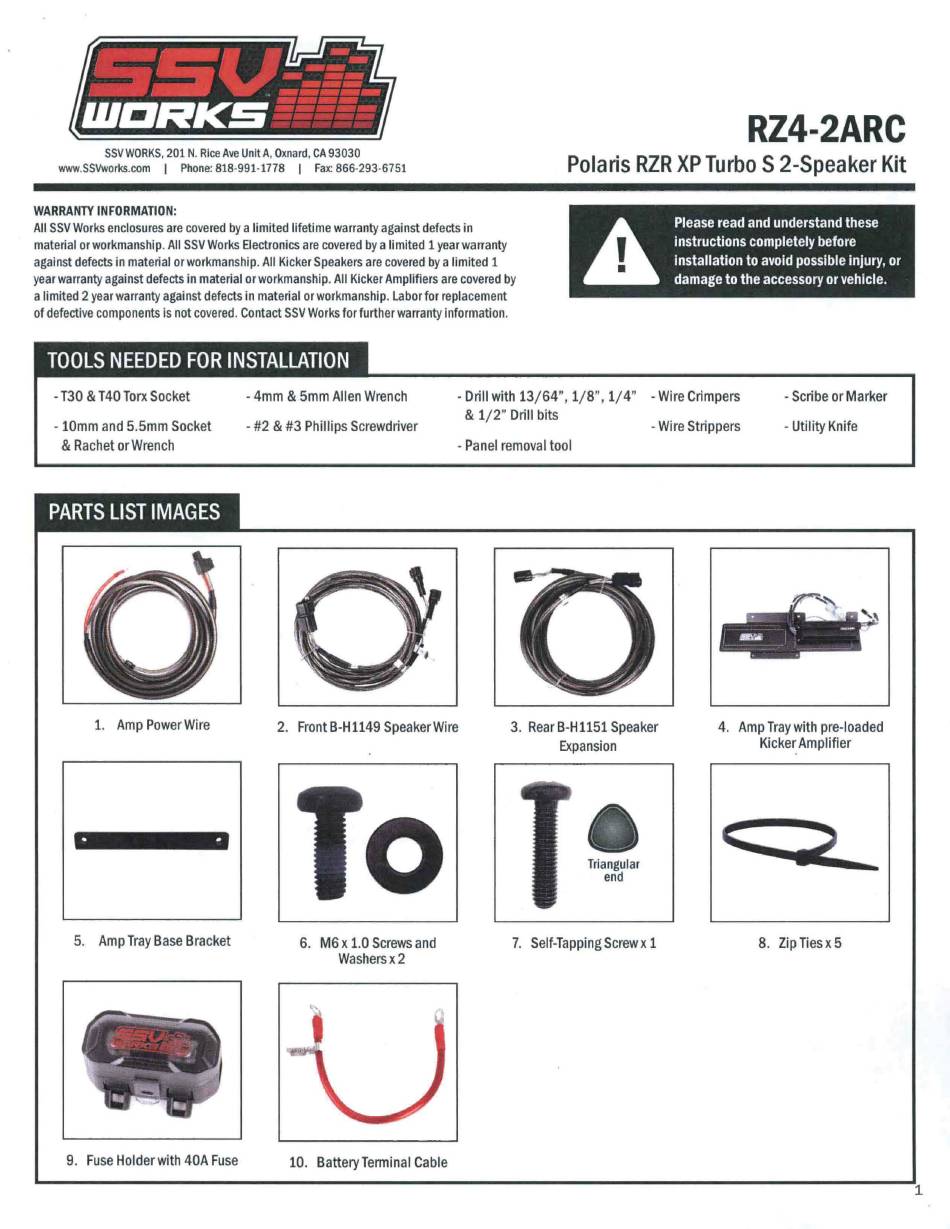

SSV
WORKS,
201 N. Rice Ave Unit
A,
Oxnard,
CA 93030
www.SSVWorks.com
I
Phone:
818-991 -1778
I
Fax:
866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSVWorks Electronics are covered by a limited 1 year warranty
against defects in material or
workmanship.
All Kicker Speakers are covered by a limited 1
year warranty against defects in material or
workmanship.
All Kicker Amplifiers are covered by
a limited 2 year warranty against defects in material or
workmanship.
Labor for replacement
of defective components is not covered. Contact SSV Works for further warranty
information.
TOOLS NEEDED FOR INSTALLATION
RZ4-2ARC
Polaris RZR XP Turbo S 2-Speaker Kit
A
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
- T30
&
T40 Ton< Socket
- 4mm & 5mm Allen Wrench
-
Drill with
13/64", 1/8", 1/4"
-
Wire Crimpers
- Scribe or Marker
-
10mm and 5.5mm Socket
&
Rachet
or
Wrench
PARTS LIST IMAGES
1. Amp Power Wire
5.
Amp Tray Base Bracket
9. Fuse Holder with 40A Fuse
-
#2
&
#3 Phillips Screwdriver
&
1/2"
Drill bits
-
Wire Strippers
-
Utility Knife
-
Panel removal tool
2.
Front B-H 1149 Speaker Wire
6. M6 x 1.0 Screws and
Washersx2
10.
Battery Terminal Cable
3.
Rear B-H 1151 Speaker
Expansion
Triangular
end
7. Self-Tapping Screw x 1
4. Amp Tray with pre-loaded
Kicker Amplifier
<
8. Zip Ties x 5
1
