Adjust the transmission chain

·Too tight or loose the chain are both incorrect.
·Too loose the chain may make it drop from sprocket wheel which
lead to accident.
·Too tight the chain may decrease its working life while increasing
the transmission resistance.

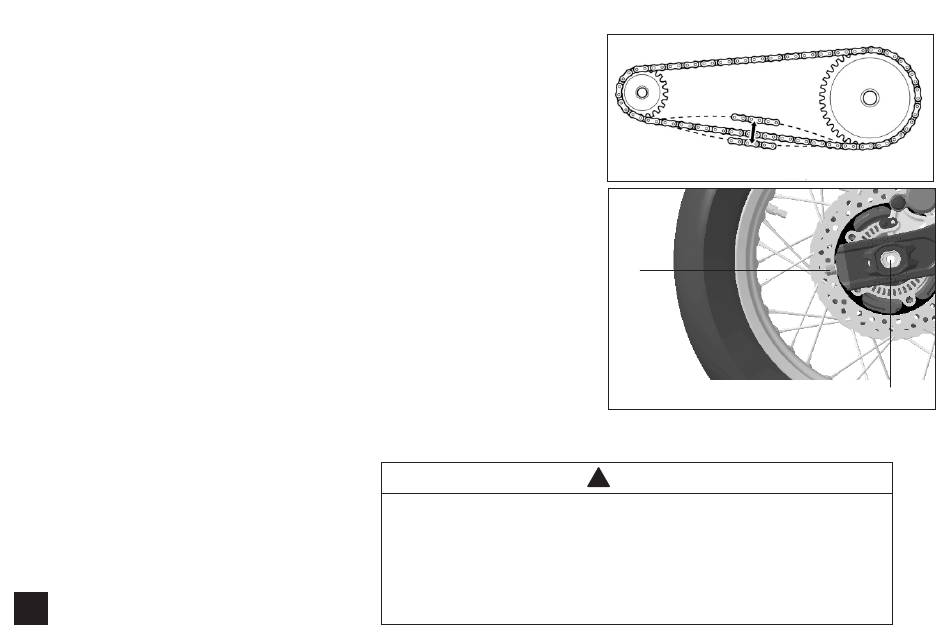

The correct tightness is shown as picture:
In case your chain fell short of meeting the requirement above,
the adjustment is needed and shown as below:
·Make the motorcycle upright by parking stand.
·Turn and loosen the nut 1 on rear wheel axle and adjusting nut 2,
then adjust the bolt according to the tightness.
·In case too loose the chain, turn the bolt anticlockwise.
·In case too tight, turn the bolt clockwise and powerfully push the
rear wheel for ward to get looser.
·When the tightness is suitable, adjust the bolt both sides for fine
adjustment, and align the scale marks on adjusting piece and rear
fork .
·Lock up the nut 1 on rear wheel axle and
adjusting nut 2 both sides.
Specification for transmission chain:
Type: 520 Links: 118
Oil-sealed chain without opening
70
This chain adopted clamping ring without opening
one with opened clamping ring is not allowed
may drop and lead to accident
Replace this kind of chain needs special tool
riveting of clamping ring without opening may also drop
and lead to accident
.
20~30mm
2
Fastening torque of adjusting nut: 22NM
Fastening torque of rear wheel axle: 95NM
!
Danger
,
.
the poor
,
1
use the
,
or the chain
