- Page 1 User Manual TP-series TPMS Diagnostic Tool Version 3.0 Revise date 2023/07 Shenzhen Xtooltech Intelligent Co., LTD...
-
Page 2: Cautions
Please use soft and non-abrasive cleaner and soft cotton cloth to clean keyboard and display screen. Do not use solvent (like alcohol) to clean device. FTERSALES ERVICES XTOOL strives to provide best-in-class support! E-Mail: supporting@xtooltech.com Tel: +86 755 21670995 or +86 755 86267858 (China) Official Website: www.xtooltech.com... -
Page 3: Table Of Contents
ONTENT OPERATION INSTRUCTIONS ..........................I CAUTIONS! ................................I AFTERSALES-SERVICES ........................... I CONTENT ................................I 1. GENERAL INTRODUCTION ........................... 3 Main Units ..................................3 Vehicle Communication ..............................4 Sensor Triggering ................................5 Charging the Device ................................5 2. TPMS FUNCTIONS ............................6 Main Menu & Model Selection ............................6 Sensor Check &... - Page 4 Sensor ID Format Settings .............................. 12 District Settings ................................12 Auto Power-off Settings ..............................12 Sound Settings ................................12 4. UPDATE ................................. 13 Wi-Fi Update ..................................13 PC Update ..................................14 5. WARRANTY & SERVICES ..........................15 6. APPENDIX ..............................16 Trademarks ..................................16 Copyright ..................................
-
Page 5: General Introduction

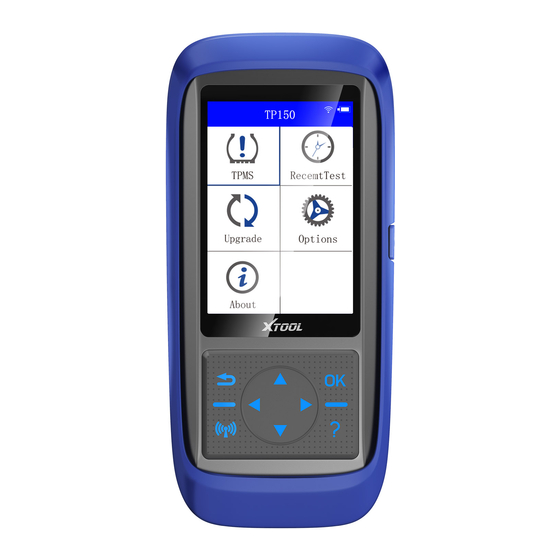

TP-series (TP150/TP200) is a smart TPMS Diagnostic Tool powered by Xtooltech. This product support TPMS DTC code check & live data for most of the vehicles on the market, 315/433MHz tire-pressure sensor check, read OEM sensor ID and program it into Xtool universal tire-pressure sensors. This tool can perform such functions: ... -
Page 6: Vehicle Communication
XTOOL technical service department; 4. Only wiring harnesses provided by XTOOL and designed for the scan tool are permitted to be used with this scan tool to avoid damage to the vehicle or the tool;... -
Page 7: Sensor Triggering
5. When running a Diagnostics function, DO NOT shut down the scan tool directly. You should cancel the task before returning to the main interface and then shutting down the tool. SENSOR TRIGGERING The picture on the left shows how the device can trigger the tire-pressure sensor. 1. -
Page 8: Tpms Functions
Diagnostics: Check & clear the fault codes that are inside the system, and check the sensor IDs saved inside the system. Programming: Program XTOOL tire-pressure sensors to make them fit inside the vehicle. Relearn: After installation, if the ID of the sensor doesn’t match the ... -
Page 9: Sensor Check & Triggering
SENSOR CHECK & TRIGGERING When checking the sensors, the tool will tell you which tire should be triggered first, with the tire highlighted on the screen. You can also select the tire to be triggered using the directions buttons. When triggering, put the top of the tool close to the sensor (or the valve on the tire) and click button. -
Page 10: Sensor Programming
SENSOR PROGRAMMING You can program Xtool sensors by this menu. Programmed sensors can be installed into the tires, replacing the OEM sensor. There are 4 ways to program the sensors, and the method will be listed as follows. AUTO-CREATE ID This function allows you to program up to 8 sensors at once with random-generated IDs. -
Page 11: Manually Input Id
COPY ID VIA ACTIVATION This allows you to get the ID from activation and program the ID in XTOOL sensor. Before doing that, make sure you have already checked the sensors on the vehicle. -
Page 12: Copy Id Via Ecu Info
Click “Back” button and detect again. COPY ID VIA ECU INFO This allows you to get the ID from TPMS info and program the ID in XTOOL sensor. Before doing that, make sure you have already done diagnostics to the TPMS. -
Page 13: Tpms Relearn
IDs are the same with the original one. If it is not matched with the original one and you are using XTOOL sensors, go to “Programming” menu and copy the sensors via activation or OBD. -
Page 14: Settings
3. S ETTINGS Click the Settings button to adjust the default settings. WIFI SETTINGS Select available Wi-Fi hotspot and connect. For more information, please check “Update”. UPDATE Use this menu to update the software. For more information, please check “Update”. PRESSURE UNIT SETTINGS Select the pressure unit shown on the device. -
Page 15: Update
4. U PDATE This tool can be updated by Wifi connection or PC update tool. We will be introduce them one by one. WI-FI UPDATE Before doing that, please go to Wifi settings, turn on Wi-Fi and select the network you want to connect. Input password, then click to connect. -
Page 16: Pc Update
PC UPDATE Download “TP200 Installer” on XTooltech official website. Link: https://down.xtooltech.com/misc/TP200Installer_v1.0.3.0.zip Install TP200 Installer, and connect the tool to the PC. After installation is done, log in the app by putting in the serial number and password. You can find them in the qualification certificate, or go to Settings –... -
Page 17: Warranty & Services
ARRANTY ERVICES Shenzhen XTOOLtech Intelligent Co., LTD.(the Company) warrants to the original retail purchaser of this XTOOL device that should this product or any part thereof during normal usage and under normal conditions be proven defective in material or workmanship that results in product failure within ONE YEAR from the date of purchase, such defect(s) will be repaired, or replaced (with new or rebuilt parts) with Proof of Purchase, at the Company’s option, without charge for parts... -
Page 18: Appendix
This manual is designed for the usage of the TP-series TPMS Diagnostics Tool and provides operating instructions and product descriptions for users of this scan tool. Use the device only as described in this manual. XTOOL is not responsible for any consequences of violating the laws and regulations caused by using the product or its data information. - Page 19 SHENZHEN XTOOLTECH INTELLIGENT CO., LTD COMPANY ADDRESS: 17&18/F, BUILDING A2, CREATIVITY CITY, LIUXIAN AVENUE, NANSHAN DISTRICT, SHENZHEN, CHINA FACTORY ADDRESS: 2/F, BUILDING 12, TANGTOU THIRD INDUSTRIAL ZONE, SHIYAN STREET, BAOAN DISTRICT, SHENZHEN, CHINA SERVICE-HOTLINE: 0086-755-21670995/86267858 EMAIL: MARKETING@XTOOLTECH.COM FAX: 0755-83461644 WEBSITE: WWW.XTOOLTECH.COM...
