TP150 Tire Pressure Diagnosis Tool
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for Xtool TP150

Summary of Contents for Xtool TP150

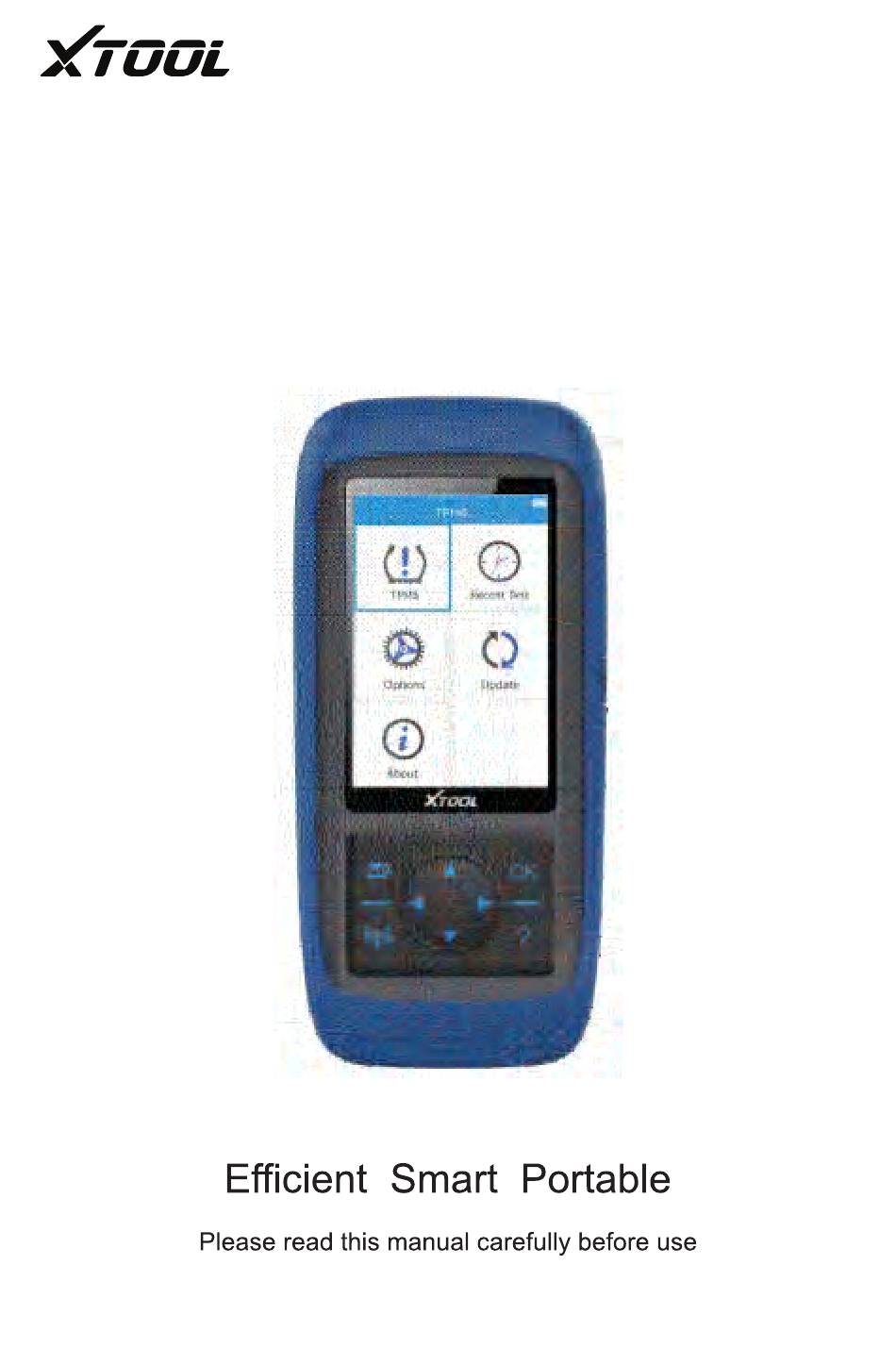

  • Page 1 TP150 Tire Pressure Diagnosis Tool Operation Manual...
  • Page 3 TP150 Tire Pressure Diagnosis Tool Brand: Shenzhen Xtooltech Intelligent Co., Ltd has finished the trademark registration，the logo is Shenzhen Xtooltech Intelligent Co., Ltd brand、service mark、 domain name、icon and company name which countries have not registered， Shenzhen Xtooltech Intelligent Co., Ltd declares it still has ownership for brand service mark、domain name、icon and company name which are not registered.

  • Page 4: Table Of Contents

    TP150 Tire Pressure Diagnosis Tool Catalog Chapter One Product cognition..................3 1.1 Product overview....................3 1.2 Appearance and interface..................3 Chapter Two Product usage..................6 2.1 Tire pressure diagnostic function................6 2.1.1 Main menu......................6 2.1.2 Test vehicle information selection............... 7 2.2 Tire pressure service interface................

  • Page 5: Chapter One Product Cognition

    Chapter One Product cognition 1.1 Product overview TP150 tire pressure diagnostic tool is equipped read、clear tire pressure fault code， trigger tire pressure sensor、acquire tire pressure sensor ID、tire pressure、temperature and state of battery. It provide tire pressure sensor learning method，support program Xtool programmable popular type tire pressure sensor.

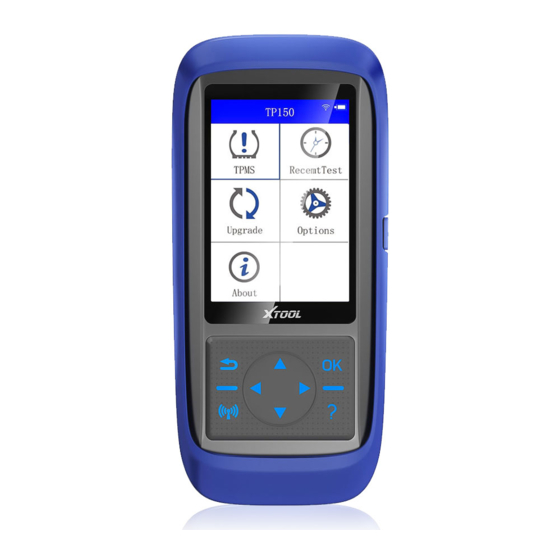

  • Page 6 TP150 Tire Pressure Diagnosis Tool 1.Display the device state of charge 2.Display product function menu 3.Cancel selection（or operation）or return the upper menu 4.Up/down key: Remove the menu up and down in menu mode Left/right key: View previous/next screen information 5.Trigger tire pressure sensor to test or program tire pressure sensor 6.Conect tire pressure portable device with OBDII interface of vehicle...
  • Page 7 TP150 Tire Pressure Diagnosis Tool 1.5 Keyboard Please use soft and non-abrasive cleaner and soft cotton cloth to clean keyboard and display screen. Do not use solvent (like alcohol) to clean device. 1.6 Battery Product is equipped 3000mA/3.7V interior lithium polymer chargeable battery. Two types of charge, as follow separately.

  • Page 8: Chapter Two Product Usage

    TP150 Tire Pressure Diagnosis Tool Chapter Two Product usage 2.1 Tire pressure diagnostic function Tire pressure diagnostic function，mainly include：tire pressure system diagnosis、trigger tire pressure sensor、view the learning step and tire pressure sensor information、program tire pressure sensor function. 2.1.1 Main menu Select【Tire pressure diagnosis】function，enter the test vehicle information...

  • Page 9: Test Vehicle Information Selection

    TP150 Tire Pressure Diagnosis Tool 2.1.2 Test vehicle information selection 1、Vehicle area selection 2、 Vehicle brand selection 3 、 4 、 A fter select the years of vehicle, Vehicle type selection enter the tire pressure service page...

  • Page 10: Tire Pressure Service Interface

    TP150 Tire Pressure Diagnosis Tool 2.2 Tire pressure service interface Tire pressure service interface （For use the direct-type tire pressure system vehicle），Mainly include：Tire pressure system diagnosis、trigger tire pressure sensor、tire pressure sensor programming、view learning step、 view the original tire pressure sensor information.

  • Page 11: Tire Pressure System Diagnosis

    TP150 Tire Pressure Diagnosis Tool Click key，the detailed information of senor will be displayed on the screen which is include sensor ID、pressure、 temperature and voltage. If part of tire pressure sensors do not acquire the data，select 【 Activation continue】to trigger tire pressure sensor acquire the tire pressure sensor ID or more information.

  • Page 12: The Original Sensor Information

    TP150 Tire Pressure Diagnosis Tool Display the tire pressure sensor ID information which is stored by vehicle ECU. Screen will display the number of fault codes when has read it. Select 【View fault code】can view fault codes and its meaning.

  • Page 13: Programming Sensor

    ID、via read ECU copy sensor ID. 2.6.1 Generate ID automatically This function use for auto set up sole senor ID in 1~8 Xtool programable popular type tire pressure sensor， these ID are random generation. The newly generate sensor ID usually...
  • Page 14 TP150 Tire Pressure Diagnosis Tool Take the waited programming Xtool sensor close to the top of programming device position，the device will auto detect nearby Xtool tire pressure sensor. Via direction key select the waited programming tire pressure sensor， press OK to confirm.
  • Page 15 SN（rear eight numbers）and corresponding ID. If have sensor programming failed，device will remind the failed information. 2.6.2 Input ID manually Input ID manually，and program this ID in Xtool programmable popular type tire pressure sensor. Press OK key to confirm after input it.
  • Page 16 TP150 Tire Pressure Diagnosis Tool Take the waited programming Xtool sensor close to the top of programming device position，the device will auto detect nearby Xtool tire pressure sensor. Via direction key select the waited programming tire pressure sensor，press OK key to continue.
  • Page 17 TP150 Tire Pressure Diagnosis Tool Press key to start program. After tire pressure sensor finish the programming，display screen will display sensor SN（rear eight numbers）and corresponding ID.

  • Page 18: Via Activation Copy

    TP150 Tire Pressure Diagnosis Tool 2.6.3 Via activation copy Sensor which is via activation copy， identify this sensor ID，and program this ID in Xtool programmable popular type tire pressure sensor. Activate copy single tire sensor ID, and can also activate copy multiple sensor Press 【OK】...
  • Page 19 TP150 Tire Pressure Diagnosis Tool Take the waited programming Xtool sensor close to the top of programming device position，the device will auto detect nearby Xtool tire pressure sensor. Prepare corresponding the number of Xtool tire pressure sensors previously when program multiple sensor ID.
  • Page 20 TP150 Tire Pressure Diagnosis Tool Press key to start program. It can program 1~6 Xtool tire pressure sensor ID in 1~6 Xtool tire pressure sensors. After tire pressure sensor finish the programming，display screen will display sensor SN（rear eight numbers）and corresponding ID.

  • Page 21: Read Ecu Copy

    ECU，and program this ID in Xtool programmable popular type tire pressure sensor. Via the sensor ID which is stored by vehicle tire pressure system of ECU to select waited programming ID. Program this ID in Xtool tire pressure sensor.
  • Page 22 TP150 Tire Pressure Diagnosis Tool Take the waited programming Xtool sensor close to the top of programming device position，the device will auto detect nearby Xtool tire pressure sensor. Prepare corresponding the number of Xtool tire pressure sensors previously when program multiple sensor ID.
  • Page 23 TP150 Tire Pressure Diagnosis Tool Press key to start program. It can program 1~6 Xtool tire pressure sensor ID in 1~6 Xtool tire pressure sensors. After tire pressure sensor finish the programming，display screen will display sensor SN（rear eight numbers）and corresponding ID.

  • Page 24: Recent Test

    TP150 Tire Pressure Diagnosis Tool 2.7 Tire pressure learning method Please read learning steps， and via the steps to operate. 2.8 Recent test Record recent tire pressure diagnostic vehicle type selection and tire pressure sensor trigger data， it is convenient to user continue the last...

  • Page 25: Setting

    TP150 Tire Pressure Diagnosis Tool 2.9 Setting operation language Provide change device setting、view 7、Warning tone setting：Turn on/Turn off software and hardware edition. This the key humming. product can do adjustment and setting as follow： 1、Pressure unit setting：Set pressure unit to kPa，Psi or Bar.

  • Page 26: Temperature Unit Setting

    TP150 Tire Pressure Diagnosis Tool 2.9.2 Temperature unit setting Set temperature unit to ℃ or ℉. Use pull up/pull down to select，then press OK key to confirm. 2.9.3 The format of sensor ID Use pull up/pull down to select，then press OK key to confirm.

  • Page 27: Auto Power-Off Setting

    TP150 Tire Pressure Diagnosis Tool 2.9.4 Auto power-off setting Use pull up/pull down to select，then press OK key to confirm. 2.9.5 District setting Use pull up/pull down to select，then press OK key to confirm.

  • Page 28: Language Setting

    TP150 Tire Pressure Diagnosis Tool 2.9.6 Language setting Use pull up/pull down to select，then press OK key to confirm. 2.9.7 Warning tone setting Use pull up/pull down to select，then press OK key to confirm.

  • Page 29: Upgrade

    TP150 Tire Pressure Diagnosis Tool 2.10 Upgrade Tire pressure diagnostic device can via USB connect with PC to upgrade. 1.Via USB upgrade 2.11 About Show the tire pressure diagnostic device software 、hardware edition information.
  • Page 32 Shenzhen Xtooltech Intelligent Co., Ltd Add:2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China Tel:+86 755 21670995 or +86 755 86267858 E-Mail:aftersales-services@xtooltech.com(Upgrade service) Marketing@xtooltech.com...
