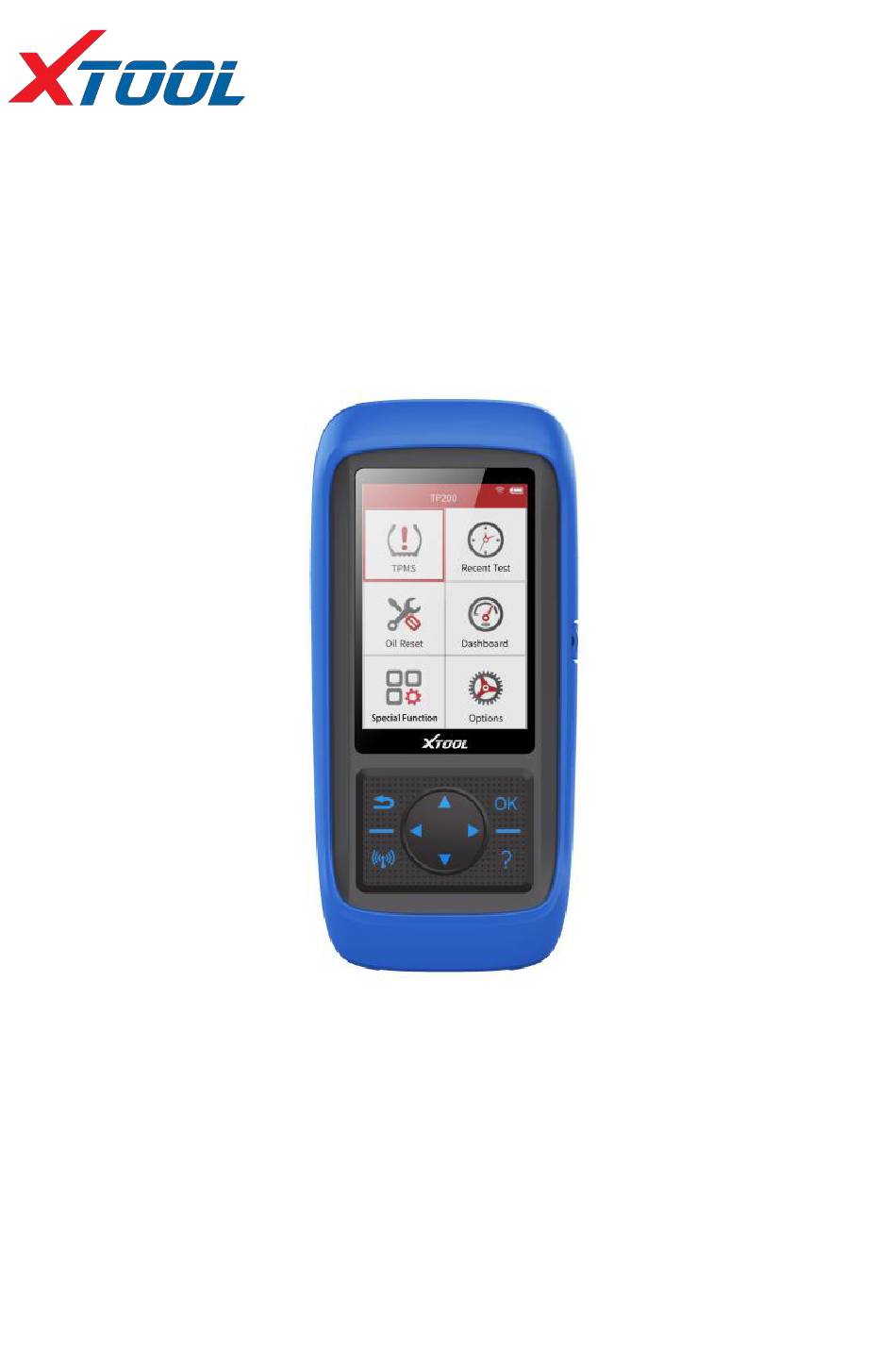

- Page 1 TP200 Tire Pressure Diagnosis Tool Operation Manual Efficient Smart Portable Please read this manual carefully before use...
- Page 3 TP200 TPMS Tool Declaration 1. This manual is designed for the usage of TP200, applying to TP200 automotive diagnosis platform. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), without the prior written permission of Xtool.
- Page 4 Ltd. 7. In countries that the trademarks, service marks, domain names, logos and the name of the company are not registered, Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name. All other marks for the other products and the company’s name...
-
Page 5: Table Of Contents
1.2 Appearance and Interface of TP200.........5 1.3 Technical Parameters............... 6 1.4 Accessories Lists..............7 1.5 Keyboard.................. 7 1.6 Battery..................7 Chapter II: How to use TP200............... 8 2.1 Tire pressure diagnosis functions..........8 2.1.1 Main Interface............... 8 2.1.2 Vehicle Selection..............9 2.2 Tire Pressure Service Interface..........10 2.3 Diagnosis of Tire Pressure Systems........10... - Page 6 TP200 TPMS Tool 2.12.5 Automatic Power Off Setting..........19 2.12.6 Regional Setting..............20 2.12.7 Language Setting...............20 2.12.8 Tip Sound Setting..............22 2.12.9 About................. 22 4 / 21...
-
Page 7: Chapter I: About Tp200
TP200 TPMS Tool Chapter I: About TP200 1.1 Product Definition TP200 Tire pressure diagnostic tool has various functions such as read and clear fault codes, trigger tire pressure sensors, obtain tire pressure sensors ID, tire pressure, temperature and battery status, and provide tire pressure sensor learning methods. -
Page 8: Technical Parameters
DB15 Connector: Connect TP200 to the OBDII diagnostic port of the vehicle. Help: Provide help information. OK: Confirm selection. USB interface: Connect TP200 to PC for software updates or battery charging. Power on/off: Turn on/ turn off TP200. 1.3 Technical Parameters... -
Page 9: Accessories Lists
TP200. 2、Connect TP200 and power supply with a USB cable Attention: In order to maintain the best performance of TP200, please make it fully charged every time. It is recommended that you charge for at least 2 hours before using for the first time. -
Page 10: Chapter Ii: How To Use Tp200
TP200 TPMS Tool Chapter II: How to use TP200 2.1 Tire pressure diagnosis functions Tire pressure diagnostic function mainly includes: tire pressure system diagnosis, triggering tire pressure sensor, viewing learning steps and viewing tire pressure sensor information. 2.1.1 Main Interface Tap 【... -
Page 11: Vehicle Selection
TP200 TPMS Tool 2.1.2 Vehicle Selection 2. Vehicle model selection 1. Vehicle brand selection 3. Enter the tire pressure service interface after selecting the vehicle year. 9 / 21... -
Page 12: Tire Pressure Service Interface
TP200 TPMS Tool 2.2 Tire Pressure Service Interface Tire pressure service interface (For vehicles using direct tire pressure systems), which Mainly include: tire pressure system diagnosis, trigger tire pressure sensor, view learning steps, view tire pressure sensor information and clear tire pressure fault codes. -
Page 13: Tire Pressure Sensor Trigger
TP200 TPMS Tool Connect vehicle OBDII port: Connect vehicle OBDII port and TP200 with OBDII test cable, turn on the ignition, TP200 will read fault codes automatically which are related to vehicle ECU tire pressure. LCD screen will show all fault... - Page 14 TP200 TPMS Tool specific information will be shown on LCD screen (Including sensor ID, pressure, temperature and voltage). You can select [Continuous Trigger] on the tire pressure sensor information page to trigger the tire pressure sensor to obtain information such as the tire pressure sensor ID.
-
Page 15: Tire Pressure Learning Methods
TP200 TPMS Tool 2.5 Tire Pressure Learning Methods Please read the learning steps and follow the steps. 2.6 Original Sensor Information The original sensor information of testing vehicle will be shown on the 13 / 21... - Page 16 TP200 TPMS Tool device. 14 / 21...
-
Page 17: Clear Tpms Fault Code
TP200 TPMS Tool 2.7 Clear TPMS Fault Code If vehicle has faults code, please press button 【 OK 】 to clear fault code. After faults code is cleared, device will automatically recheck testing car’s ECU to make sure all faults code is cleared. -
Page 18: Obd Learning
TP200 TPMS Tool 2.8 OBD Learning It will display all TPMS sensor information. If some tire pressure sensor cannot obtain data, please choose 【Continue to Trigger】to trigger tire pressure sensor to get tire pressure sensor ID and other information. Connect vehicle’s... - Page 19 TP200 TPMS Tool on the engine. 17 / 21...
-
Page 20: Recent Testing
TP200 TPMS Tool Choose 【OBD Learning】 to write obtained OBD ID into vehicle ECU. After clicking 【OK】 ， Device will write tire pressure sensor information into the vehicle ECU. After the writing is completed, the device will automatically clear the fault code existing in the vehicle ECU. -
Page 21: Update
TP200 TPMS Tool 2.11 Update TP200 can be upgraded via a USB cable connection to a computer or via Wi-Fi networking. 1. Update via USB cable 2. Update via Wi-Fi Each software module can be chosen to update separately or can be one click update via select【all... -
Page 22: Wi-Fi Setting
TP200 TPMS Tool Fahrenheit. 4. Sensor ID format: Set the ID display to hexadecimal or decimal. 5. Auto Power off: Set the standby time before the device automatically shuts down. 6. Areas. 7. Language: Select the operating language of the device. -
Page 23: Pressure Unit Setting
TP200 TPMS Tool 2.12.2 Pressure Unit Setting Choose pressure unit as “kPa”, “Psi” or “Bar”. Use the Up/Down keys to select, then press [OK] to confirm. 17 / 21... -
Page 24: Temperature Unit Setting
TP200 TPMS Tool 2.12.3 Temperature unit setting Select the temperature unit as °C or °F. Use the Up/Down keys to select, then press [OK] to confirm. 18 / 21... -
Page 25: Sensor Id Format
TP200 TPMS Tool 2.12.4 Sensor ID Format Use the Up/Down keys to select, then press [OK] to confirm. 2.12.5 Automatic Power Off Setting Use the Up/Down keys to select, then press [OK] to confirm. 19 / 21... -
Page 26: Regional Setting
TP200 TPMS Tool 2.12.6 Regional Setting Choose your area/country, Use the Up/Down keys to select, then press [OK] to confirm. 2.12.7 Language Setting Use the Up/Down keys to 换 了 图 片 20 / 21... - Page 27 TP200 TPMS Tool select a language, then press [OK] to confirm. 21 / 21...
-
Page 28: Tip Sound Setting
TP200 TPMS Tool 2.12.8 Tip Sound Setting Use the Up/Down keys to turn on/off, then press [OK] to confirm. 2.12.9 About Display version information of software and hardware about this tire pressure diagnostic equipment. 22 / 21... - Page 29 Shenzhen Xtooltech Co., Ltd Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China Factory address: 2/F, Building 12, Tangtou 3rd Industrial Zone, Shiyan Street, Bao’an District, Shenzhen, China Service Hotline: 86-755-86267858/21670995 Fax: 0755-83461644 Website: www.xtooltech.com...
