User Manual
Product Name: Auto Diagnostic TOOL
Trade Mark: XTOOL
Model: Anyscan A30

Chapter I About Anyscan A30

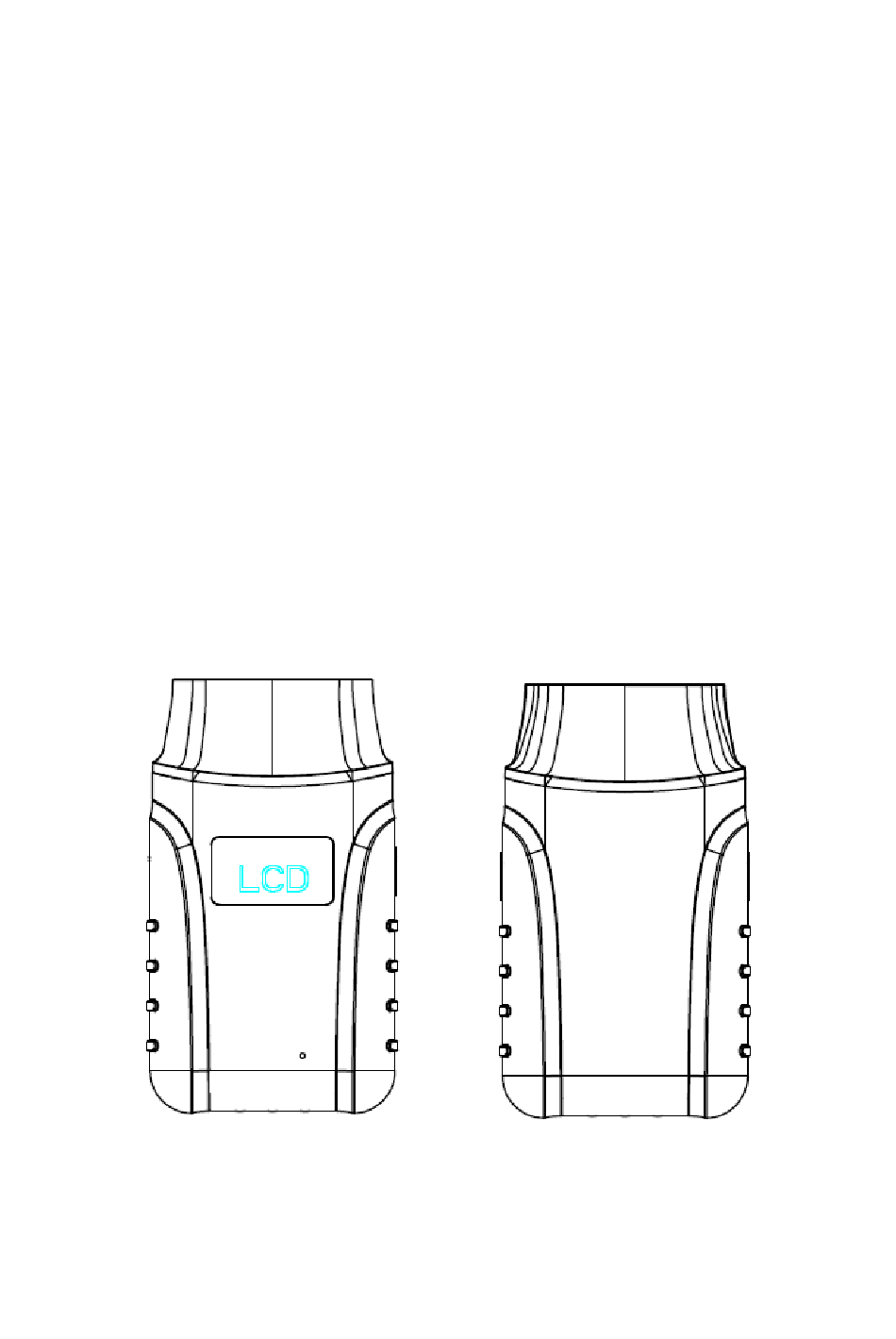

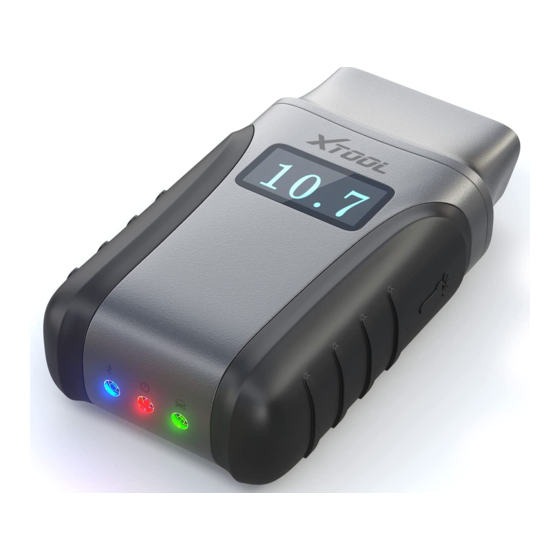

1. Appearance
Front View
Back View

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anyscan A30 and is the answer not in the manual?

Questions and answers

Related Manuals for Xtool Anyscan A30

Summary of Contents for Xtool Anyscan A30

  • Page 1: Chapter I About Anyscan A30

    User Manual Product Name: Auto Diagnostic TOOL Trade Mark: XTOOL Model: Anyscan A30 Chapter I About Anyscan A30 1. Appearance Front View Back View...

  • Page 2: Hardware Support

    ⑤ Bluetooth Indicator: It turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully ⑥ Vehicle Indicator: When VCI Dongle III is connected with vehicle successfully, it turns green. 3．Technical parameter Product Information Brand XTOOL Anyscan A30 Model Color Hardware blue + plastic black On-sale date 2018 Hardware support...

  • Page 3: Chapter Ii How To Use Anyscan A30

    Overall Dimensions 87.00*50.00*25.00mm Battery 100mAh OBD standard interface Quantity 4 (power indicator, bluetooth indicator, vehicle diagnostic indicator, lighting indicator) Chapter II How to use Anyscan A30 1. App download instructions 1.1 Support iOS and Android system. Device Mode Apple iOS IPod...
  • Page 4 Activation is a one time process. The diagnostic application will start after activation. 3. Anyscan A30 Main Interface and Functional Buttons Descriptions 3.1. Main Interface...

  • Page 5: Precautions Before Use

    4.4. If users can not find the tested vehicle model or electronic control system in the VCI Dongle III test menu, they may need to update the software or consult Xtool technical service department. 4.5. Before powering off the unit, please ensure that you cancel or complete the current task or function and return to the main interface, then power off.
  • Page 6 European cars menu, selection for Asia will enter the Asian cars menu, selection for America will enter the American cars menu. Users also can input the vehicle model to search. 5.1.3. Besides the usual system diagnostic functions, XTOOL have also developed a series of special diagnostic functions for certain vehicles.

  • Page 7: Chapter Iii Examples Of Diagnostic Link Connector Locations

    Units: Select unit of measurement. Users can select Metric or British Unit. CHAPTER III Examples of Diagnostic Link Connector Locations. 1. Diagnostic Link Connectors Locations of Various Vehicle Models *AUDI A6: the OBD plug is on the lower left side of the dashboard, use SMART OBDII-16 connector.
  • Page 8 *VW Bollywood 1.8: the OBD plug is below the console, use SMART OBDII-16 connector. *Benz S320,220 Chassis: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *Benz C180: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector.
  • Page 9 *Benz 300SEL 140 chassis: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector. *GM Buick: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *GM Buick GL8 : the OBD plug is below the dashboard, use SMART OBDII-16 connector. *VW POLO: the OBD plug is below the dashboard, use SMART OBDII-16 connector.

  • Page 10: Location Diagram Of Vehicle Diagnostic Link Connectors

    *BMW 735I: the OBD plug is in the right hands side of the engine bay, use BMW-20 connector. *VW Passat B5: the OBD plug is behind the gearlever and beside the parking brake lever. Lift the cover to access it. Use SMART OBDII-16 connector. 2.

  • Page 11: Diagnostic Link Connectors Terminal Definition And Communication Protocols

    Link diagram of small car diagnostic link connectors: NOTE: Each vehicle manufacturer may use additional pins to diagnose a variety of systems. Not every manufacturer uses the same standard. The function on a certain pin will vary from manufacturer to manufacturer.
  • Page 12 9. Manufacturer definition 10. SAE J1850 bus negative 11. Manufacturer definition 12. Manufacturer definition 13. ISO 15765-4 defined CAN low 14. ISO9141 and ISO14230 defined L line 15. Permanent positive voltage [1] 1, 3, 8, 9, 11, 12 and 13 are defined by manufacturer. [2] 2, 6, 7, 10, 14 and 15 are used for diagnostic communication.
