SMC Networks AWM20-01 Series Operation Manual page 31

Mist separator regulator
Table of Contents

Advertisement

Work
Applicable
model
category
AWM30-D

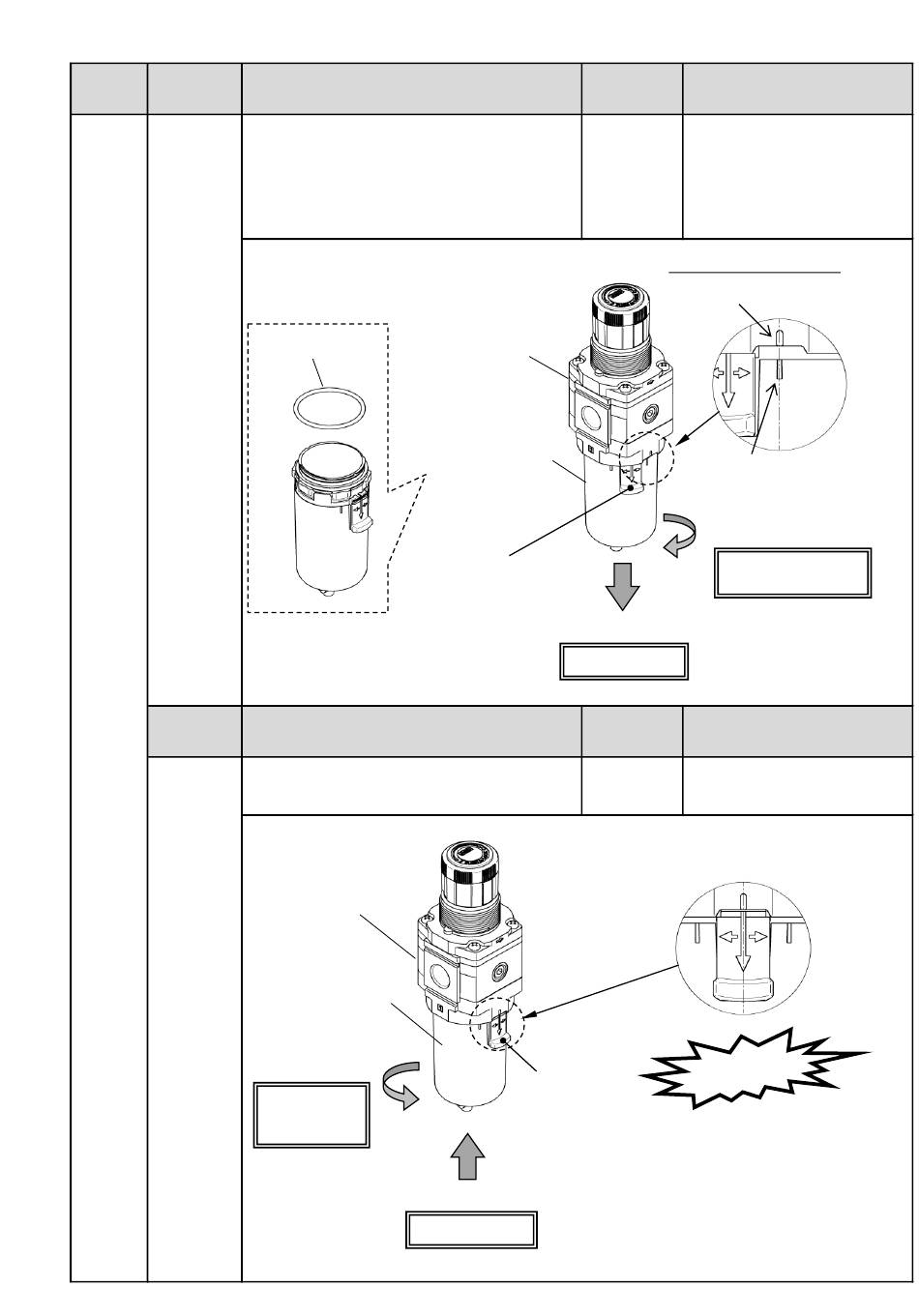

Disassembly 1) Remove the bowl assembly from the product.
AWM40-D
Work
category
Assembly
2) Mount the bowl assembly to the product and
Procedure
While the lock button is held down, rotate the
bowl assembly by approx. 30 degrees so that
the mating marks of the body and bowl
assembly meet each other. Then remove the
bowl assembly by pulling it downward.
(8)
Bowl seal
(9)
Lock button
Procedure
rotate the bowl assembly until the lock button is
locked in position as shown in the figure below.
Product
(9)
Bowl assembly
【Step 2】
Rotate 30
degrees
【Step 1】
Insert upward
Tool
Product
Bowl assembly
【Step 2】
Pull downward
Tool
Lock button
-30-
Criteria
-
-
Align the mating mark
Mating mark of the body
Mating mark of the bowl
assembly
【Step 1】
Rotate 30 degrees
Criteria
-
-
Caution
Make sure that the lock button
is locked to the flute of the
product before pressurising it.
