11-3. Element Replacement

Work
Applicable
model
category

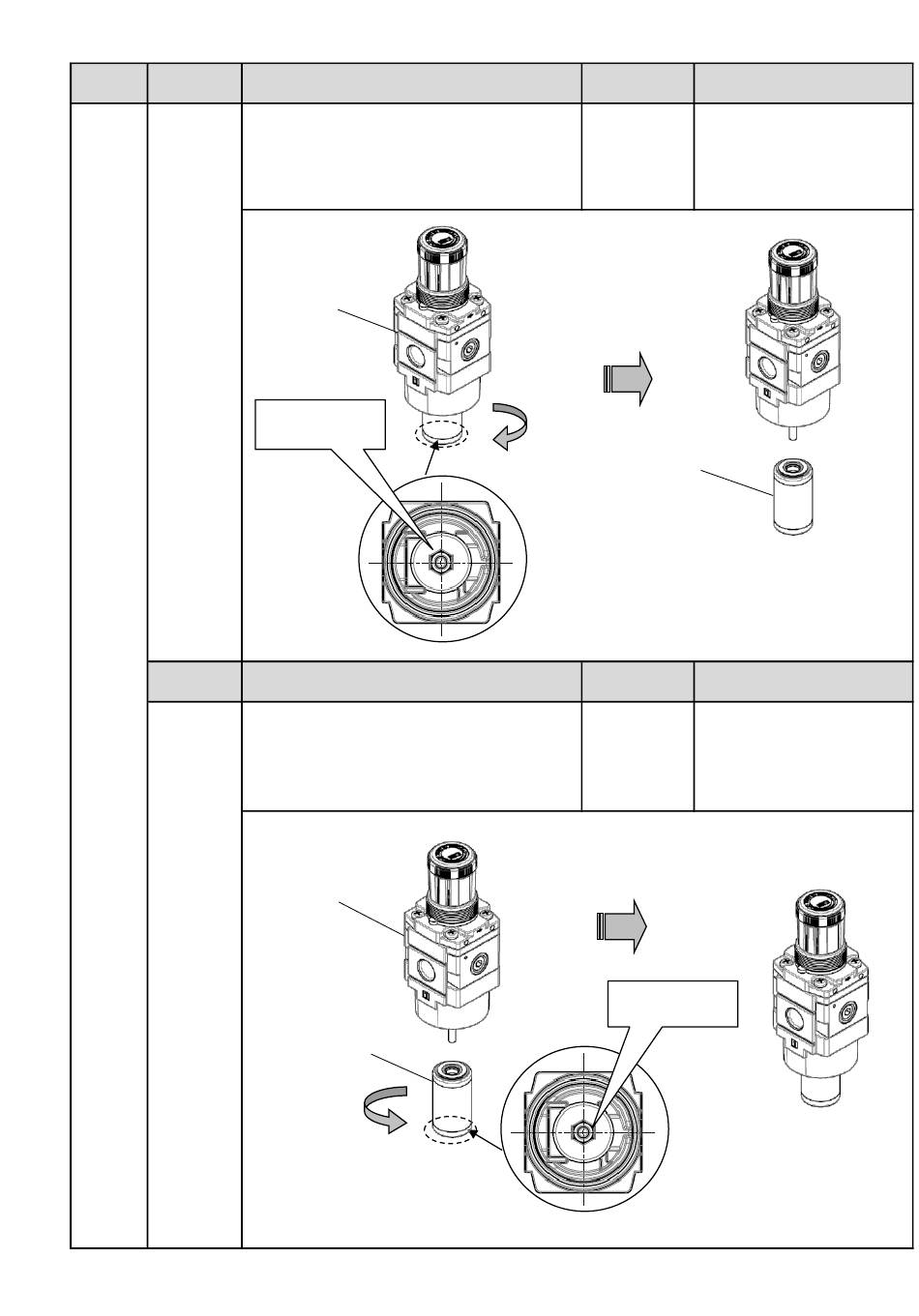

AWM20-D Disassembly 1) Remove the bowl assembly referring to the
Work
category
Assembly
Procedure
section [11-2. Bowl Assembly Replacement]
(P29-30). After that, remove the element
assembly by rotating it counterclockwise using
a spanner.
Product
Possible to
apply spanner
Procedure
1) Mount the element assembly by rotating it
clockwise using a spanner. Tighten the element
assembly referring to the torque specified on
the right. Mount the the bowl assembly referring
to the section [11-2. Bowl Assembly
Replacement] (P29-30).
Product
(7) Element Assembly
Tool
Spanner
nominal size: 7
(7) Element Assembly
Tool
Spanner
nominal size: 7
Possible to
apply spanner
-31-
Criteria
-
Criteria
Tightening torque:
0.5+/-0.05 N m
