SMC Networks AWM20-01 Series Operation Manual page 33

Work
Applicable
model category

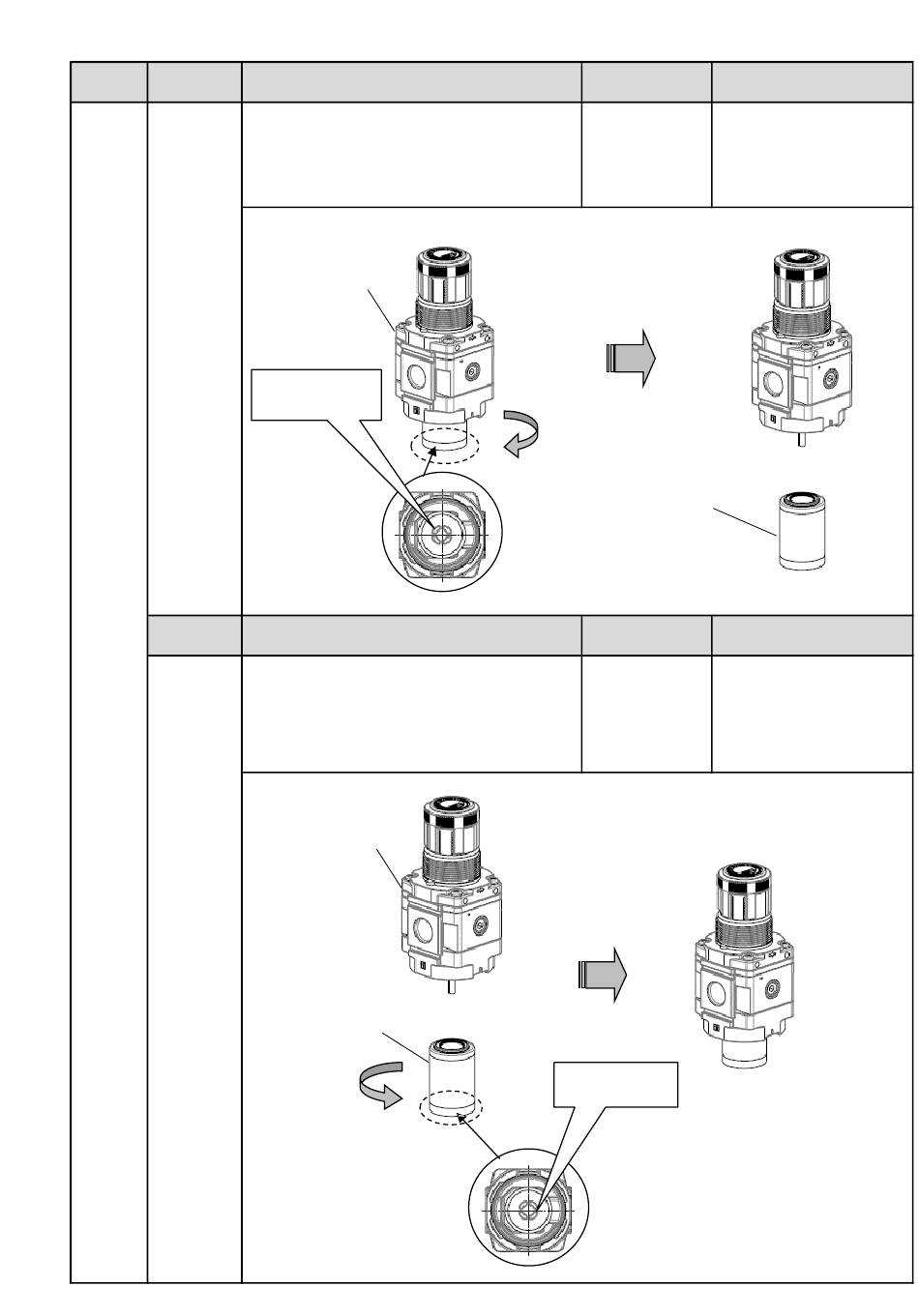

AWM30-D Disassembly 1) Remove the bowl assembly referring to the
AWM40-D
Work
category
Assembly 1) Mount the element assembly by rotating it
Procedure
section [11-2. Bowl Assembly Replacement]
(P29-30). After that, remove the element
assembly by rotating it counterclockwise using
round nose pliers.
Product
Possible to
apply spanner
Procedure
clockwise using round nose pliers. Tighten the
element assembly referring to the torque
specified on the right. Mount the bowl assembly
referring to the section [11-2. Bowl Assembly
Replacement] (P29-30).
Product
(7) Element Assembly
Tool
Round nose pliers
(7) Element Assembly
Tool
Round nose pliers
Possible to
apply pliers
-32-
Criteria
－
Criteria
Tightening torque:
AWM30-D: 1.5+/-0.2 N m
AWM40-D: 2+/-0.2 N m
