9-4. Manual drain discharge from the auto drain
-
Pressurize the inside of the mist separator regulator when discharging drain. Drain will not be discharged
properly if not pressurized.
-
To discharge the auto drain manually, follow the procedure below. After discharging the drain, rotate the cock
to the opposite direction by hand to close the drain valve. Use of a tool can damage the product.

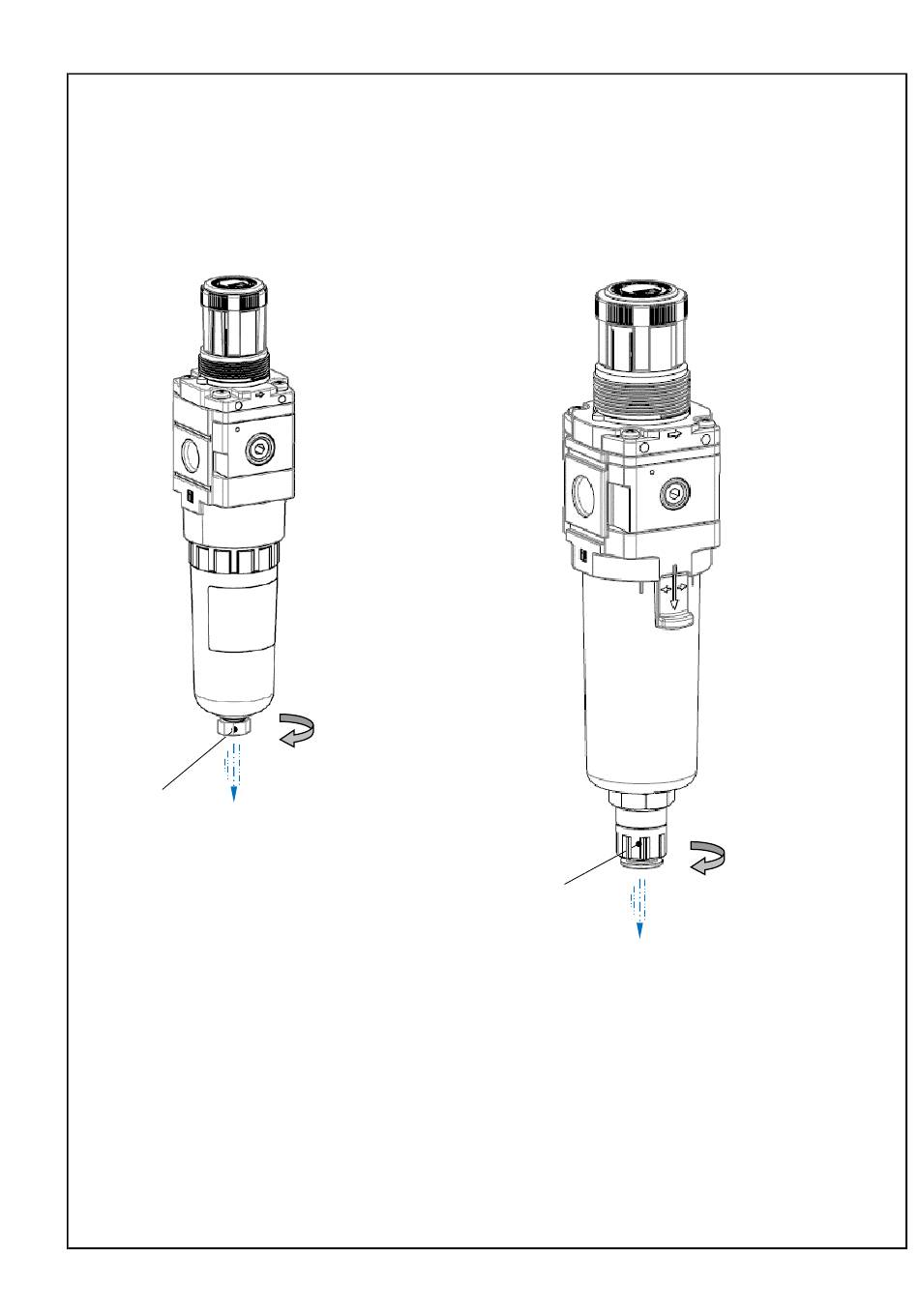

AWM20-D: Auto drain
Drain cock
OPEN
(Discharging drain)
AWM30-D/ AWM40-D: Auto drain
Drain cock
-25-
OPEN
(Discharging drain)
