9. Operation and Adjustment

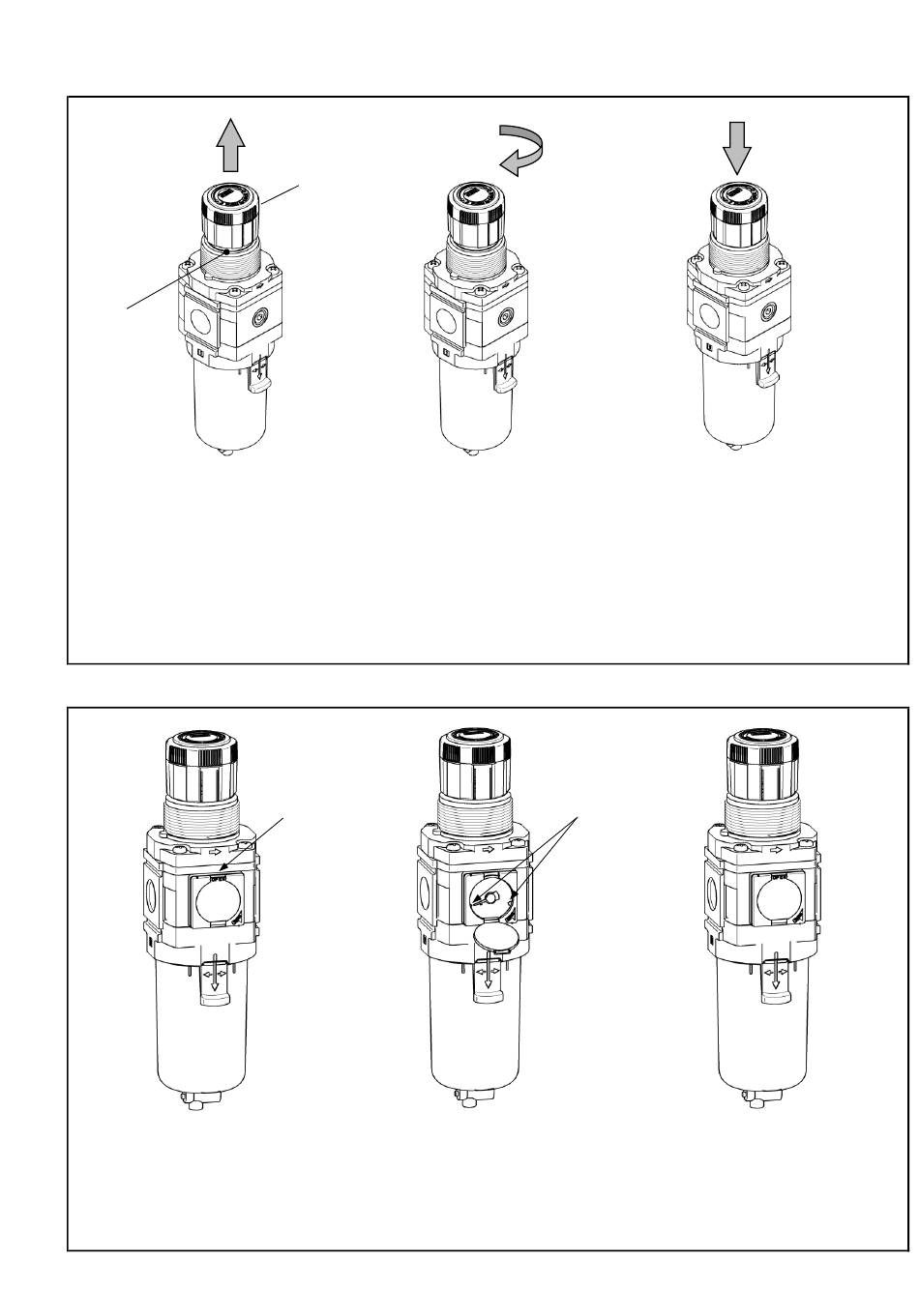

9-1. Pressure regulation
Orange mark
(1) Pull the knob in the arrow
direction for unlocking,
revealing an orange mark.
9-2. Indicator adjustment of the square embedded type pressure gauge
(1) Pull the opening of the
transparent cover to unlock.
Knob
(2) Turning the knob clockwise increases the
outlet pressure. When the knob of the relief
type is rotated counterclockwise, pressure
decreases.
Note) Adjust the pressure in pressure
increasing direction (rotate in the arrow
direction). Otherwise, it may cause
insufficient set pressure.
Opening of
transparent cover
(2) Open the transparent cover as in
the drawing and adjust the indicator to
the upper and lower limit positions to
be controlled.
Indicator (Green)
-23-
(3) After adjusting pressure,
lock the knob by pushing it in
the arrow direction.
(3) Close the transparent cover
after adjusting the indicator.
