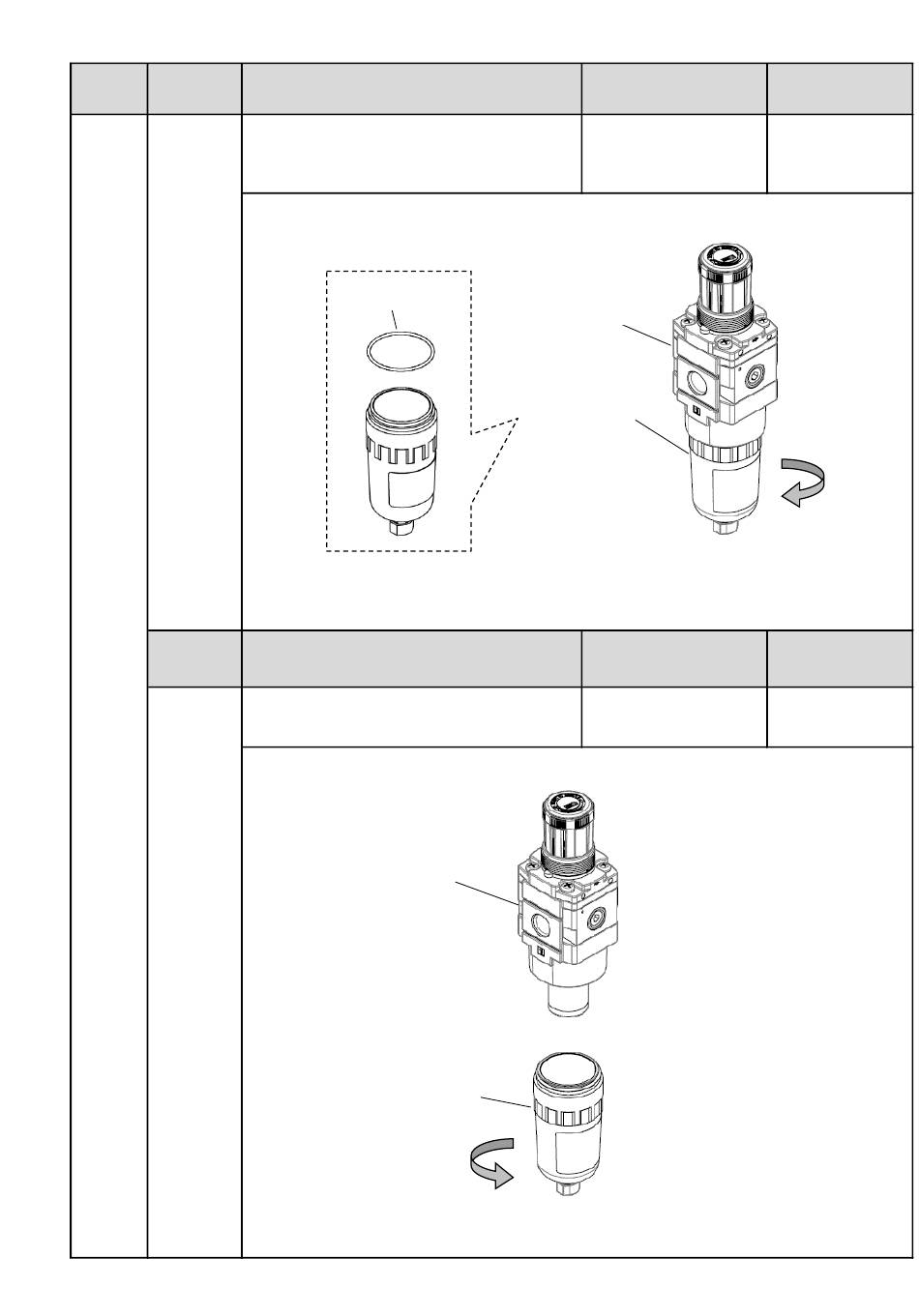

11-2. Bowl Assembly Replacement

Work
Applicable
model category
AWM20-D
Disassembly 1) Remove the bowl assembly from the product.
Work
category
Assembly 2） Screw the bowl assembly into the product.
Procedure
If the bowl assembly is tightened too much to
be removed, use a hook spanner until it can be
loosened by hand.
(8)
Bowl seal
Procedure
Tighten it referring to the specified torque.
Product
(9)
Bowl assembly
Spanner specified for SMC
Product No.: 1129129
Product
(9)
Bowl assembly
-29-
Tool Criteria
－
Tool Criteria
Reference
-
tightening
torque: 2.1 N m
