Work
Applicable
model category
AWM30-D Disassembly 1) Remove the bowl assembly and element
AWM40-D
Work
category
Assembly 2) Mount the valve spring and valve assembly on
Procedure
referring to sections [11-2. Bowl Assembly
Replacement] (P29-30) and [11-3. Element
Replacement] (P31-32).
Rotate the valve guide in the arrow direction to
remove, taking care not to lose the valve spring.
Procedure
the valve guide as shown in the drawing. Rotate
the valve guide in the arrow direction to mount
the valve guide to the product.
Assemble the element and the bowl assembly
referring to sections [11-3. Element
Replacement] (P31-32) and [11-2. Bowl
Assembly Replacement] (P29-30).

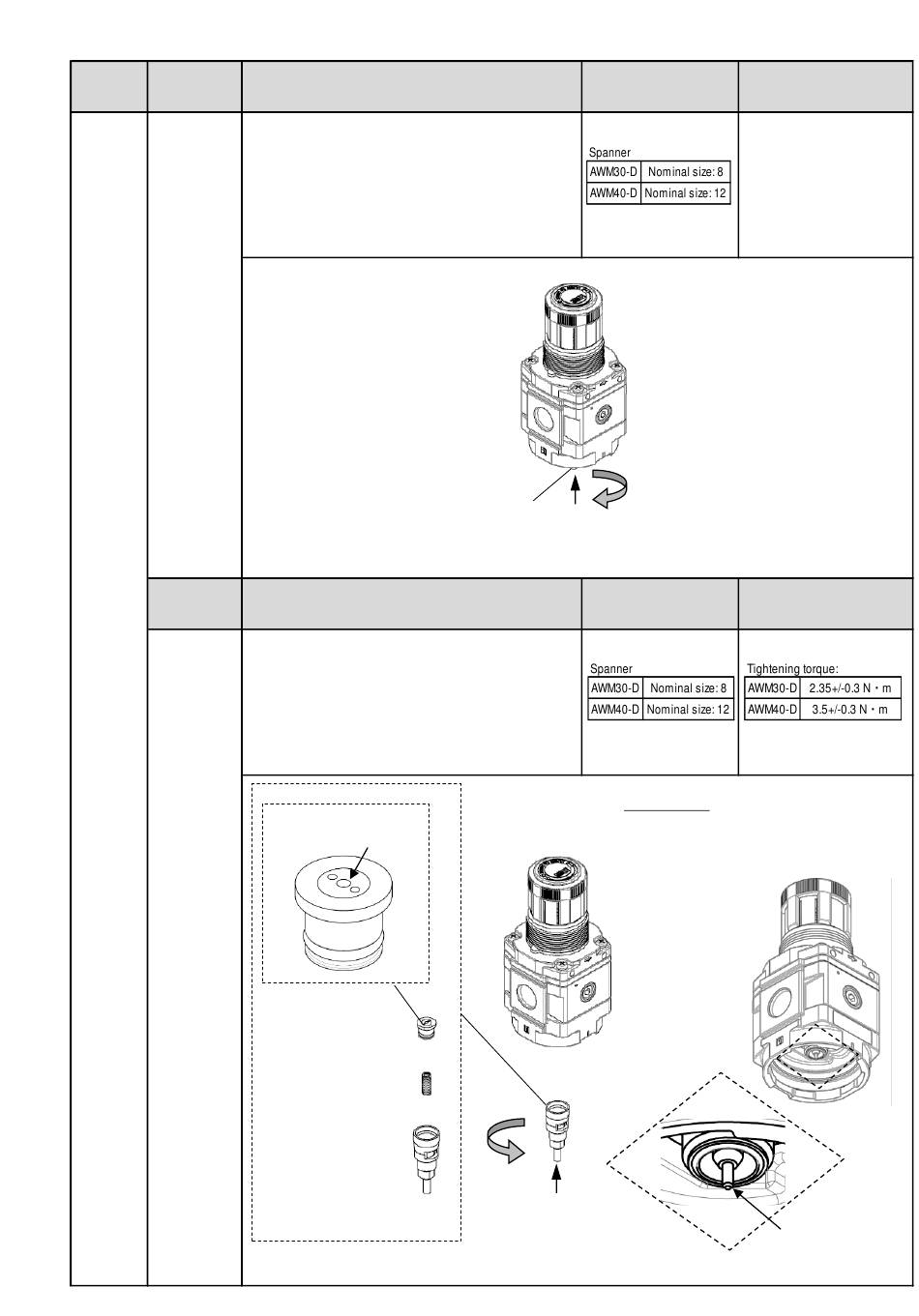

Valve assembly
center hole
(10)
Valve assembly
Vave spring
Valve guide
Valve guide
Spanner
Supplement
Align the protruding part of the stem
Product
assembly and the center hole of the
valve assembly.
Spanner
-34-
Tool Criteria
－
Tool Criteria
Protruding part of
stem assembly
