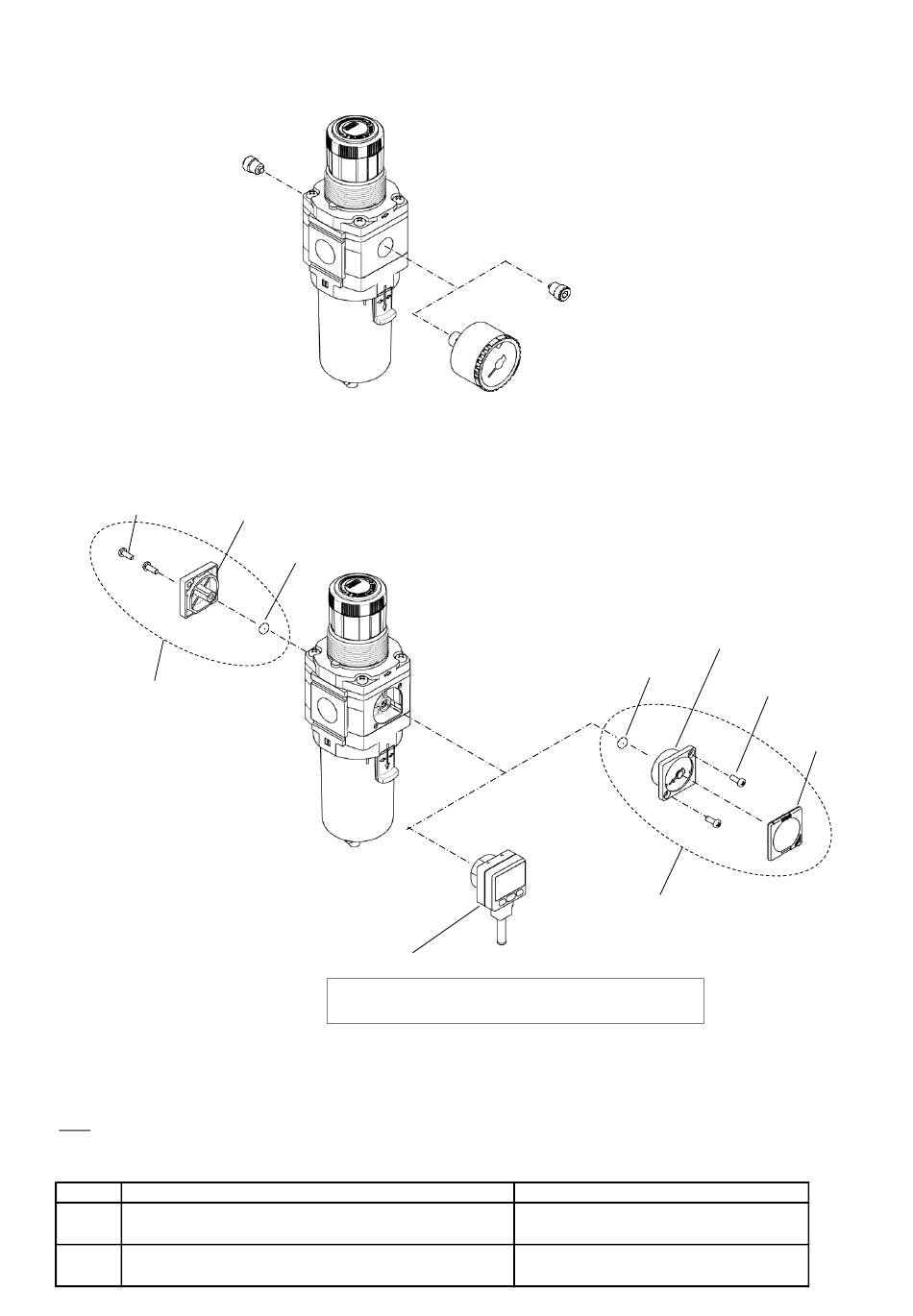

12-2. Disassembly Drawing of the Pressure Gauge Port
[Applicable model: without pressure gauge / with pressure gauge (round type)]
(12) Plug (with O-ring)
12-3. Disassembly Drawing of the Pressure Gauge Port
[Applicable model: with square embedded type pressure gauge / with digital pressure switch]
Mounting screws
(2 pcs.)
Blanking plate
(13) Blanking plate assembly
- When the pressure gauge or the digital pressure switch is mounted on the back of the product,
swap all parts for the front and back.
- When swapping (4) Square embedded type pressure gauge and (6) Digital pressure switch, tighten them with 0.85+/-0.05N・m.
Tighten others with 0.6±0.05N・m.
Note
There are two types of bodies, which are 12-2 and 12-3 described above according to the model.
Please note that the applicable model cannot be changed by switching these two types of products.
Type
12-2
With pressure gauge (round type)
With square-type pressure gauge/
12-3
With digital pressure switch
Mist separator regulator
O-ring
(6) Digital pressure switch
Note) Refer to the operation manual included
in the product with digital pressure switch.
Applicable model
Without pressure gauge/
(12) Plug (with O-ring)
(3) Pressure gauge (round type)
(4) Square embedded type pressure gauge
Model (Representative type)
AWM30-03-D／AWM30-03G-D
AWM30-03E-D／AWM30-03E1-D
-39-
Pressure gauge
O-ring Mounting screws
(2 pcs.)
(5) Pressure gauge
cover
