RUN
Battery
status
●
ON
Protection OFF
Flash 1: 0.25 seconds ON, 3.75 seconds OFF.
Flash 2: 0.5 seconds ON, 0.5 seconds OFF.
Flash 3: 0.5 seconds ON, 1.5 seconds OFF.
Step 3 Switch on DC isolators between batteries and Busbars
Step 4 Switch on DC isolators between Busbars and Inverters.

6.3 BMS commissioning Monitoring

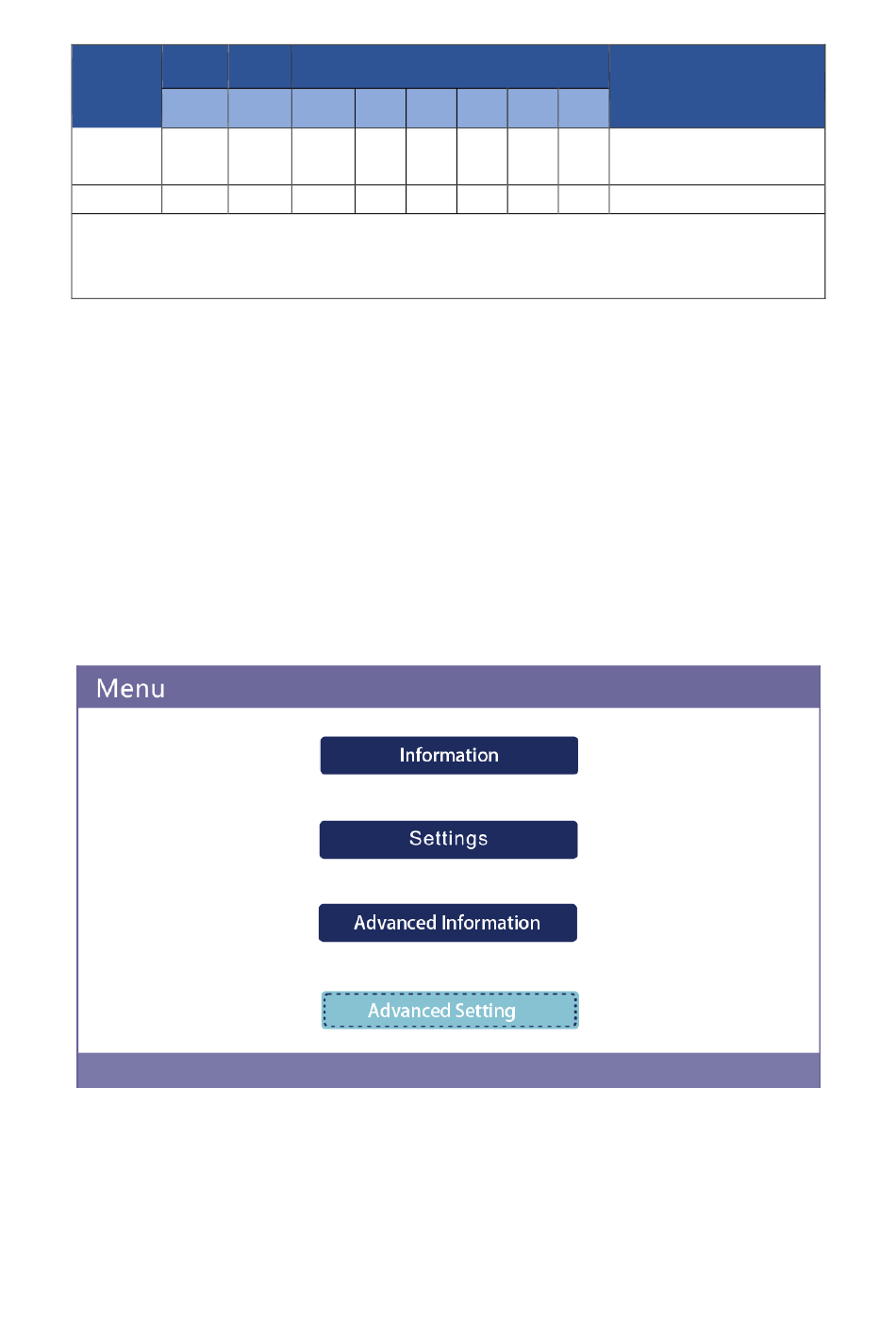

Step 1 Press "ENT" on inverter and enter the main menu. Select "Advanced Settings"
from main menu, the LCD screen show the password is needed:
⚫ Press "DOWN" to move the cursor.
Press "UP" to change the number.
⚫
⚫ Press "ENT" to enter the restricted section.
ALM SOC Indicator
● ● ●
ON ON ON
ON OFF OFF
Shanghai Pytes Energy Co., Ltd
● ● ● ●
ON ON ON ON
OFF OFF OFF OFF
Descriptions
Battery warning for barcode
missing
Battery in Protection mode
