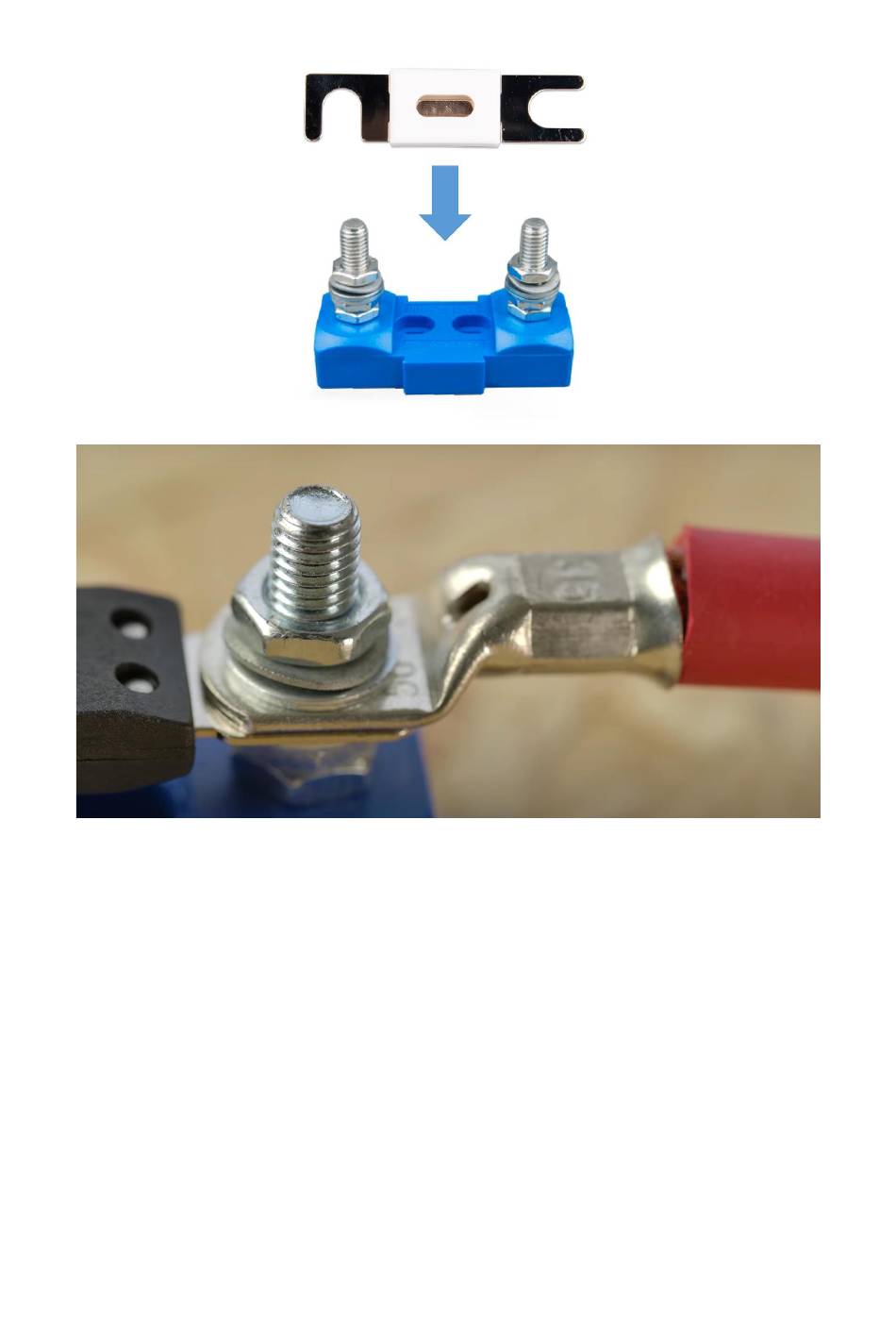

Step 2 Connect fuse with DC isolator.
Install DC Isolator on a reliable surface,
⚫
⚫ Connect Positive cable for DC Isolator Positive terminal and Positive Fuse, tighten
the screw.
⚫ Connect Negative cable for DC Isolator Negative terminal and Negative Fuse,
tighten the screw.
⚫ Repeat for other batteries.
Step 3 Connect DC Isolator with Busbars.
⚫ Install positive and negative busbars on a reliable surface.
⚫ Connect Positive cable for DC Isolator Positive terminal and Positive Busbar, tighten
the screw.
⚫ Connect Negative cable for DC Isolator Negative terminal and Negative Busbar,
tighten the screw.
⚫ Repeat for other batteries.
