Pytes E-Box Series User Manual page 19

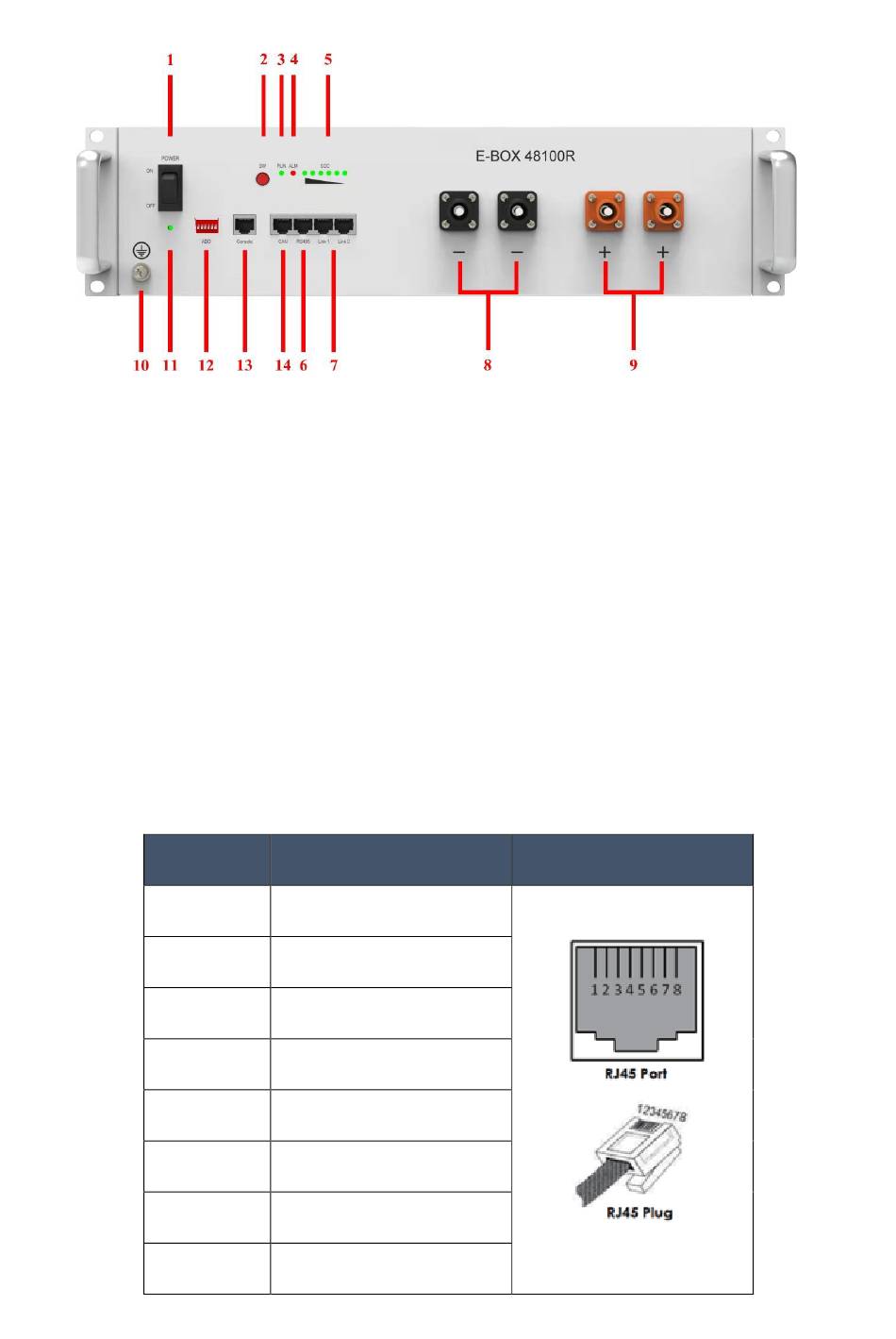

1 Power button
2 Soft switch
3 RUN indicator
4 Alarm indicator
5 SOC indicator
6 RS485 port
7 Battery communication cascading
port
Communication
There are RS-232C, RS485 and CAN communication ports on the battery. The battery
status and information can be monitored and modified via computer.
CAN
CAN communication terminal (RJ45 port) follow CAN protocol, to transfer battery data.
Pin number
1
2
3
4
5
6
7
8
CAN Pin
GND
CANH
CANL
Shanghai Pytes Energy Co., Ltd
8 Negative terminal
9 Positive terminal
10 Ground point
11 Power indicator
12 DIP switch
13 Console port
14 CAN port
Remarks
