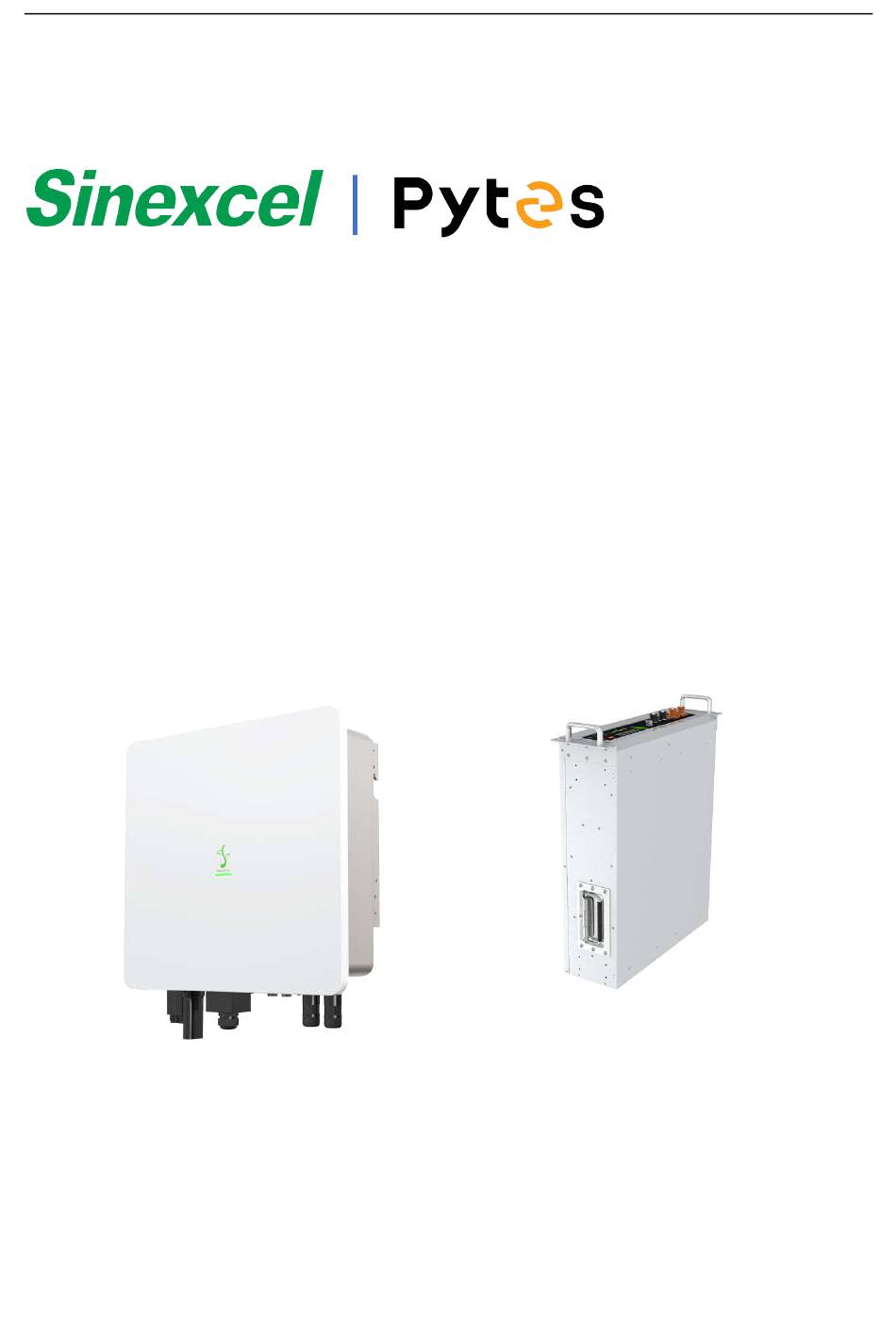

- Page 1 Installation and Configuration Manual Pytes Lithium Battery V series With Sinexcel/Isuna Inverter...
-
Page 2: Table Of Contents
CONTENTS BOM LIST ....................... 3 1. Power Cable Connection ..............6 Step.1 ...................... 6 Step.2 ...................... 6 2. Communication Cable Connection ..........6 3. Set DIP Switch ..................8 4. Start up the system ................8 5.Change the battery setting of the inverter ........8 Step1. -
Page 3: Bom List
BOM LIST Before installation, you should prepare following items. Item Remarks Quantity ☐ Conductor cross-section: UL10269-1/0AWG-200mm-Amphonel 8,0mm or TMR-190*25*18mm ☐ Cable diameters: 14 mm to 25 mm Depends on the number Power Cable ☐ Only copper cables may be used. of batteries and the (DC) ☐... - Page 4 Definition of RJ45 Port Pin Sequence is as follow. CAN port definition Battery Pin sequence of communication cable V Series...
- Page 5 HOW TO INSATLL Communication cable Power cable connection connection Start up the system Set the DIP switch Change the battery Check the battery setting on inverter System monitoring CAUTION: If you want to get more inverter-related settings, please refer to the inverter user manual.
-
Page 6: Power Cable Connection
1. Power Cable Connection Step.1 Connect the red and black power cables to the inverter DC connector as shown in Pic 1.1.1. Pic 1.1.1 Step.2 Parallel connect the other end of the power cables to battery power terminals, positive to positive and negative to negative, as shown Pic 1.2.1. - Page 7 Pic 2.1.1 Connect the other end of the communication cable to the battery CAN port as shown in pic 2.1.2. (Refer to page 4 for communication cable pin sequence.) Pic 2.1.2...
-
Page 8: Set Dip Switch
3. Set DIP Switch Battery DIP setting V Series Set DIP switch as shown in Pic 3.1.1. Pic 3.1.1 4. Start up the system Start up the inverter and batteries. 5.Change the battery setting of the inverter CAUTION: If you want more details about batteries settings of ※... - Page 9 Pic 5.2.1 Click on the bottom right icon “ME”. Pic 5.2.2 Click on “Bluetooth Pairing” on the next Page. (Ensure WiFi and bluetooth are on before next step.)
- Page 10 Pic 5.2.3 Enter the Device number which you can find on WiFi Dongle. Enter WiFi Name and Password. Click on Confirm to wait. It will auto pair and display the successfully connected window. Pic 5.2.4...
- Page 11 Click on “My Device” -> ”Device Info” -> “Parameters” for the page to set battery. Pic 5.2.5 Enable Battery 1 -> Select Battery Type “Lithium Battery” and click on confirm. Pic 5.2.6...
-
Page 12: Check The Battery Soc
Set the battery parameters. Pic 5.2.7 6.Check the battery SOC Back to main menu. Click on “My Device” -> “Device Info” -> “Parameter” -> Next to check battery SOC. Pic 6.1.1... -
Page 13: System Monitoring
7. System Monitoring Download and run Isuna APP for more information and system monitoring. APP Logo Andriod -END-...
