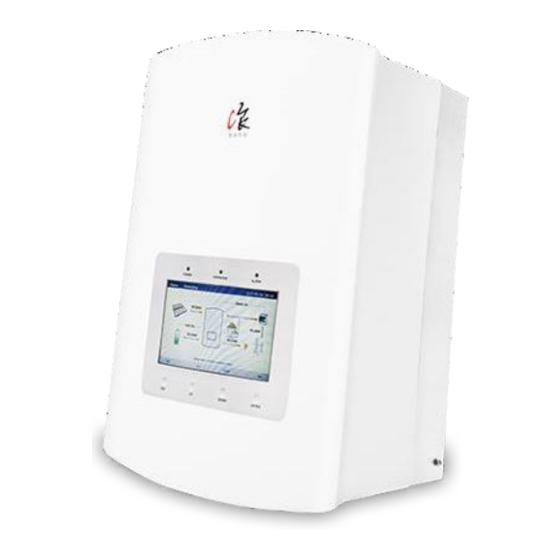

- Page 1 Installation and configuration manual with Solis Hybrid Inverter Pytes Lithium Battery E-BOX series with Solis S5 Series Hybrid Inverter...
-
Page 2: Table Of Contents
CONTENTS Bom List....................1 Power Cable Connection.................6 Step1........................6 Step2........................6 Step3........................6 2. Communication Cable Connection..........3. Set the Dip Switch................4. Start up the System................ 5. Parameters Setting and Checking on the Inverter....Step1........................9 Step2........................9 Step3........................10 Step4........................10 6.System Monitoring................. -
Page 3: Bom List
BOM LIST Before installation, you should prepare following items. Item Remarks Quantity : Conductor cross-section: 50 mm² to 95 mm² : Cable diameters: 14 mm to 25 : Only copper cables may be used. Depends on the number of Power Cable : The DC cables must be sized for batteries and the (DC) - Page 4 CAN port definition Version of 48100R Pin number of com. cable A version B and C version CAN port definition...
-
Page 5: How To Install
HOW TO INSTALL Communication Cable Power Cable Connection Connection Set the DIP Switch Start up the System Parameters Setting System Monitoring and Checking on the Inverter CAUTION: If you want to get more inverter-related settings, please refer to the inverter user manual first. -
Page 6: Power Cable Connection
1. Power Cable Connection Step.1 Remove cap of the Solis Inverter positive and negative. Step.2 Connect the red cable and black cable to the inverter connector as shown in Pic 1.1. BATTERY- BATTERY+ BATTERY- BATTERY+ Pic 1.1 Step.3 At the other end of the power cable, connect to the battery as shown Pic 1.2（Ensure that the battery power switch is off）... -
Page 7: Communication Cable Connection
2. Communication Cable Connection Insert inverter end of the CAN cable into the controller at CAN. Insert battery end of the CAN cable into the battery at CAN. (Ensure the correct sequence of wires inside the CAN cable). as shown in Pic 2.1. Pic 2.1... -
Page 8: Set The Dip Switch
3. Set the DIP Switch Set the DIP switch according to the version of 48100R you have, as shown in table below. Version of 48100R ADD setting A and B version C version 4. Start up the System Start up the battery. Firstly, press the power button on, next press the SW red ring button as shown in pic 3.1. -
Page 9: Step1
5.2 There are many items in the sub menu, please set them comply to the inverter manual for the details. The most important parameters setting is the Storage Energy Set, click into the item and choose battery module Pytes. -
Page 10: Step3
0010 Pic 5.2 Step 3. Click the information and check parameters as shown in 5.4. Pic 5.3... -
Page 11: Step4
Step4. Click the Advanced information and check Running Message as shown in 5.4. Pic 5.4 6. System Monitoring ※CAUTION: If you want more details about system monitoring， please check the operating manual of inverters.
