In this manual, we take Solis RHI-5K-48ES-5G as installation sample.

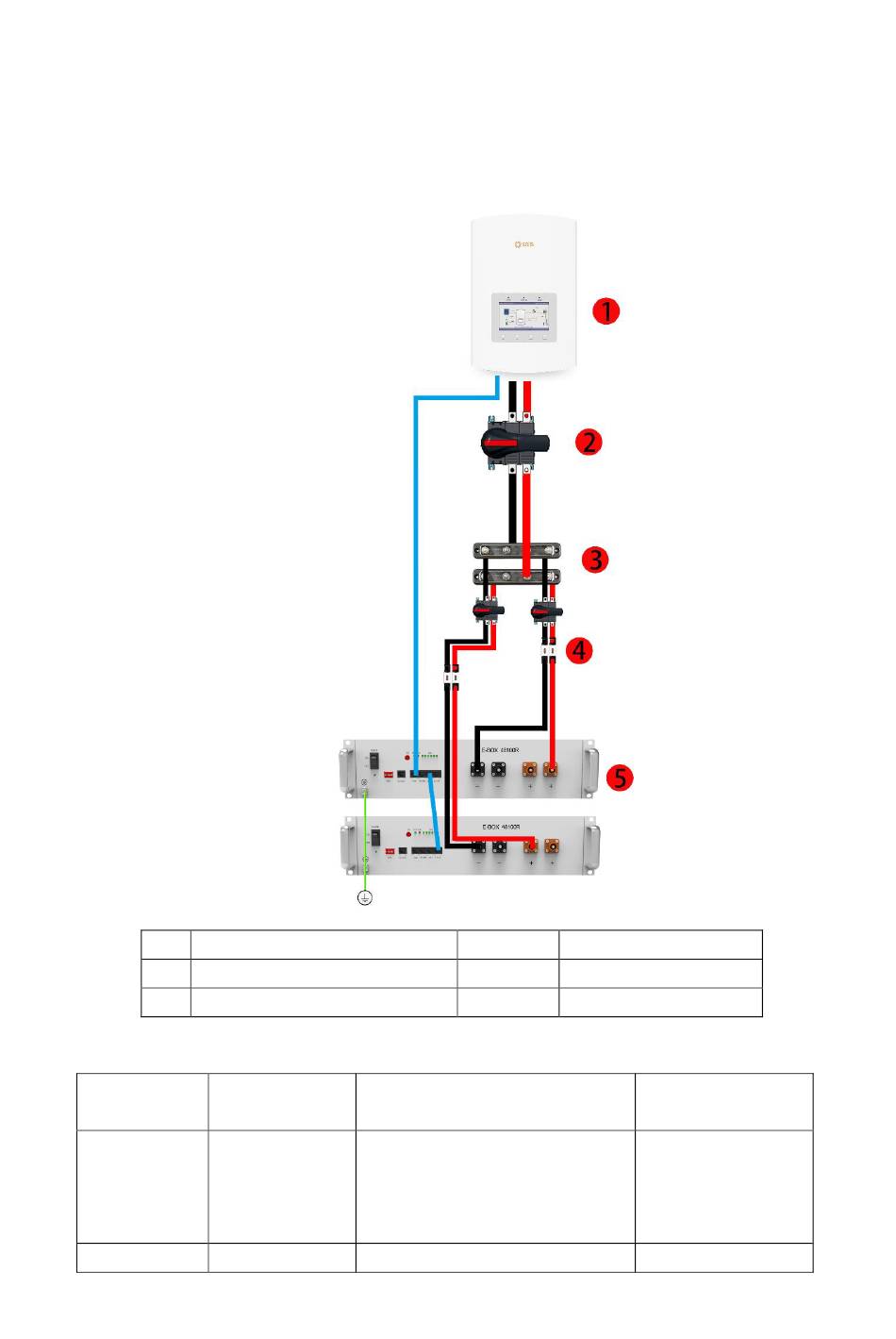

5.1 Preparing Cables
1
Storage Inverter
3
Busbar (Positive+Negative)
5
Pytes Battery
Cables prepared by the customer
No.
Battery power
1
cable (Battery
to Fuse)
2
Battery power
Cable
4AWG;
Current: 100A
Terminal: Amphenol*1+M8*1
2 pairs (Positive+Negative)
4AWG;
Shanghai Pytes Energy Co., Ltd
2
DC Isolator
4
Fuse (150A)
Recommended
Specifications
Source
Pytes or other
third party
Pytes or other
